Computer Connector: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse, 2004 Dodge Stratus, and 2004 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

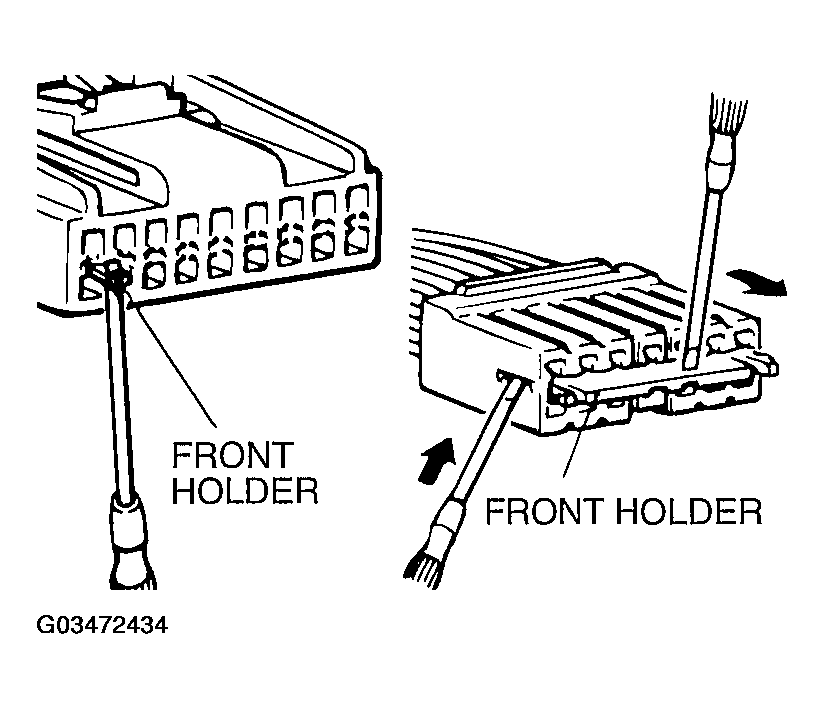

Insert a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure, disengage front holder, and remove it.

Fig 1: Disengaging Front Holder With Screwdriver
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Push the harness wire of the terminal to be repaired deep into the connector from the harness side and hold it there.

Fig 2: Pushing Harness Wire Of Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the tip of the screwdriver [1.4 mm (0.06 inch) width] into the connector as shown in the figure, raise the housing lance slightly with the tip, and pull out the terminal.

Fig 3: Inserting Tip Of Screwdriver Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert a needle through the hole provided on the terminal and raise the contact point. Lightly squeeze the outer edge so the flats are parallel with the bottom.

Fig 4: Inserting Needle Through Hole
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
