Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING and PASSENGER-SIDE AIR BAG MODULE .

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.

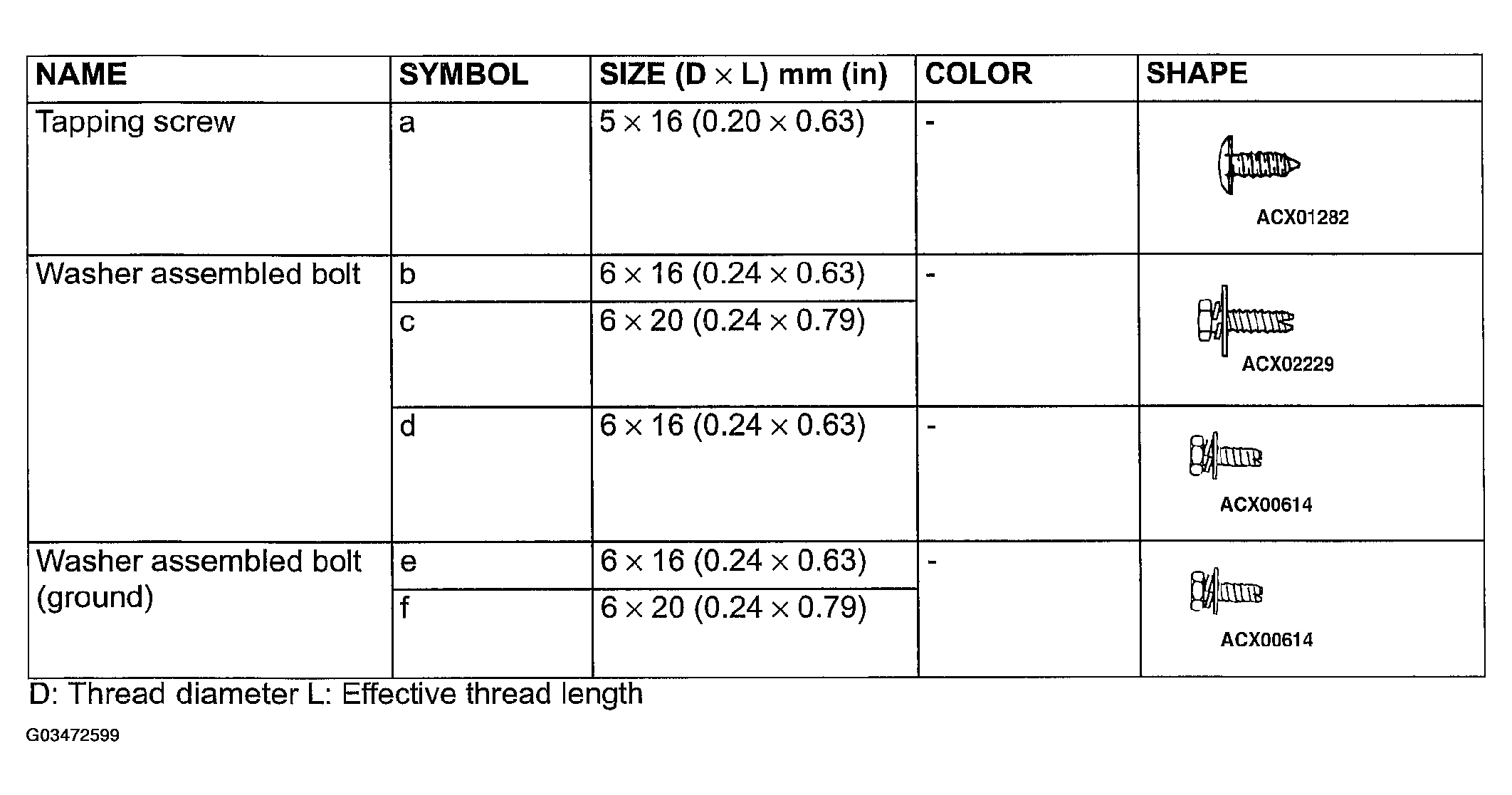

Fig 1: Bolts And Screws Specification Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

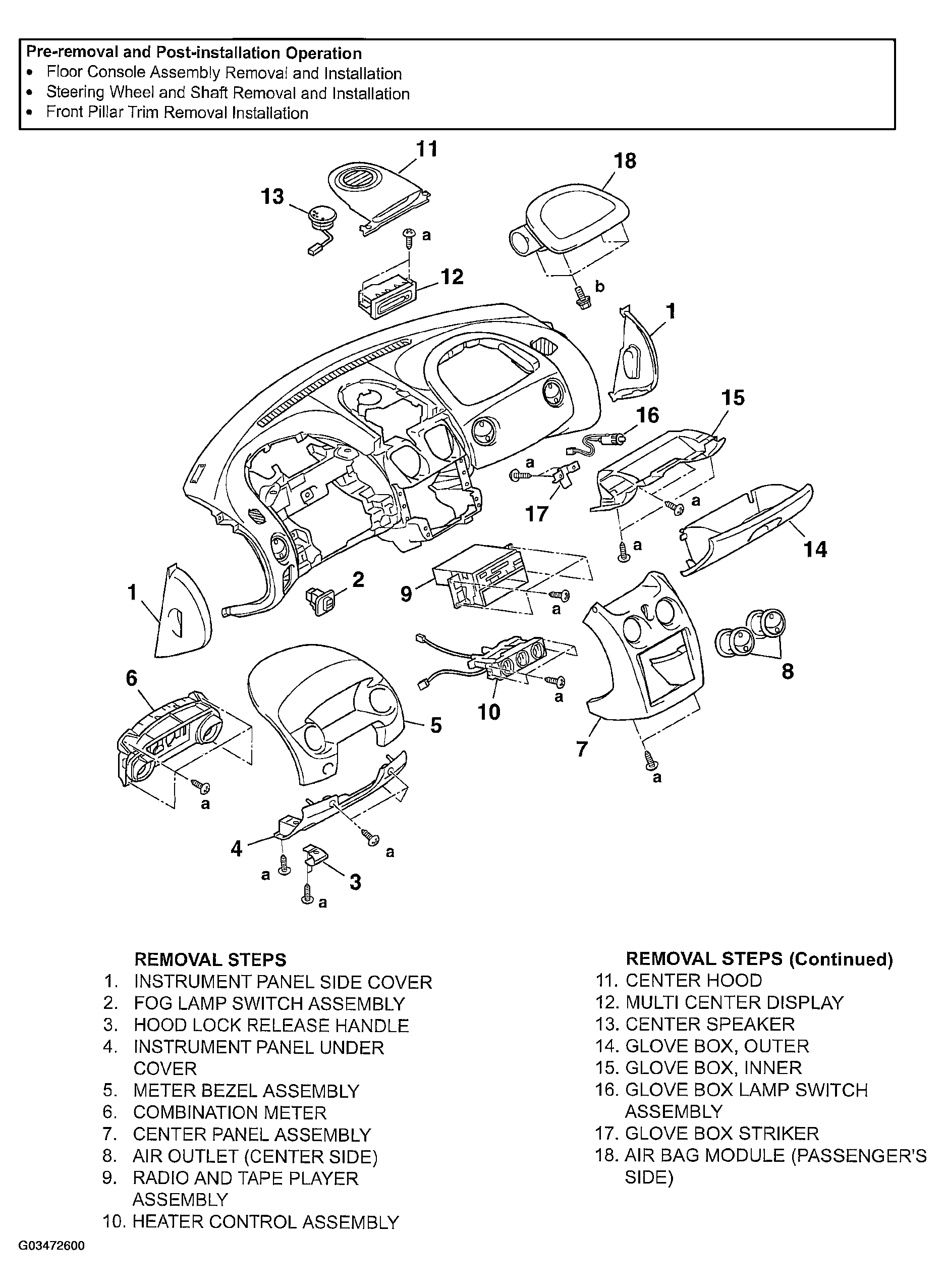

Fig 2: Removing And Installing Instrument Panel Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

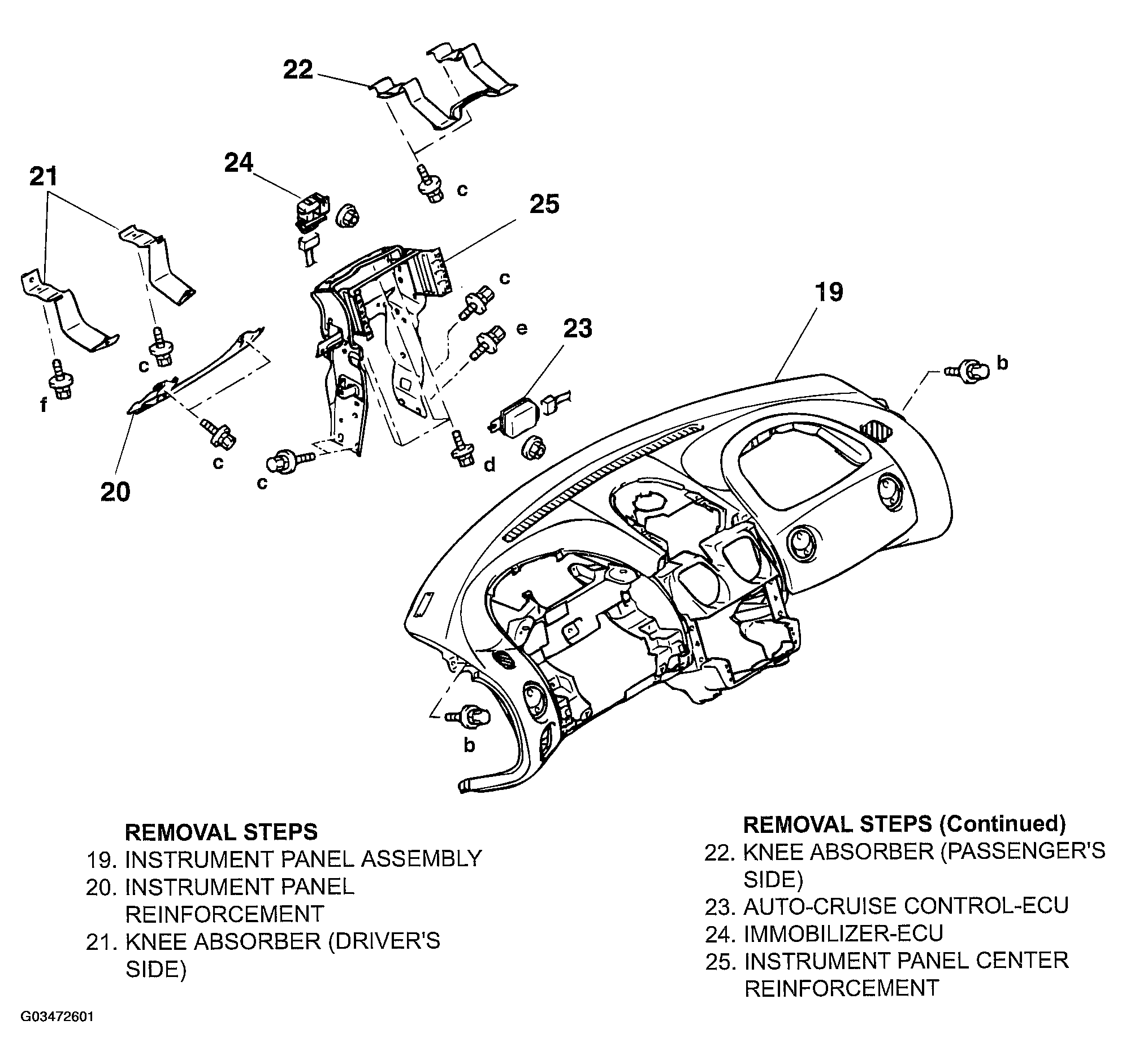

Fig 3: Removing And Installing Instrument Panel Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
