Section 74 (Simplified Wiring System (SWS))
›
Symptom Procedures
›
Keyless Entry System
›
Inspection Procedure E-1: Keyless Entry System: Keyless Entry System Does Not Operate.
›
Transmitter Input Circuit
Transmitter Input Circuit
WARNING:
This page is about a different car, the 2004 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

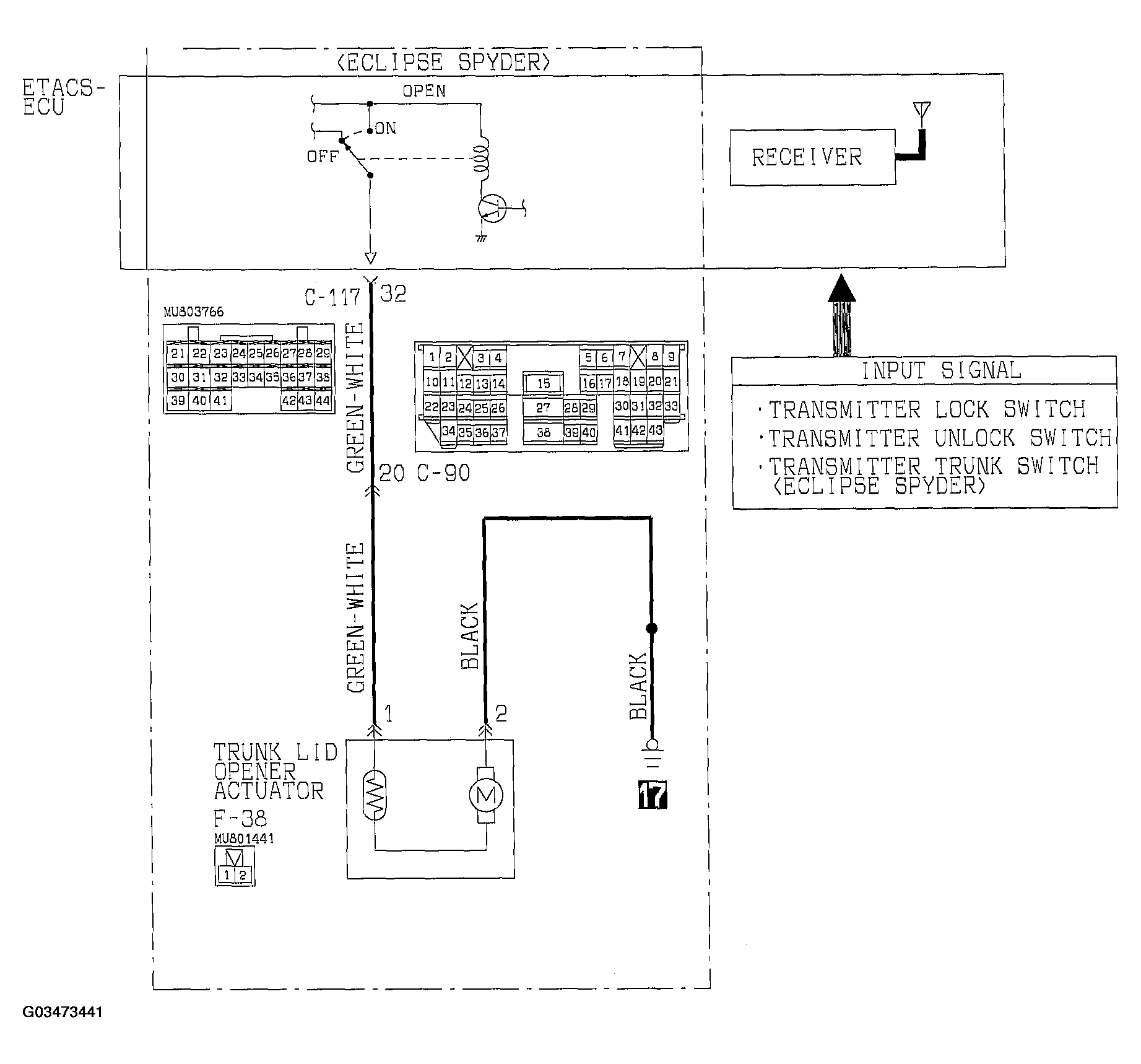

Fig 1: View Of Transmitter Input Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
