How To Use SWS Monitor

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as follows.

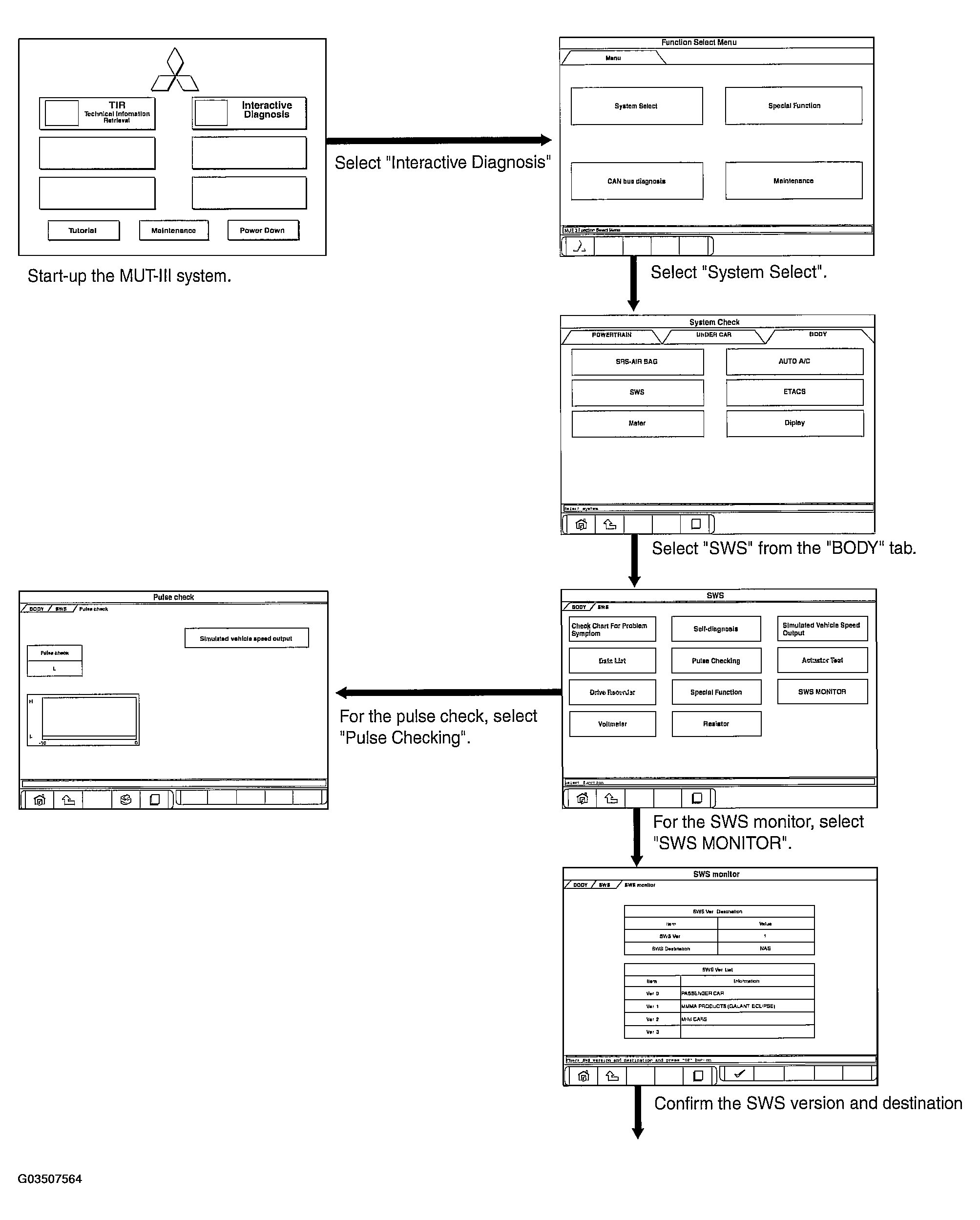

Fig 1: Displaying SWS Flow Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

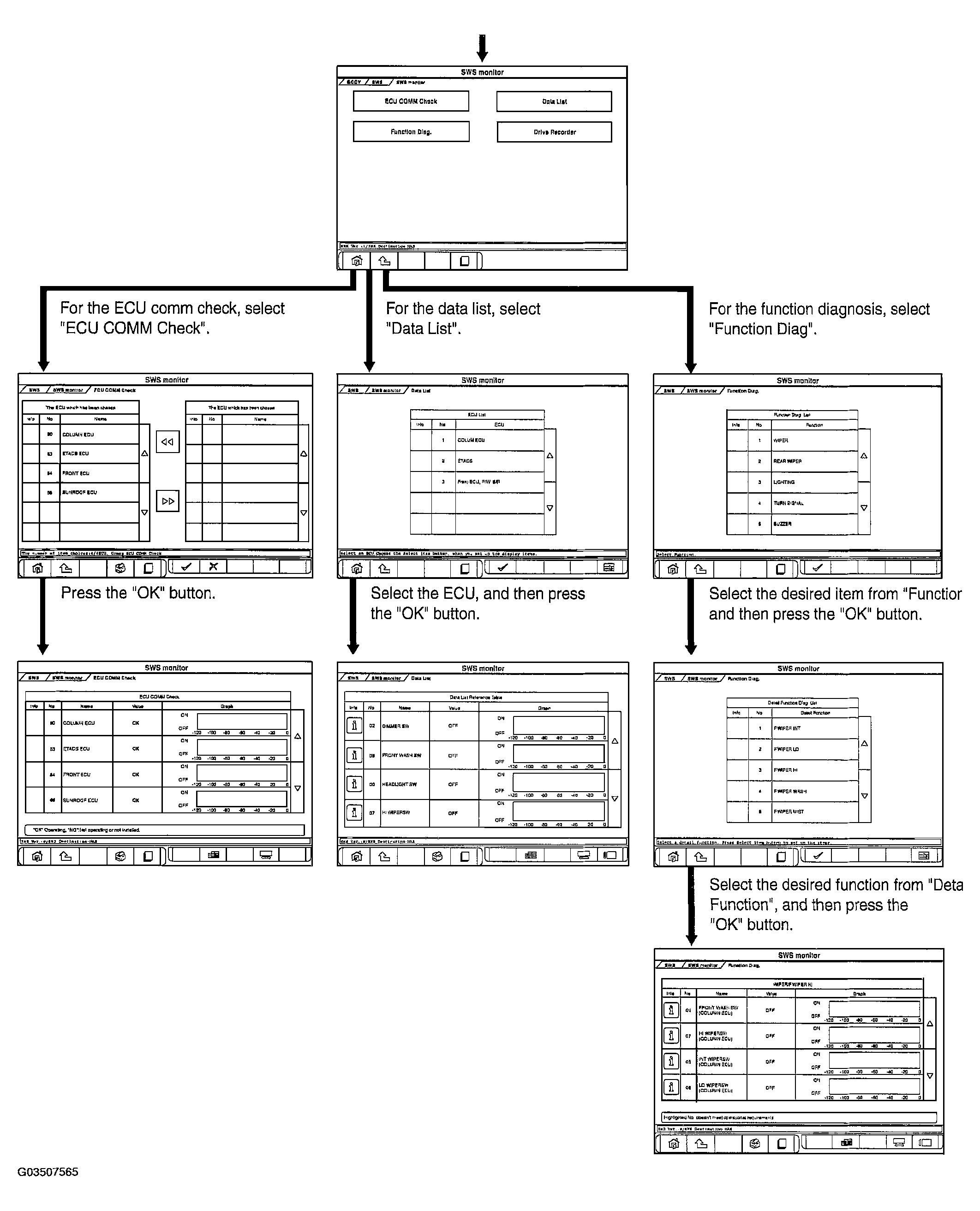

Fig 2: Displaying SWS Flow Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
