Section 81 (Simplified Wiring System (SWS))
›
Symptom Procedures
›
Power Windows
›
Inspection Procedure D-2: Power Window: The Power Window Timer Function Does Not Work Normally.
›
Power Window Timer Function Circuit
Power Window Timer Function Circuit
WARNING:
This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

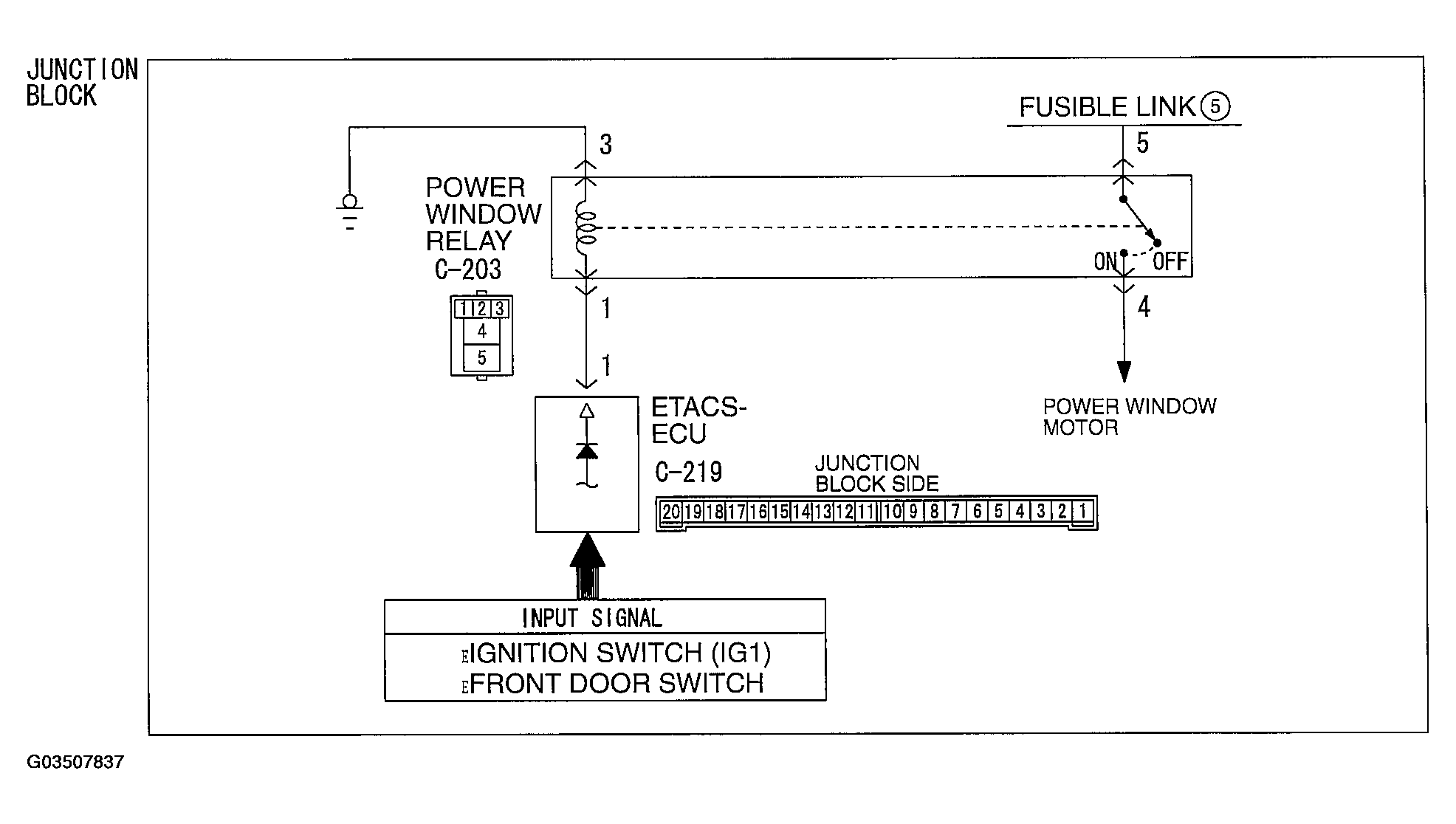

Fig 1: View Of Power Window Timer Function Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
