Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Never disassemble the terminal assembly. It cannot be resembled.

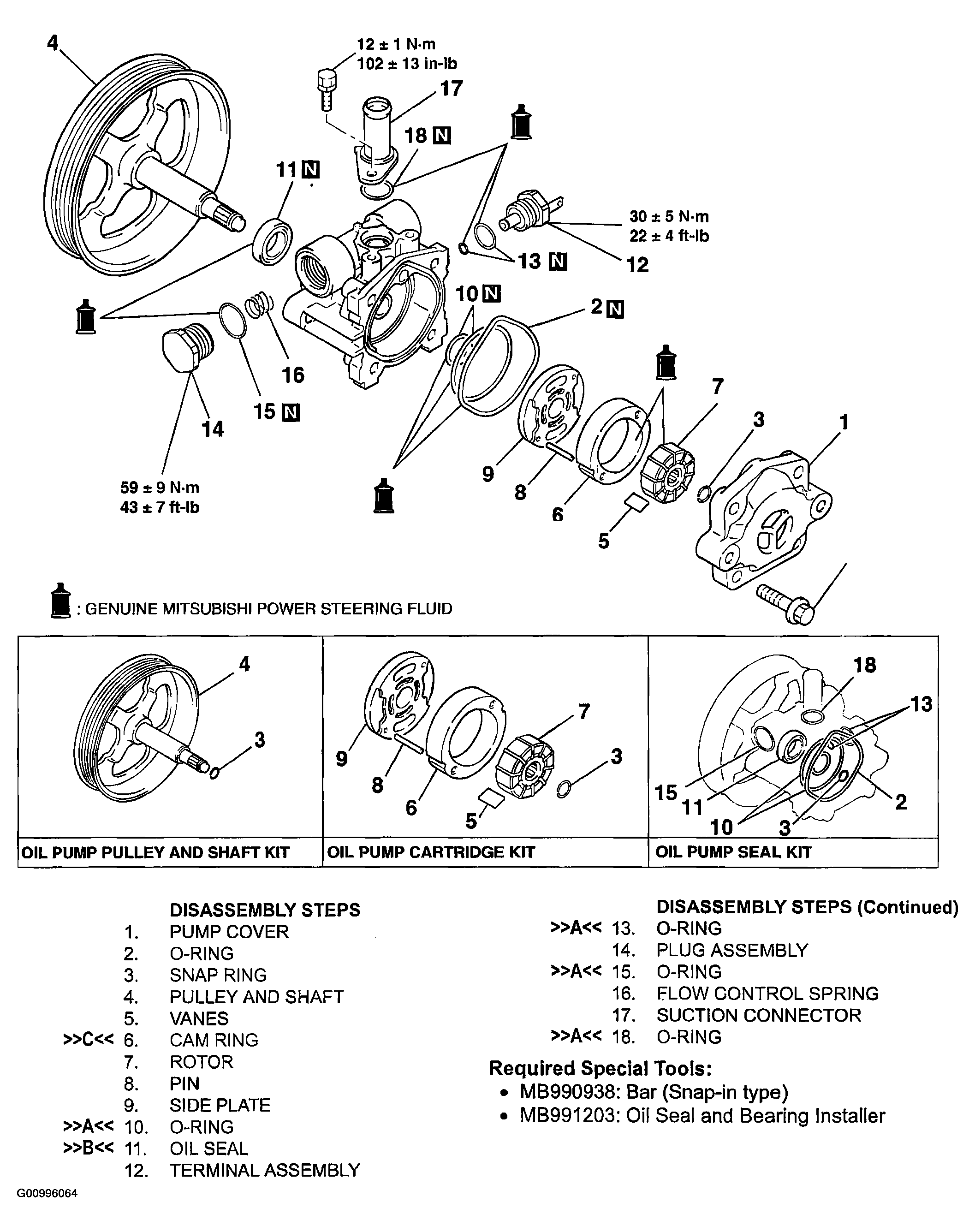

Fig 1: Exploded View Of Power Steering Oil Pump Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
