Inspection Procedure 2: Tachometer Does Not Work.: Notes

WARNING: This page is about a different variant/trim than selected.

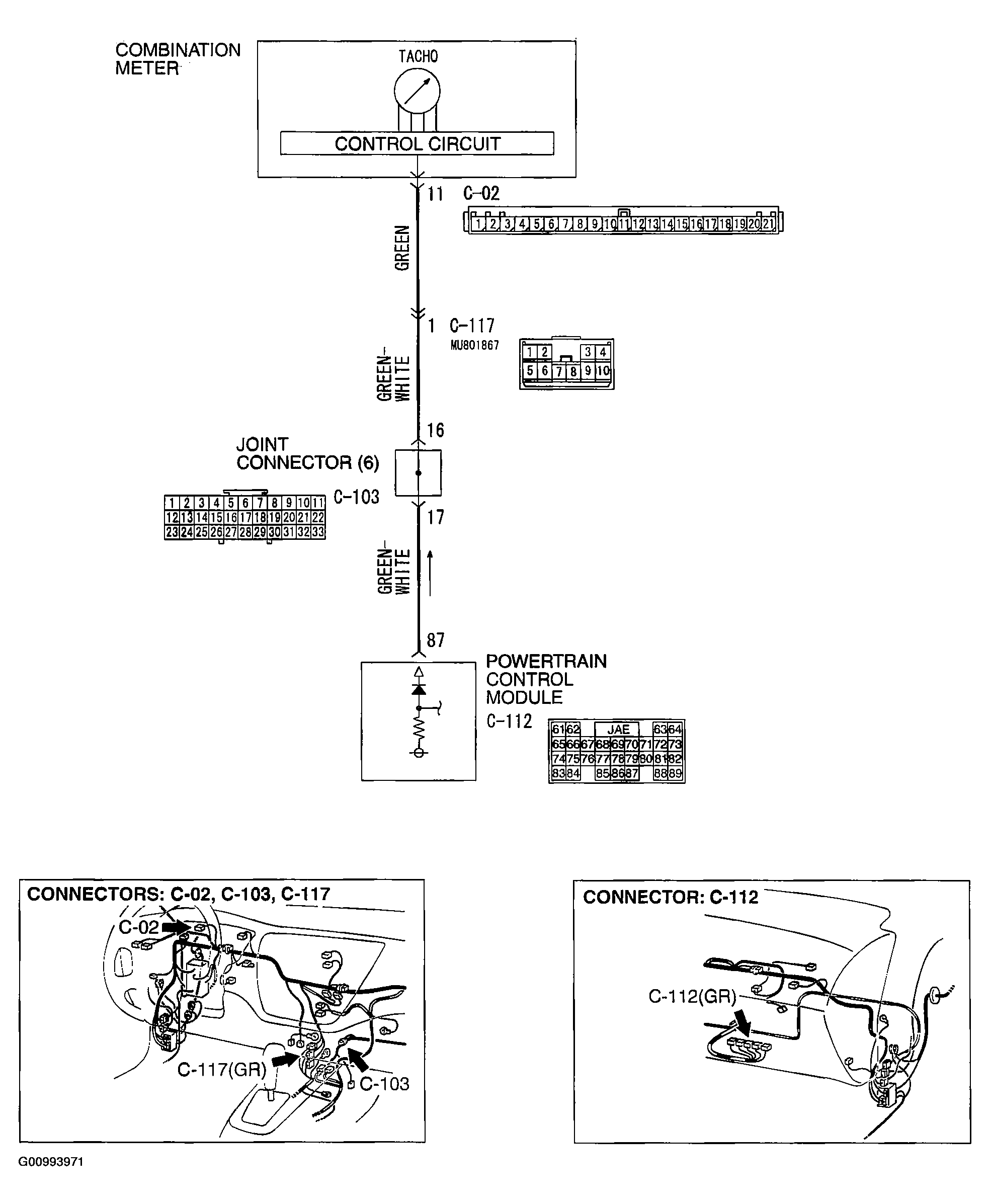

Fig 1: View Of Tachometer Circuit Diagram And Connectors
G00993971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
