Inspection Procedure 5: Combination Meter Does Not Work.: Notes

WARNING: This page is about a different variant/trim than selected.

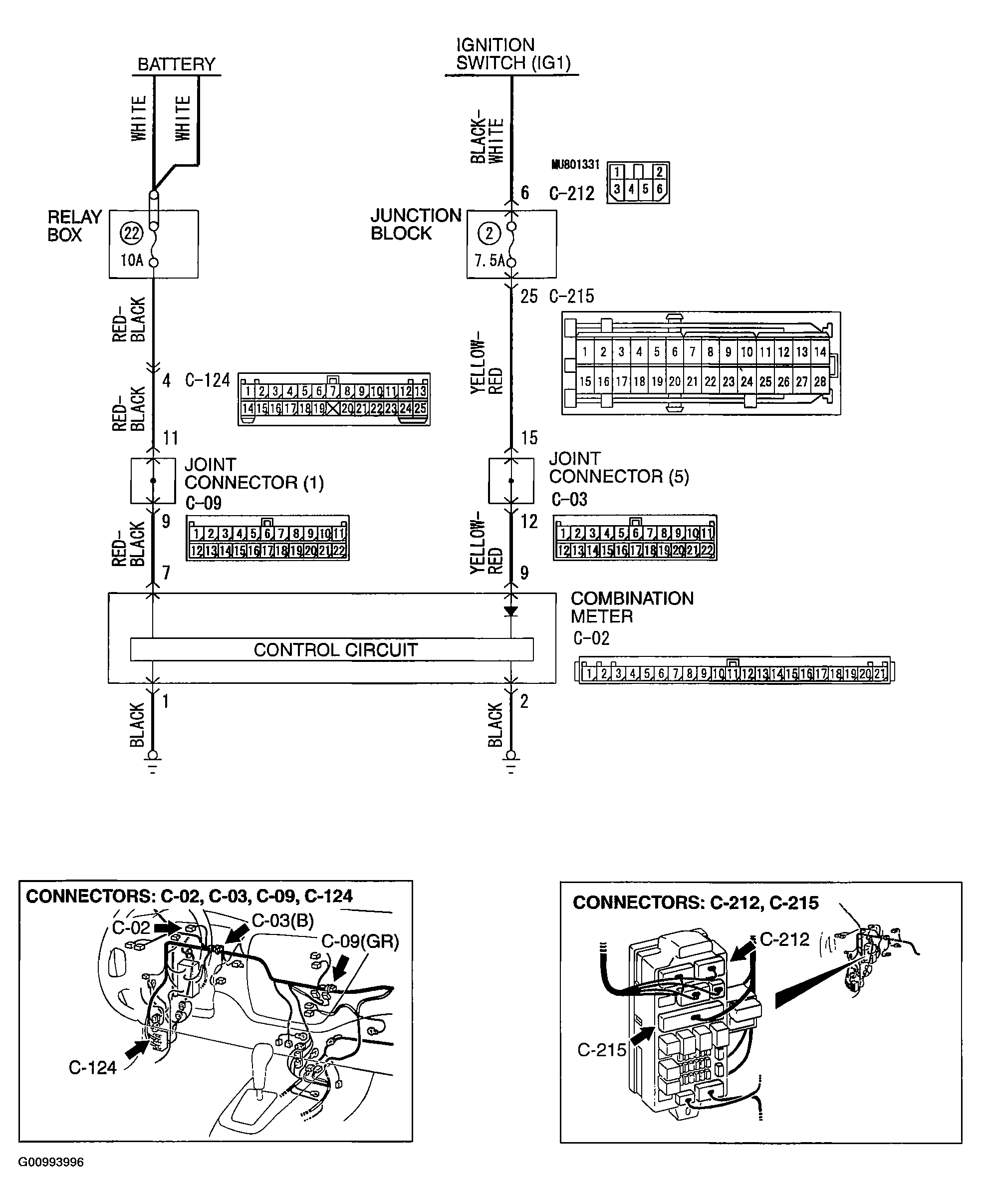

Fig 1: View Of Combination Meter Power Supply Circuit Diagram And Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
