Section 19 (Overhaul - 2.4L (SPORTBACK))
›
Specifications
›
Service Specifications
Service Specifications
WARNING:
This page is about a different variant/trim than selected.

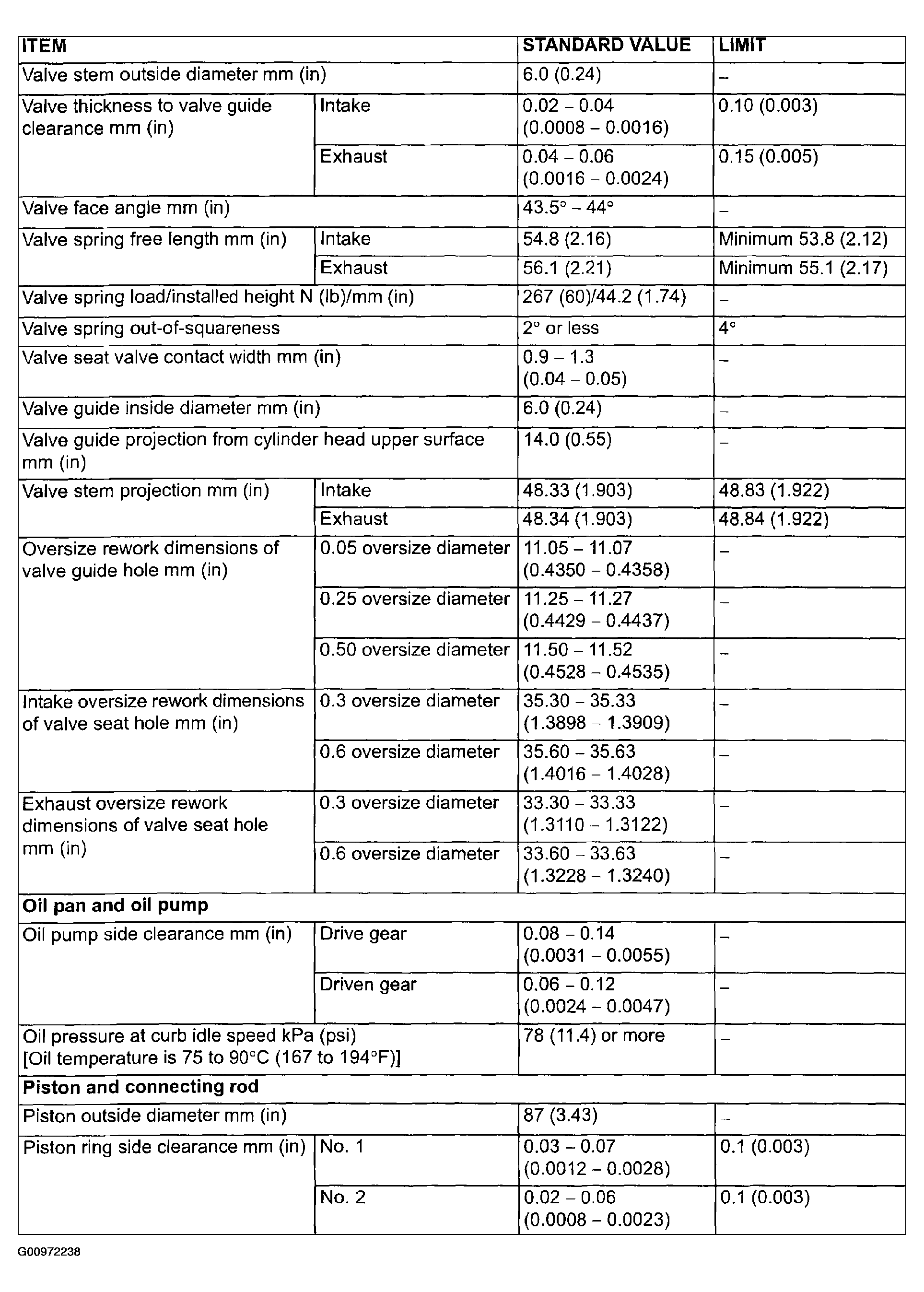

Fig 1: Identifying Service Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

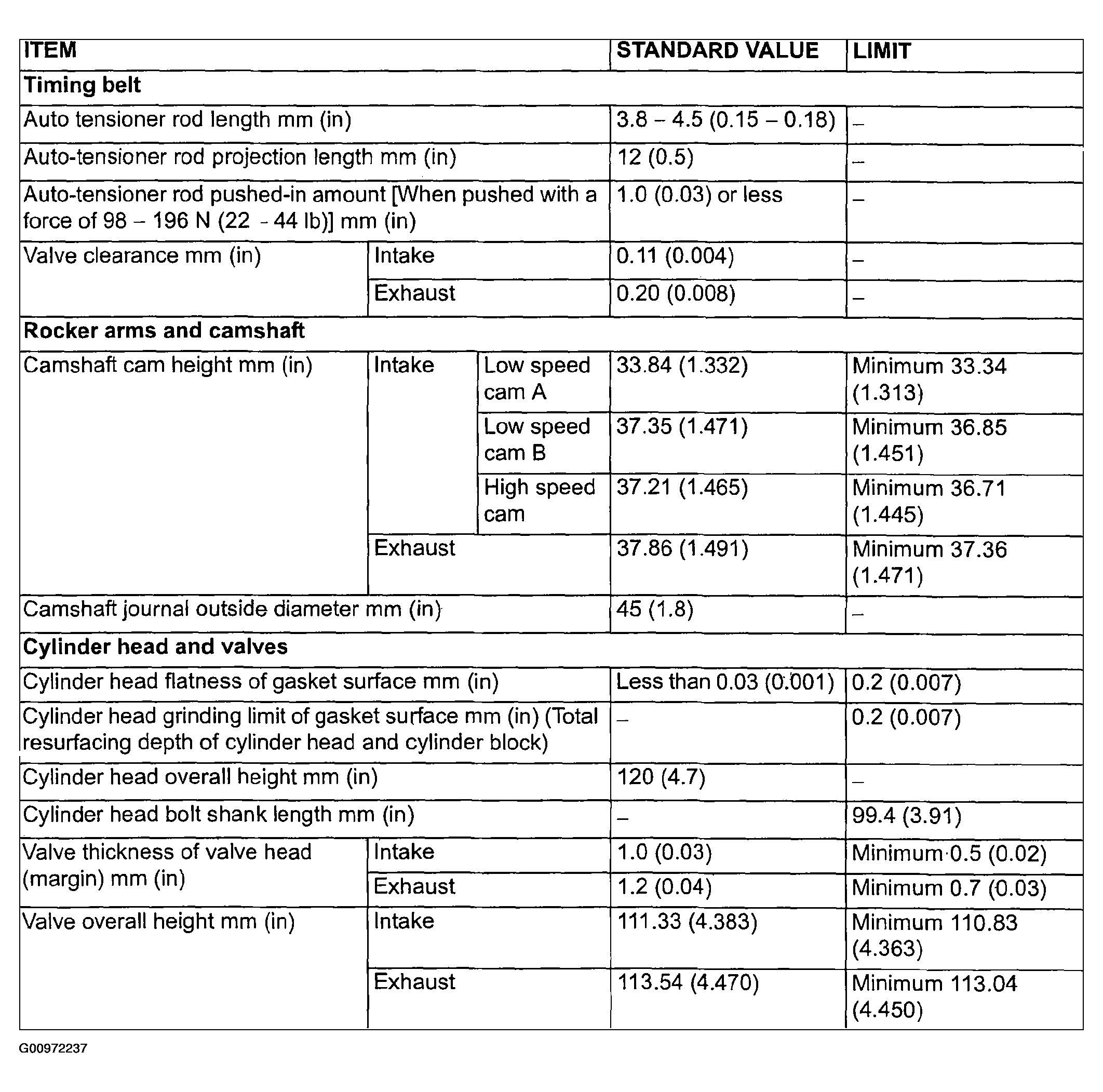

Fig 2: Identifying Service Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

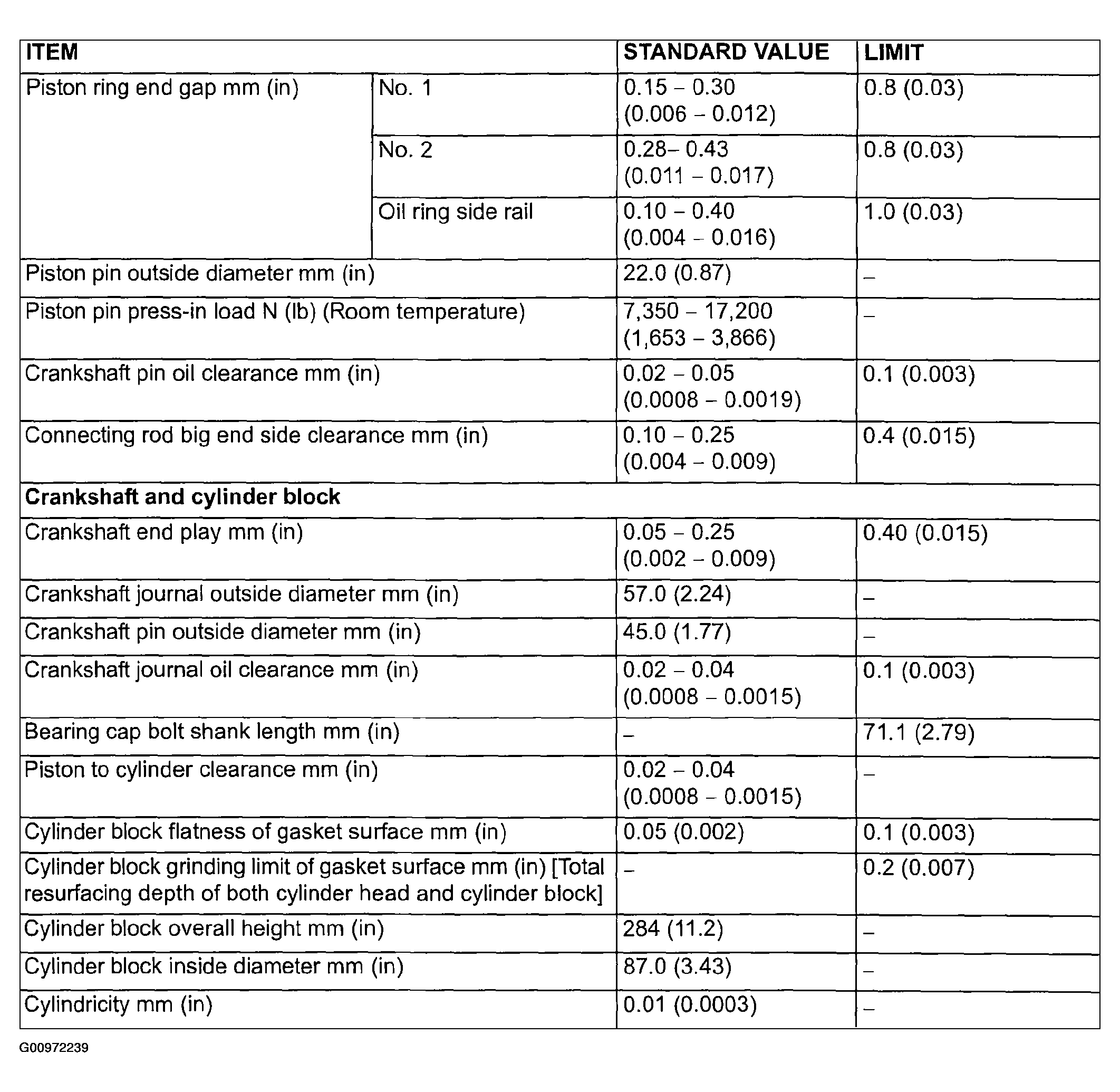

Fig 3: Identifying Service Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
