Fan Control Relay Continuity Check

WARNING: This page is about a different variant/trim than selected.

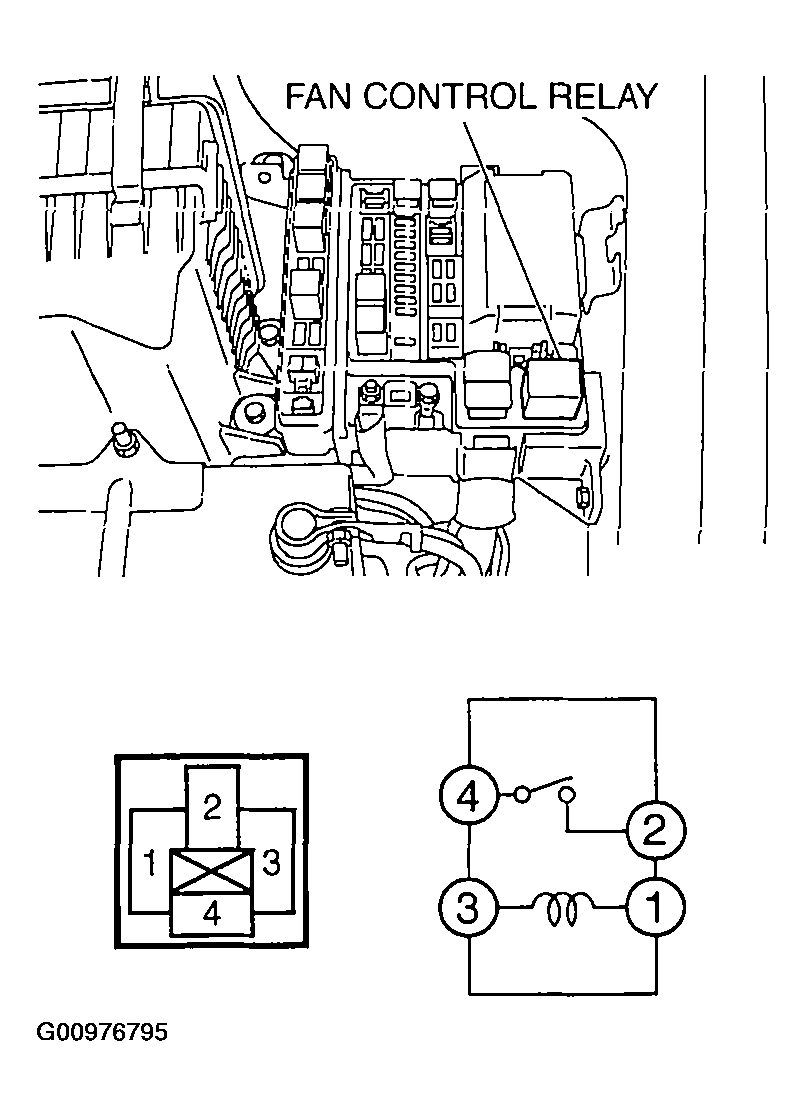

Fig 1: Identifying Fan Control Relay
G00976795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

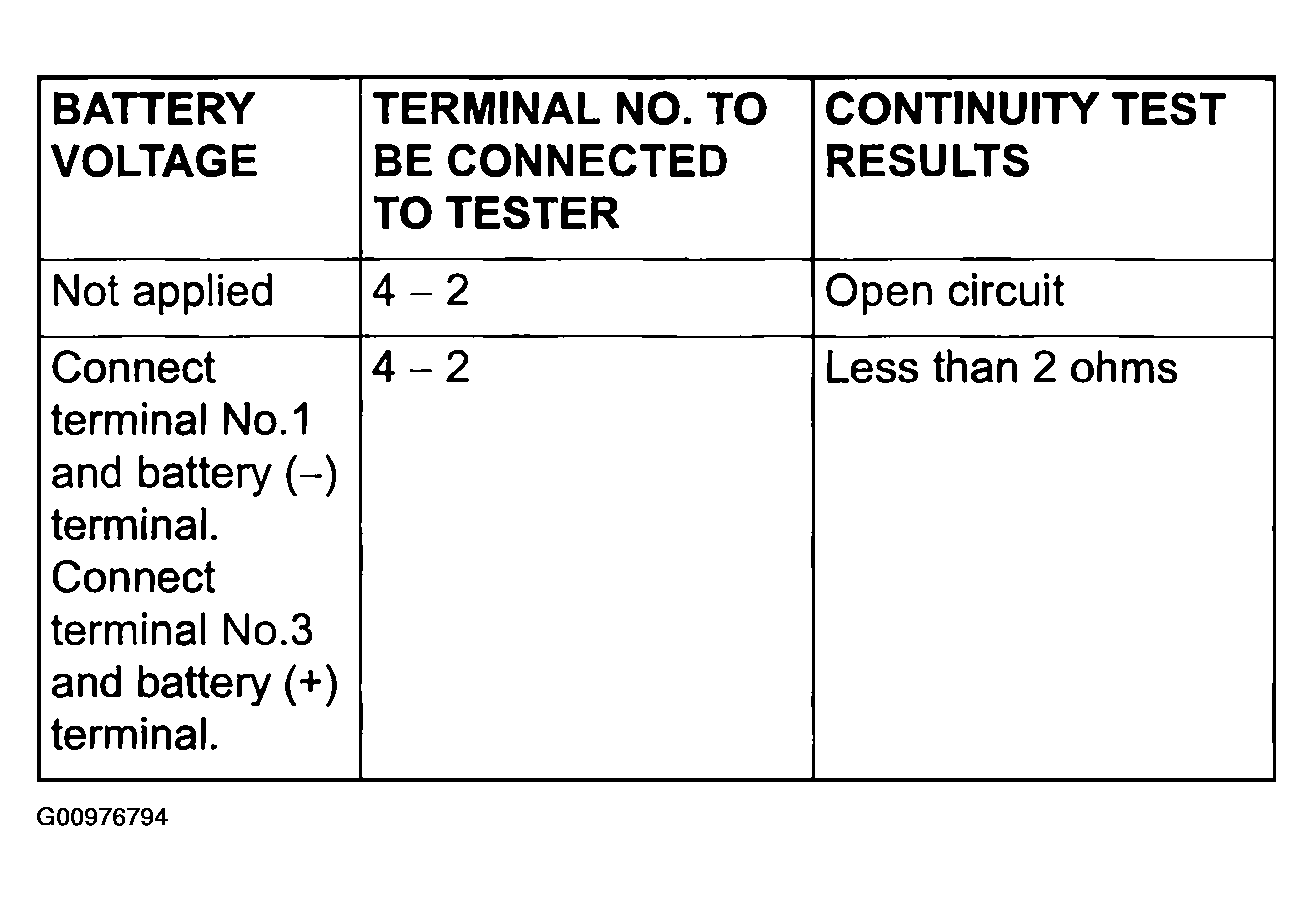

Fig 2: Fan Control Relay Continuity Check Table
G00976794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
