Fan Control Relay Continuity Check

WARNING: This page is about a different variant/trim than selected.

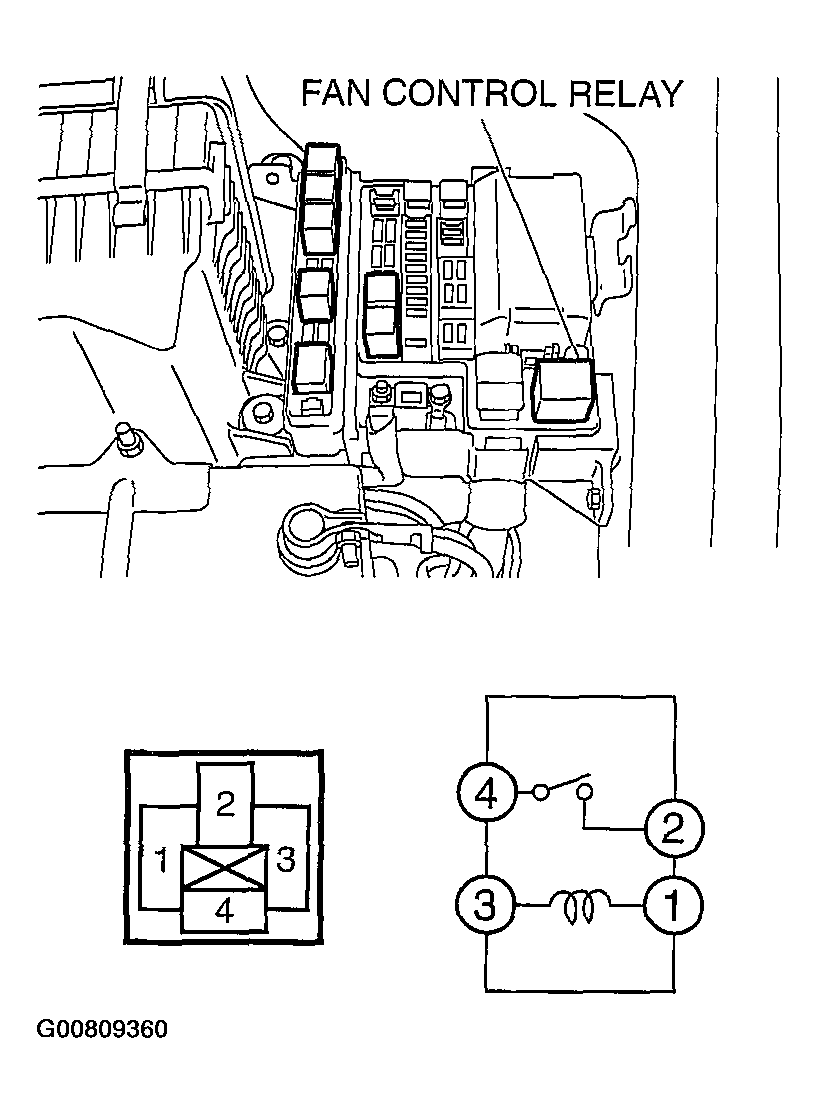

Fig 1: Checking Fan Control Relay Continuity
G00809360Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

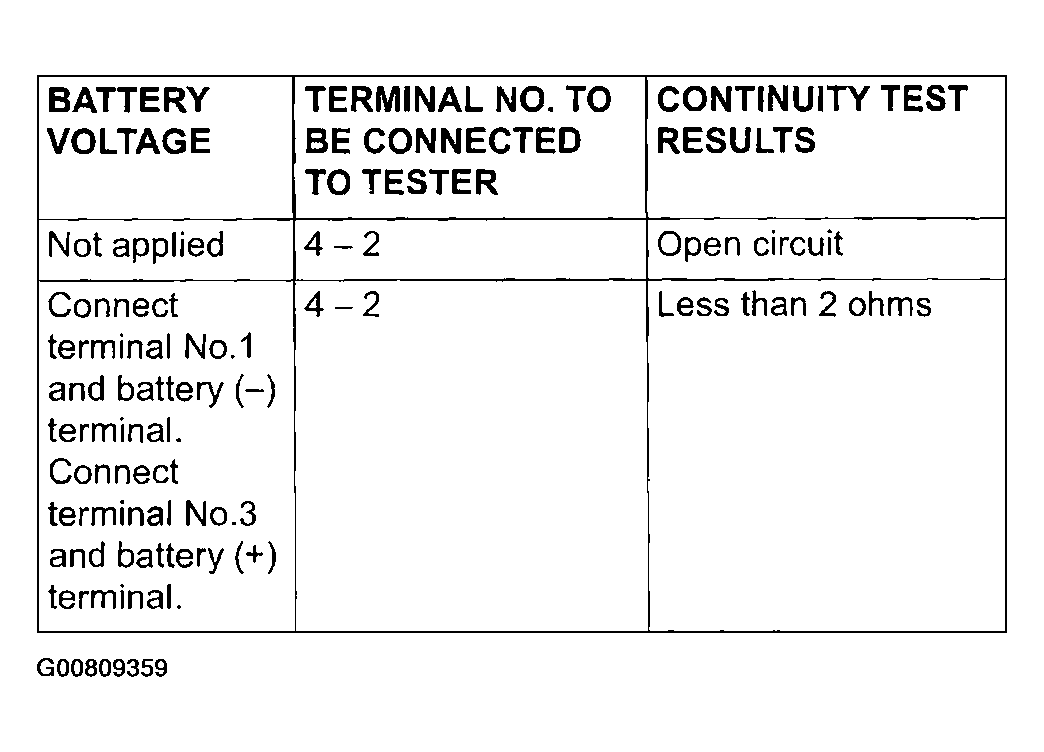

Fig 2: Fan Control Relay Continuity
G00809359Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
