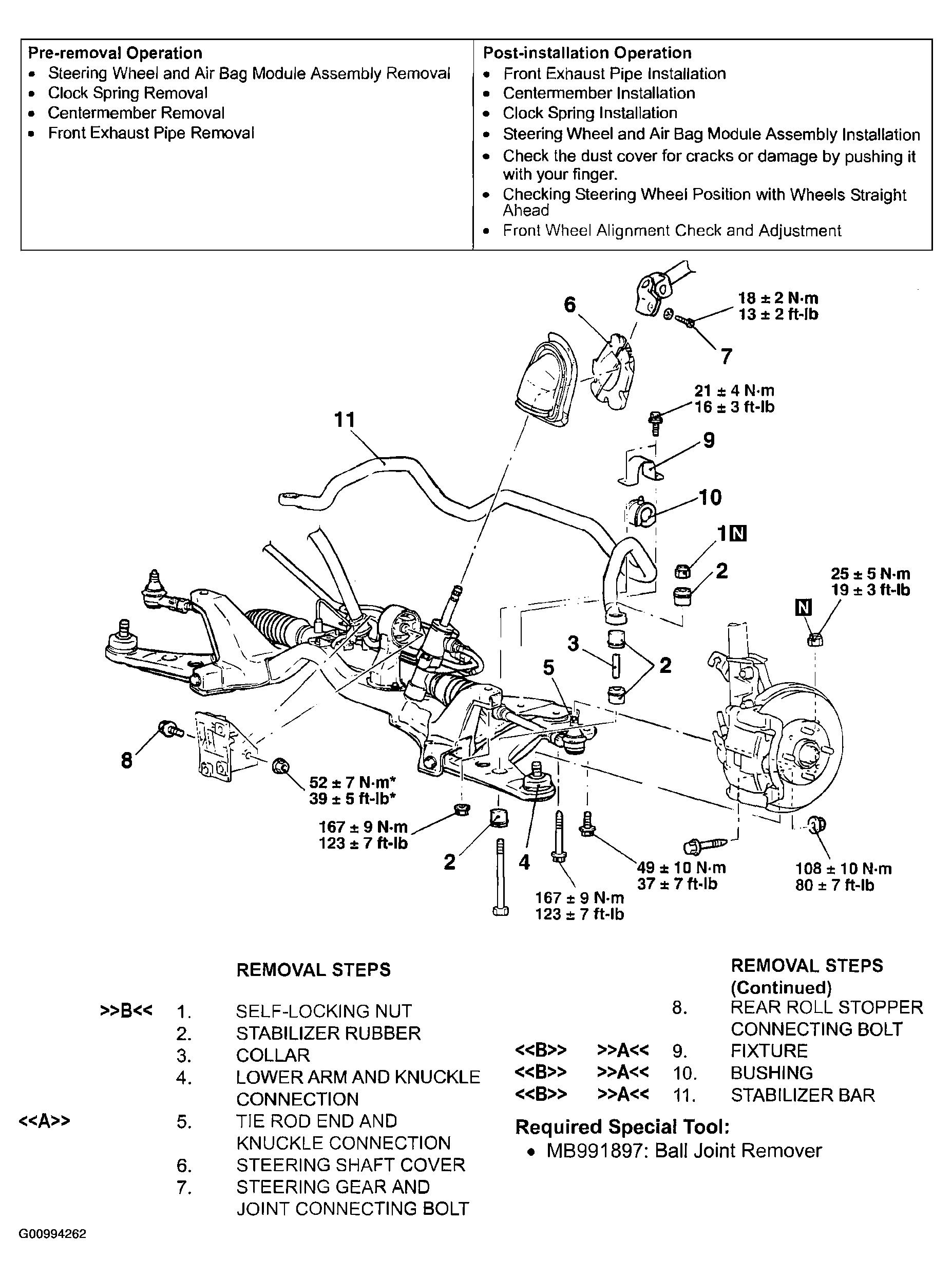

Removal And Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Before removing the steering wheel and air bag module assembly, refer to AIR BAG SAFETY PRECAUTIONSPASSENGER-SIDE AIR BAG MODULE Also, put the front wheels in straight-ahead position. Failure to do so may damage clock spring and render the SRS air bag inoperative, which serious driver injury.
- *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
