Removal And Installation

WARNING: This page is about a different variant/trim than selected.

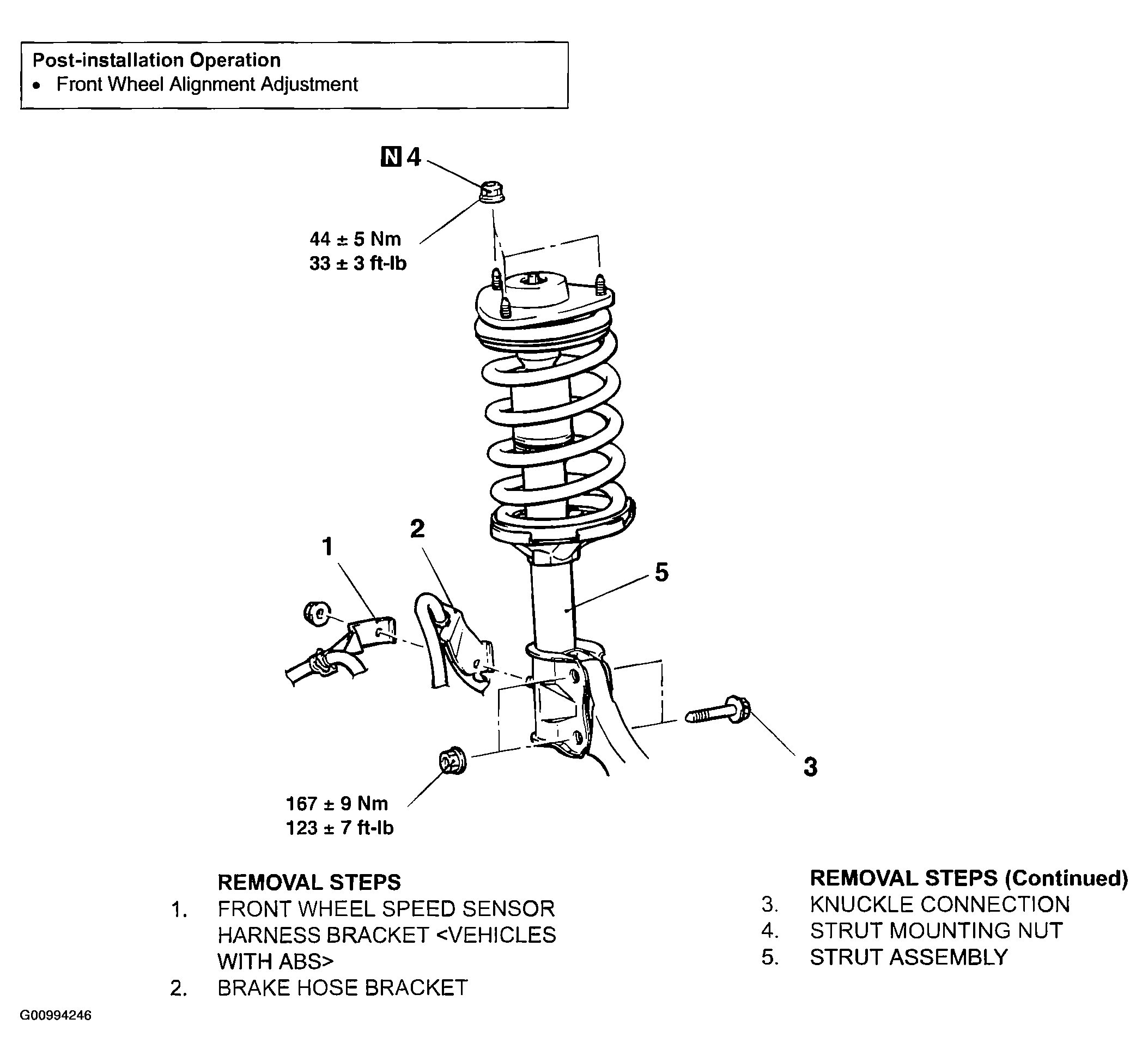

Fig 1: Removing And Installing Strut Assembly
G00994246Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
