Rectangular Waterproof Connector

1. Disengage the front holder with a screwdriver and remove it.

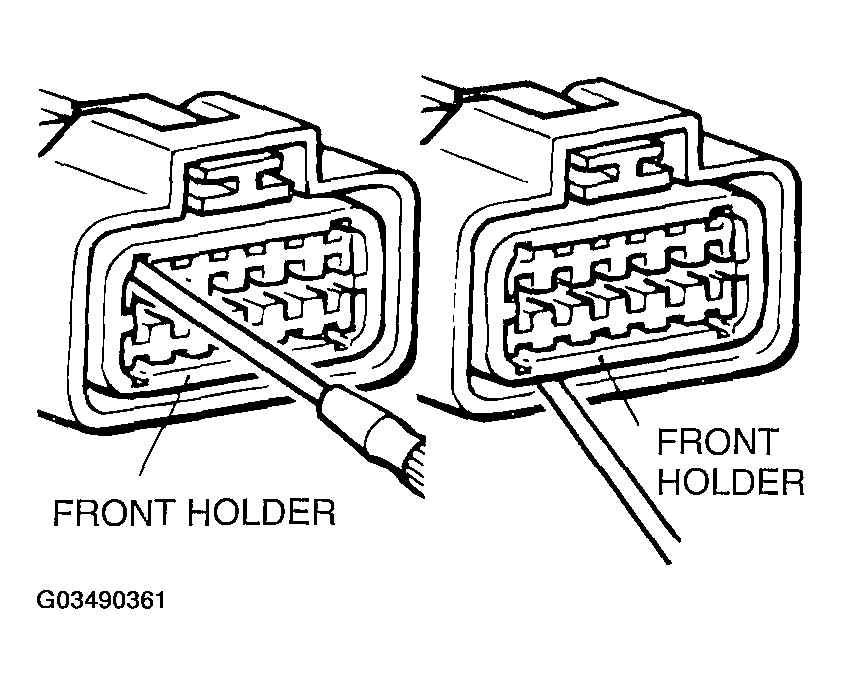

   Fig 1: Removing Front Holder With Screwdriver

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Insert the tip of a screwdriver [0.8 mm (0.03 inch) width] into the connector as shown in the figure, push it lightly to raise the housing lance, and pull out the terminal.
   Fig 2: Removing Terminal Using Screwdriver

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Press the contact point to the male terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure. Lightly squeeze the outer edge so the flats are parallel with the bottom.

Fig 3: Aligning Contact Point With Screwdriver

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
