SCAN TOOL (MUT-III Sub Assembly)

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before disconnecting or connecting the scan tool.

NOTE: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

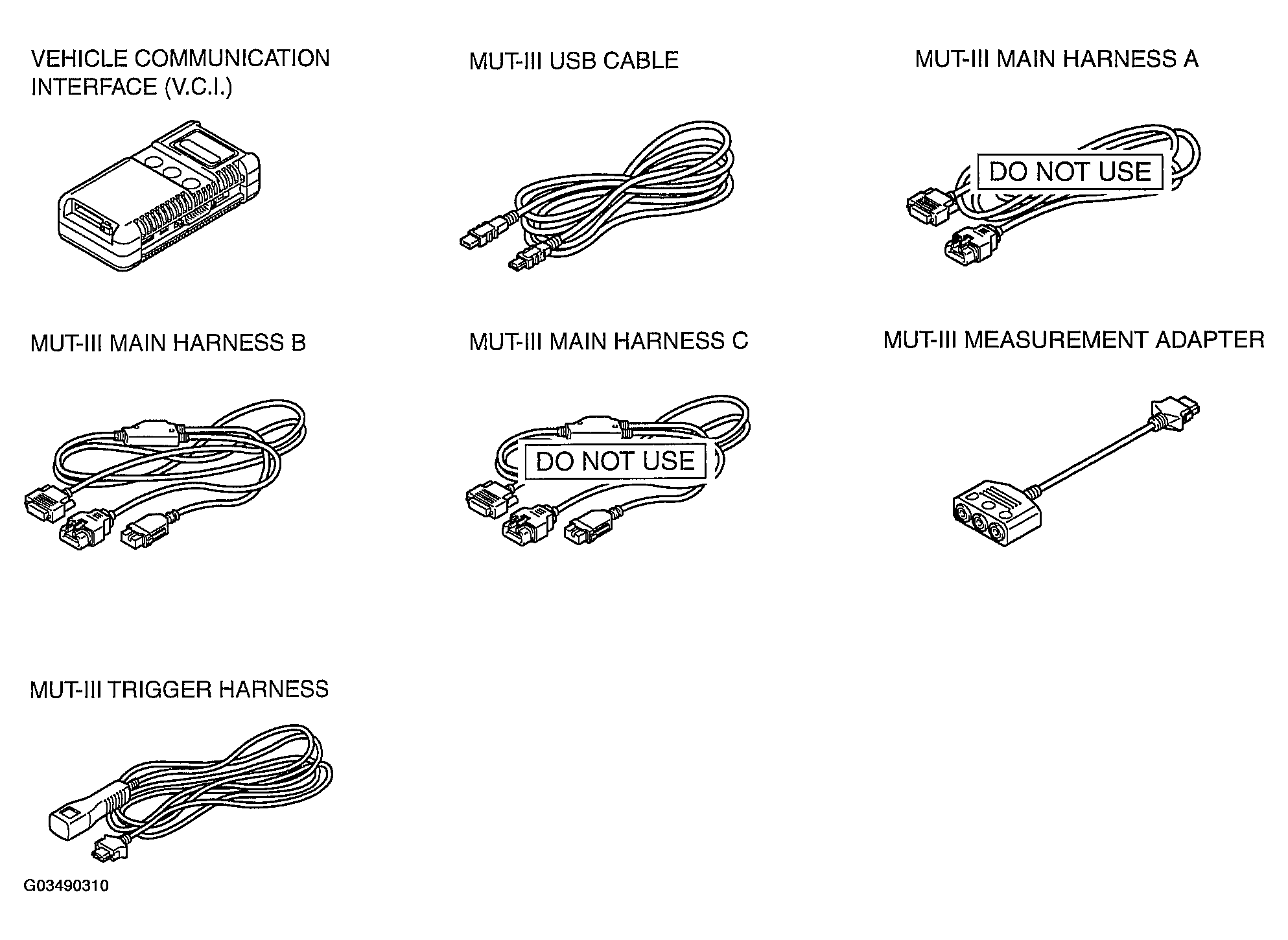

Fig 1: Identifying Scan Tool Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
