Lubrication And Sealing Points

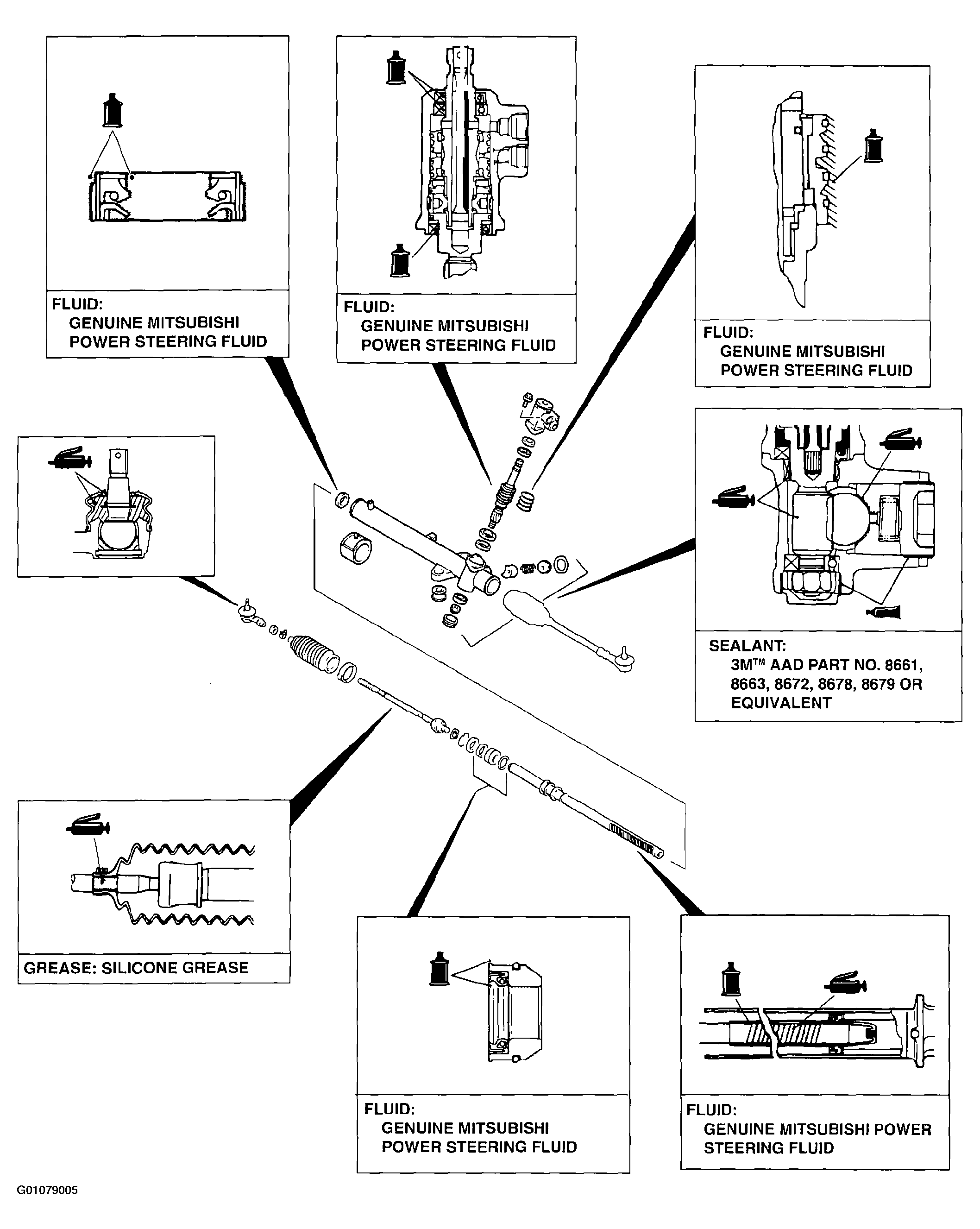

Fig 1: Identifying Lubrication And Sealing Points

G01079005

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
