Power Steering - Evolution
›
Power Steering Oil Pump Assembly
›
Disassembly And Assembly
Disassembly And Assembly

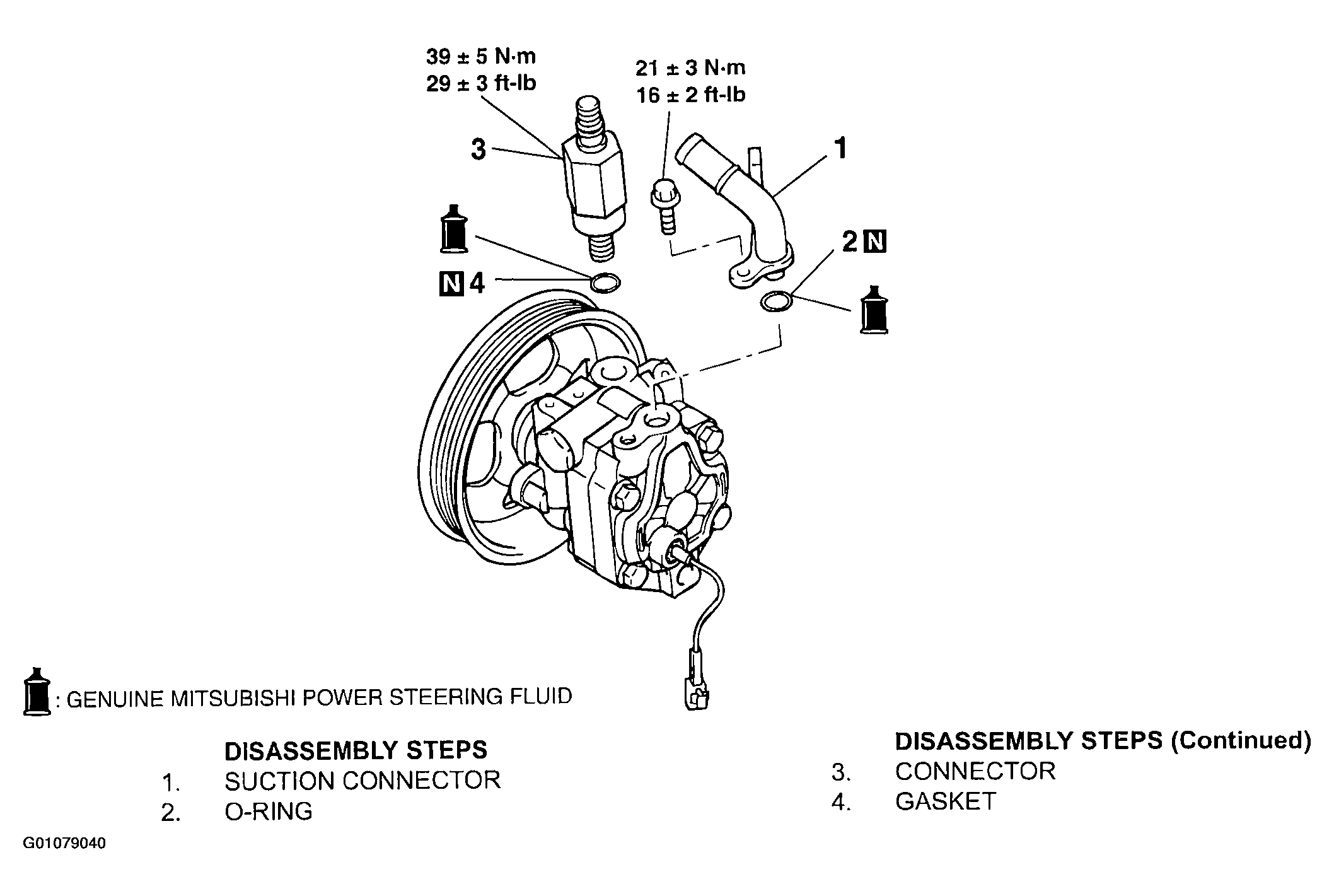

Fig 1: Disassembling Power Steering Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
