Fastener Tightening Specifications

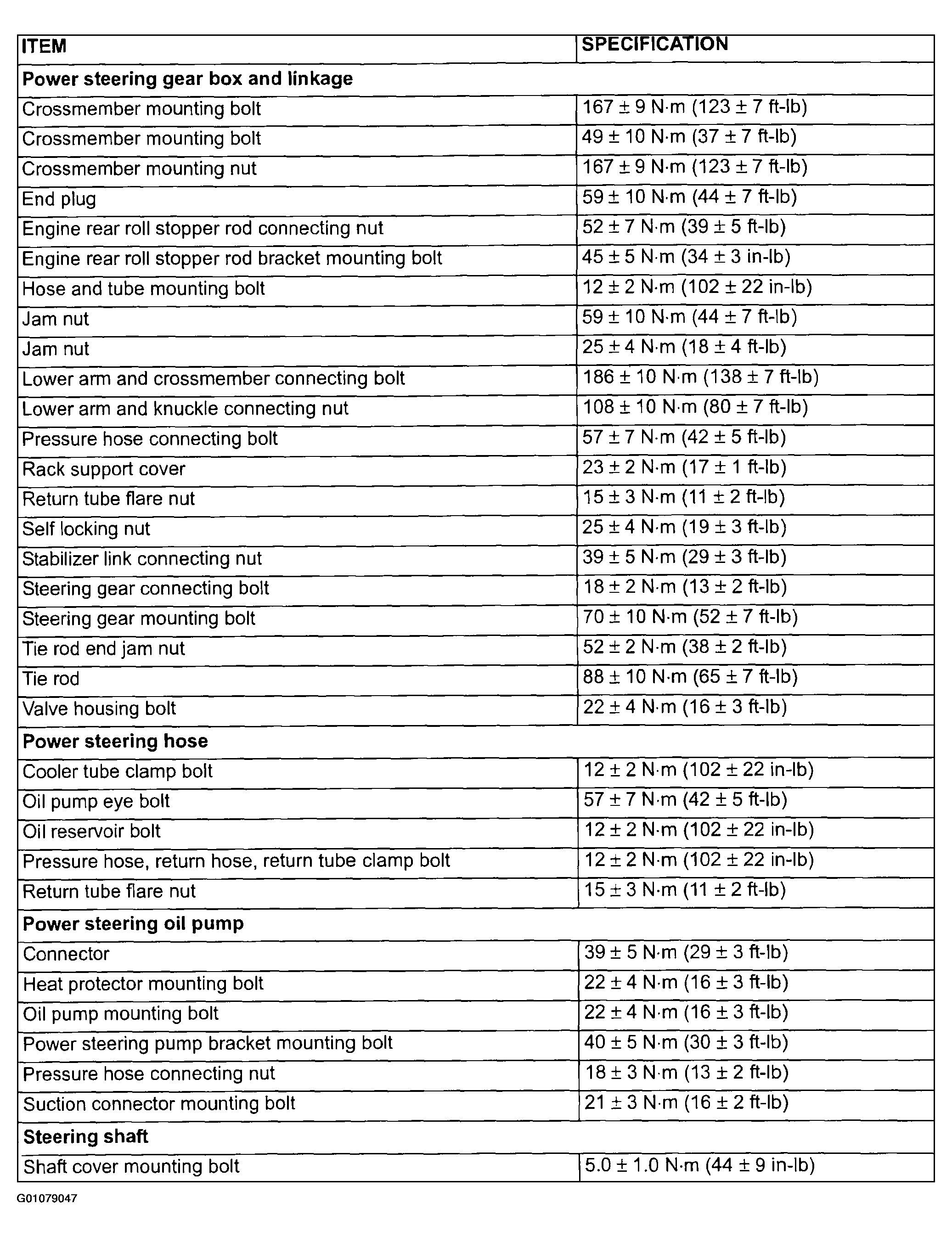

Fig 1: Fastener Fastener Tightening Torque Specifications Table Table Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

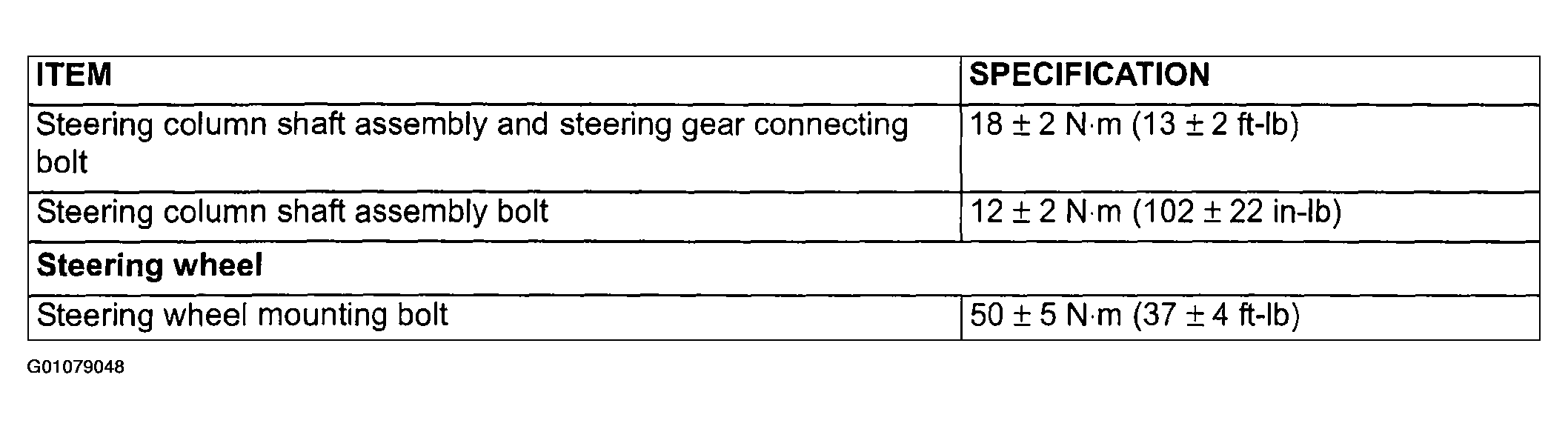

Fig 2: Fastener Fastener Tightening Torque Specifications Table Table Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
