Disassembly And Assembly: Notes

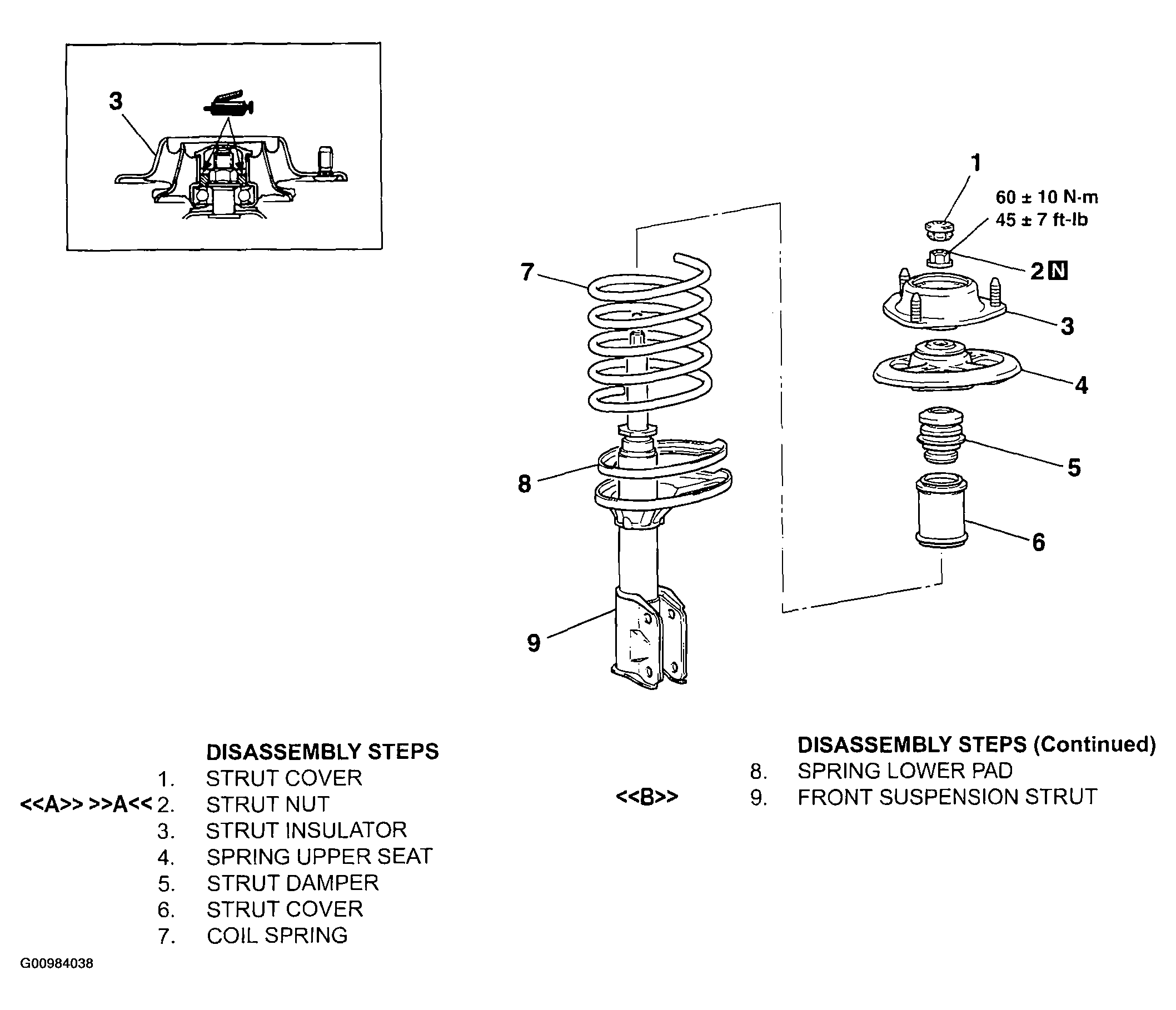

Fig 1: Disassembly & Assembly Of Strut Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991237: Spring Compressor Body
• MB991238: Arm Set
• MB991681: Wrench
• MB991682: Socket
