Strut Assembly
›
Removal And Installation
Removal And Installation

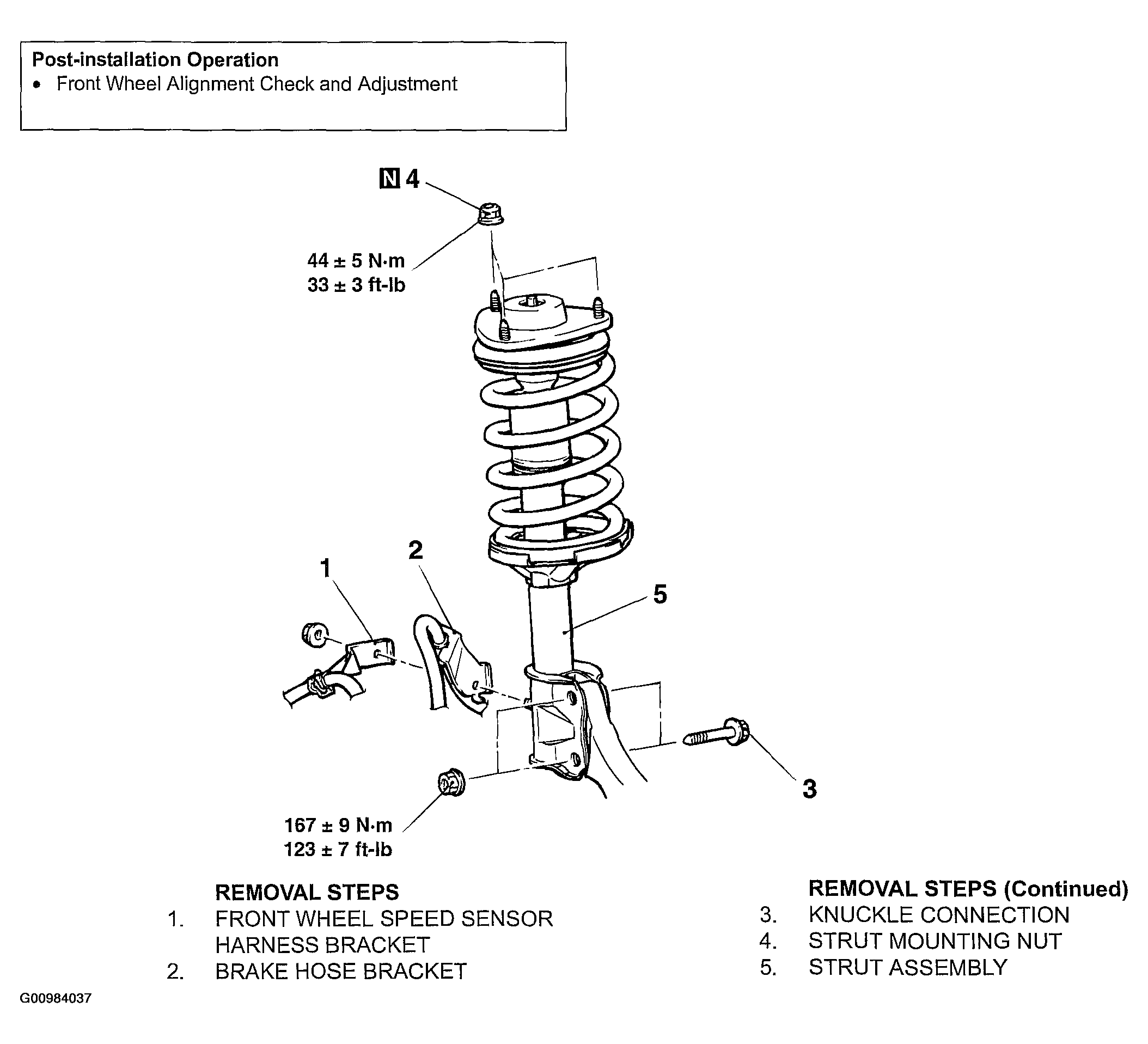

Fig 1: Removal & Installation Of Strut Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
