Removal And Installation: Notes

CAUTION: During maintenance, take care not to contact the parts or tools to the caliper, because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

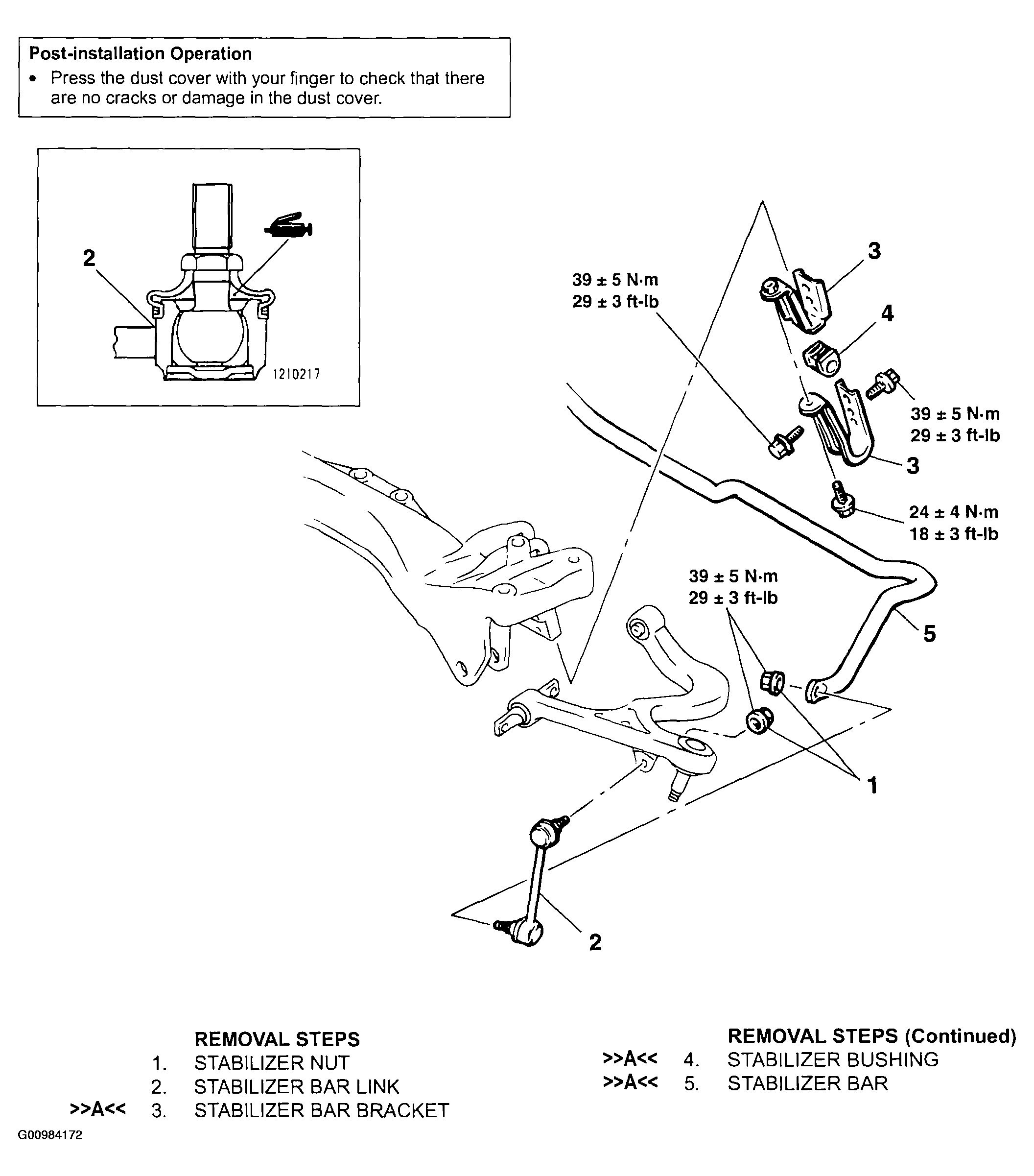

Fig 1: Removing Stabilizer Bar

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
