Removal And Installation: Notes

CAUTION:

During maintenance, take care not to contact the parts or tools to the caliper, because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe out quickly.
*: To prevent bushings from breakage, the parts indicated by * should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

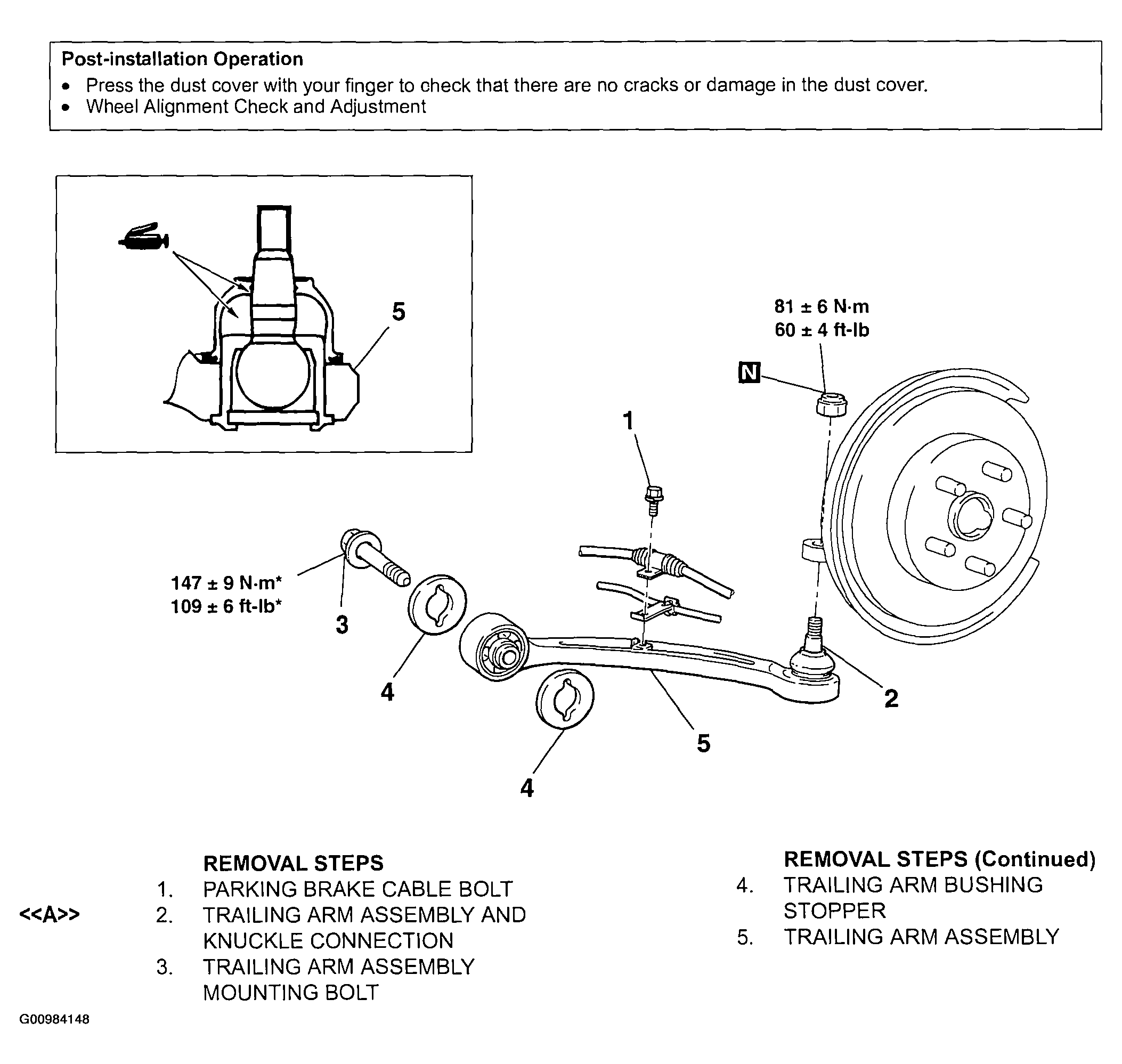

Fig 1: Removing Trailing Arm

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
