Components And Function

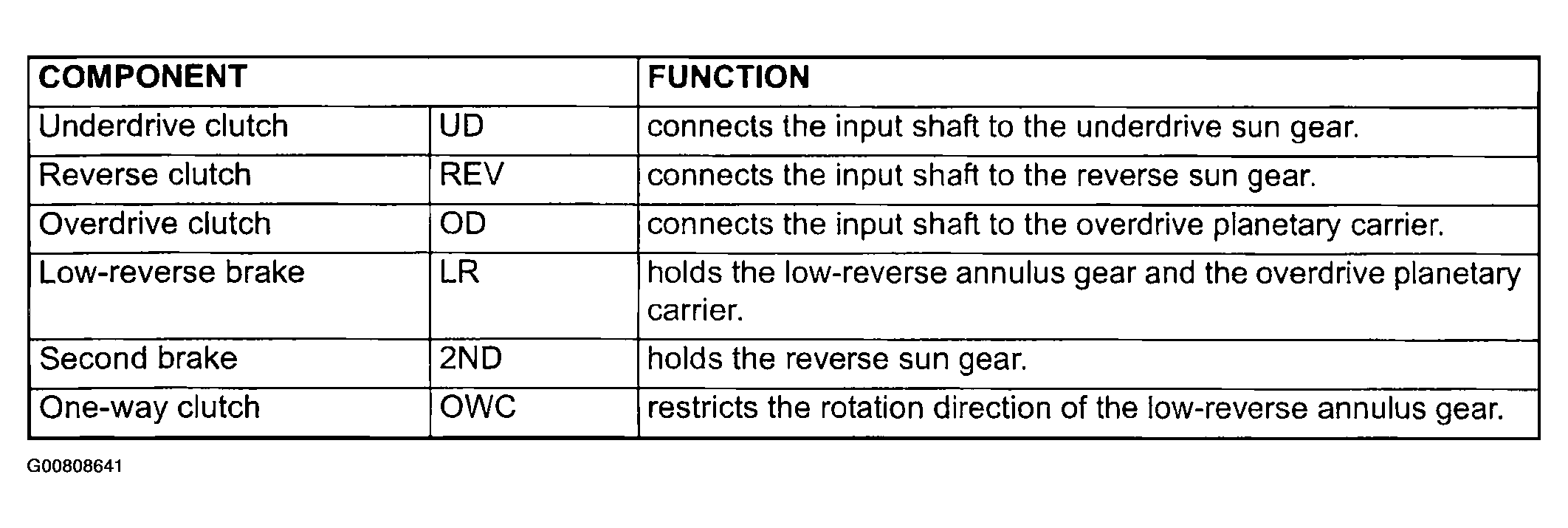

Fig 1: Components Functioning Chart
G00808641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
