Function Element Table

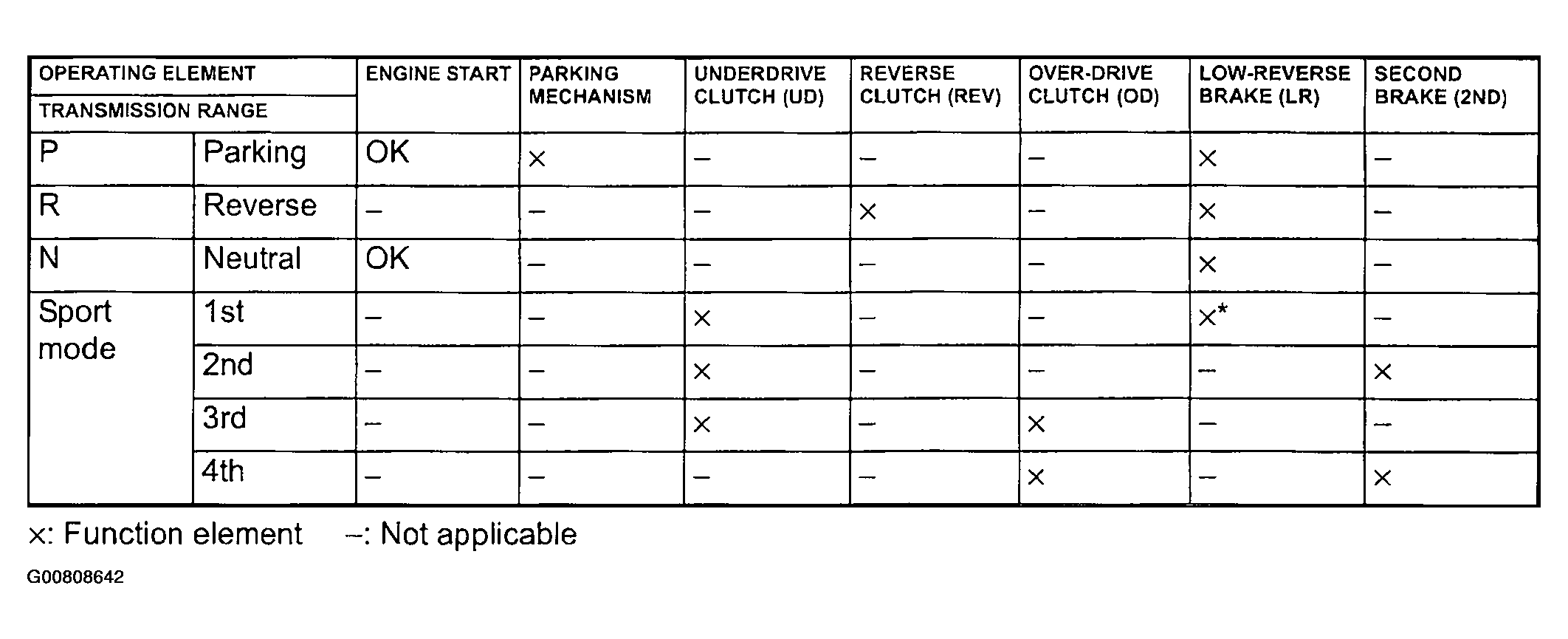

Fig 1: Function Element Chart
G00808642Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: * operates only when the vehicle is stationary [at approximately 10 km/h (6.2 mph) or less].
