Transmission Range Switch Check

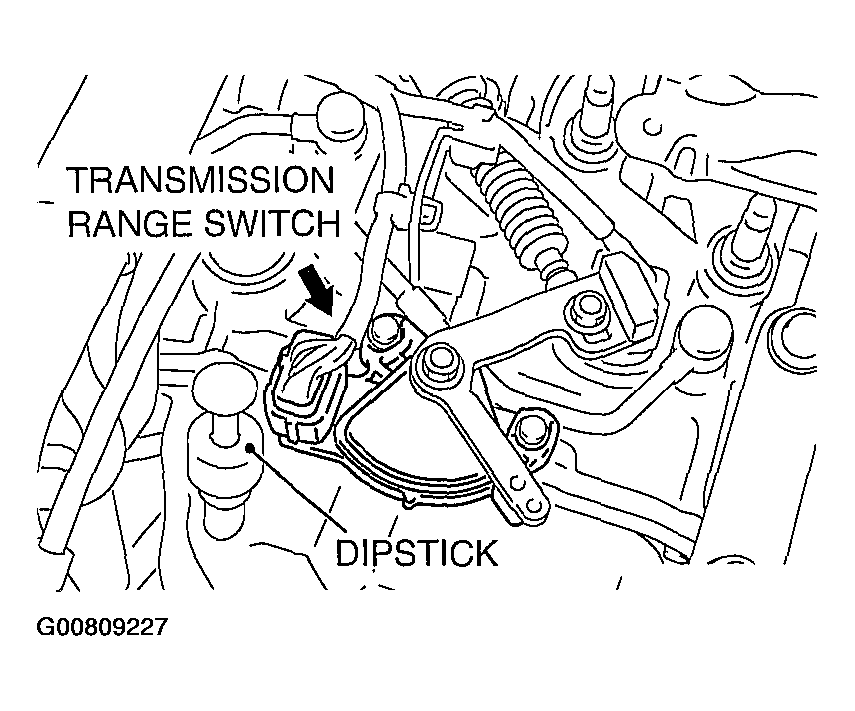

Fig 1: Identifying Transmission Range Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Transmission Range Switch Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

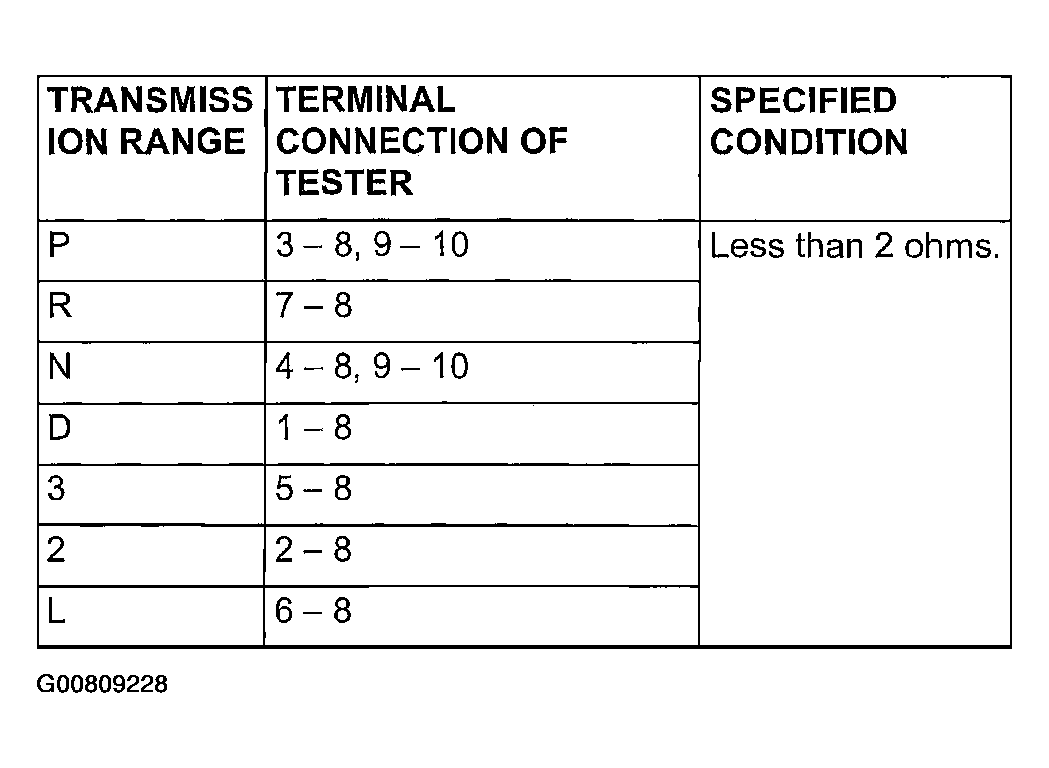

Fig 3: Transmission Range Switch Resistance Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
