Removal And Installation

WARNING: When removing and installing the transaxle control cable, key interlock cable and shift lock cable, be careful not to hit the SRS-ECU.

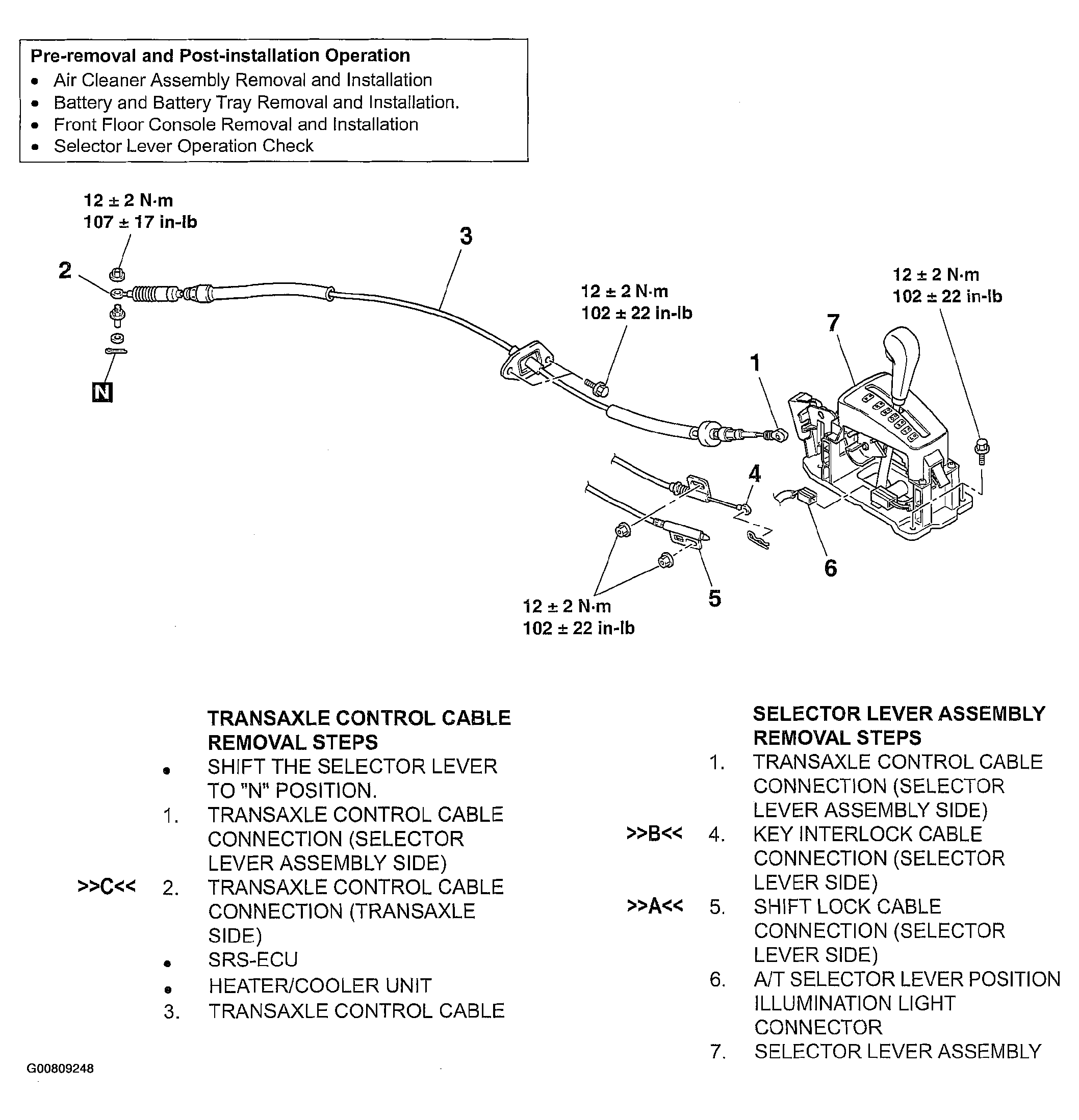

Fig 1: Exploded View Of Transaxle Control Cable Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
