Manual Transaxle On-Vehicle Service - Evolution
›
General Description
›
Sectional View (Vehicles With Helical Gear LSD)
Sectional View (Vehicles With Helical Gear LSD)

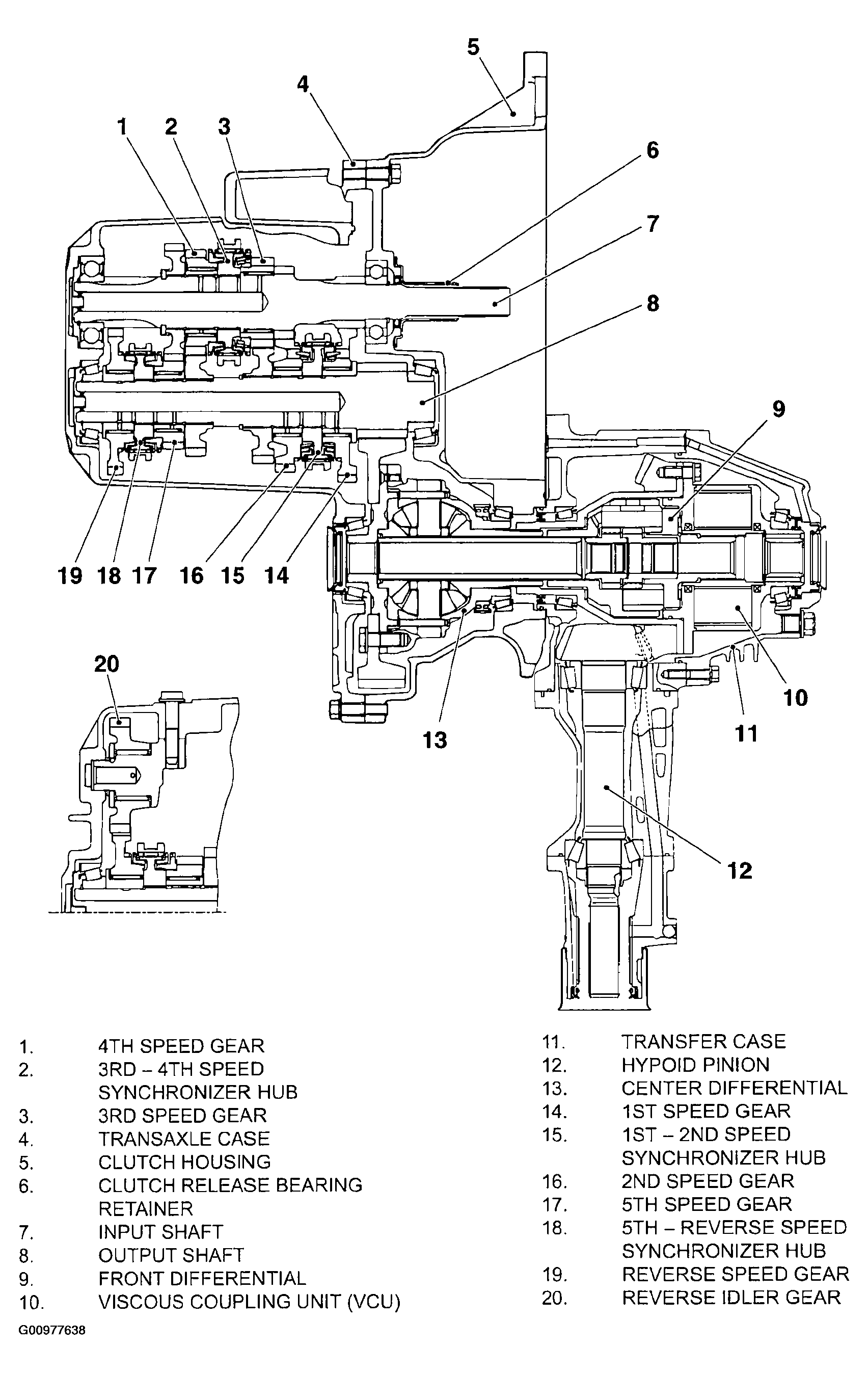

Fig 1: Identifying Sectional View(With LSD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
