Combination Meter Internal Resistance Check

Use circuit tester to measure combination meter internal resistance.

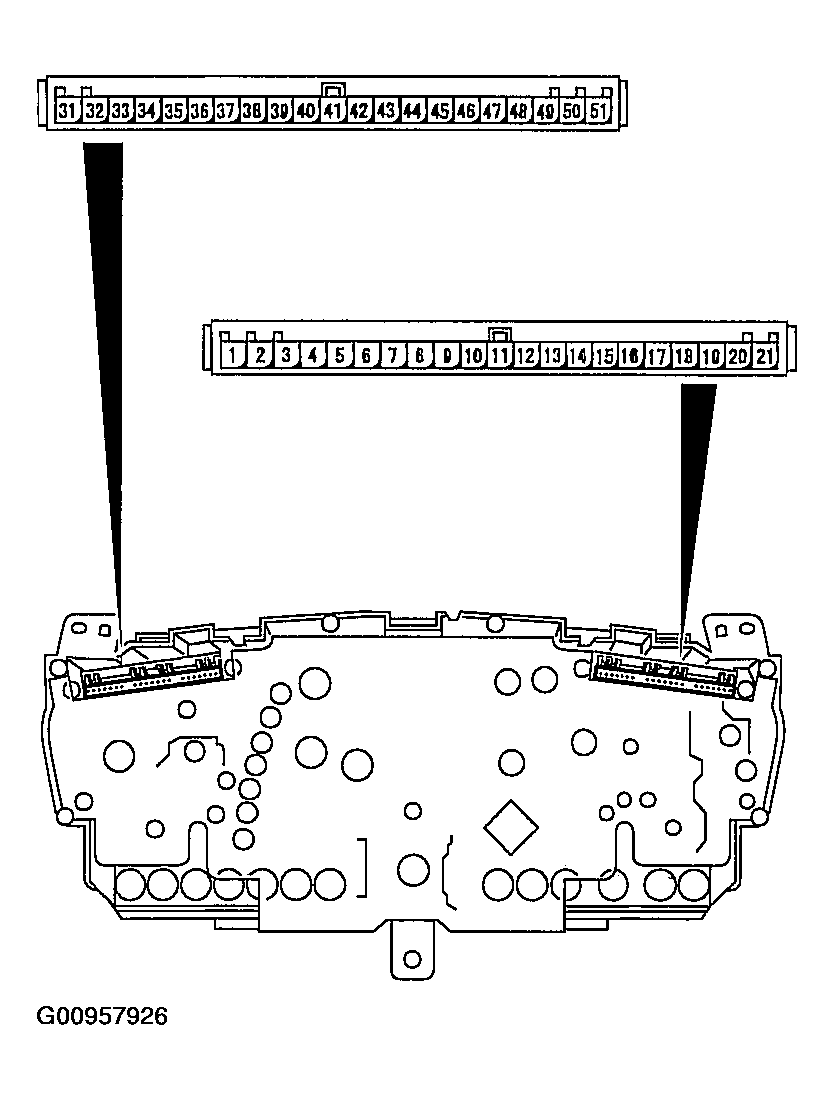

Fig 1: Identifying Combination Meter Internal Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Combination Meter Internal Resistance Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
