< 2.4L Engine >

  1. Remove the spark plug and connect to the ignition coil.

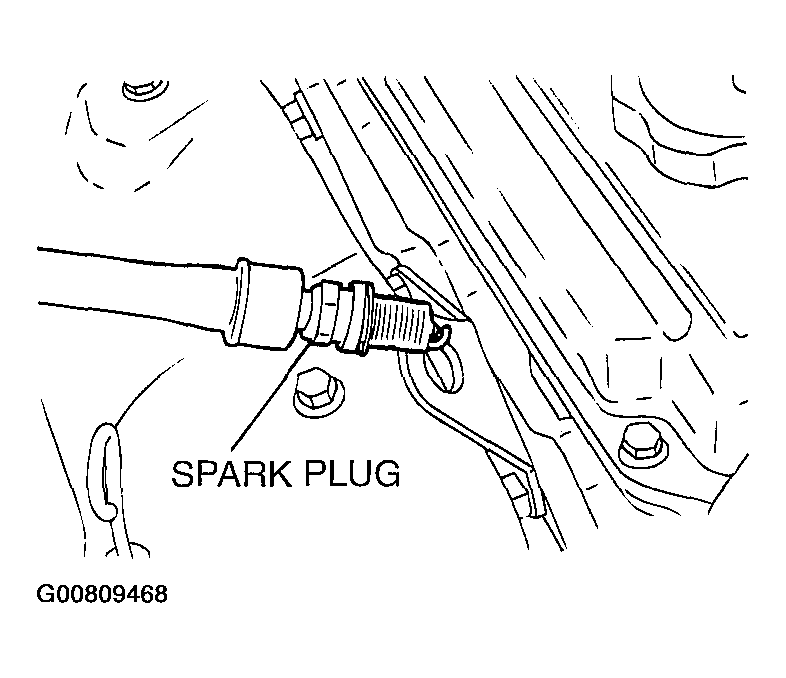

    Fig 1: Removing Spark Plug
    G00809468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Ground the spark plug outer electrode (body), and crank the engine.

    Check that there is an electrical discharge between the electrodes at this time.

    Fig 2: Identifying Ground Spark Plug Outer Electrode
    G00809469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
