Engine Control System - Except Evolution & SPORTBACK
›
Accelerator Cable And Pedal Removal And Installation
›
Removal And Installation
›
Notes
Removal And Installation: Notes

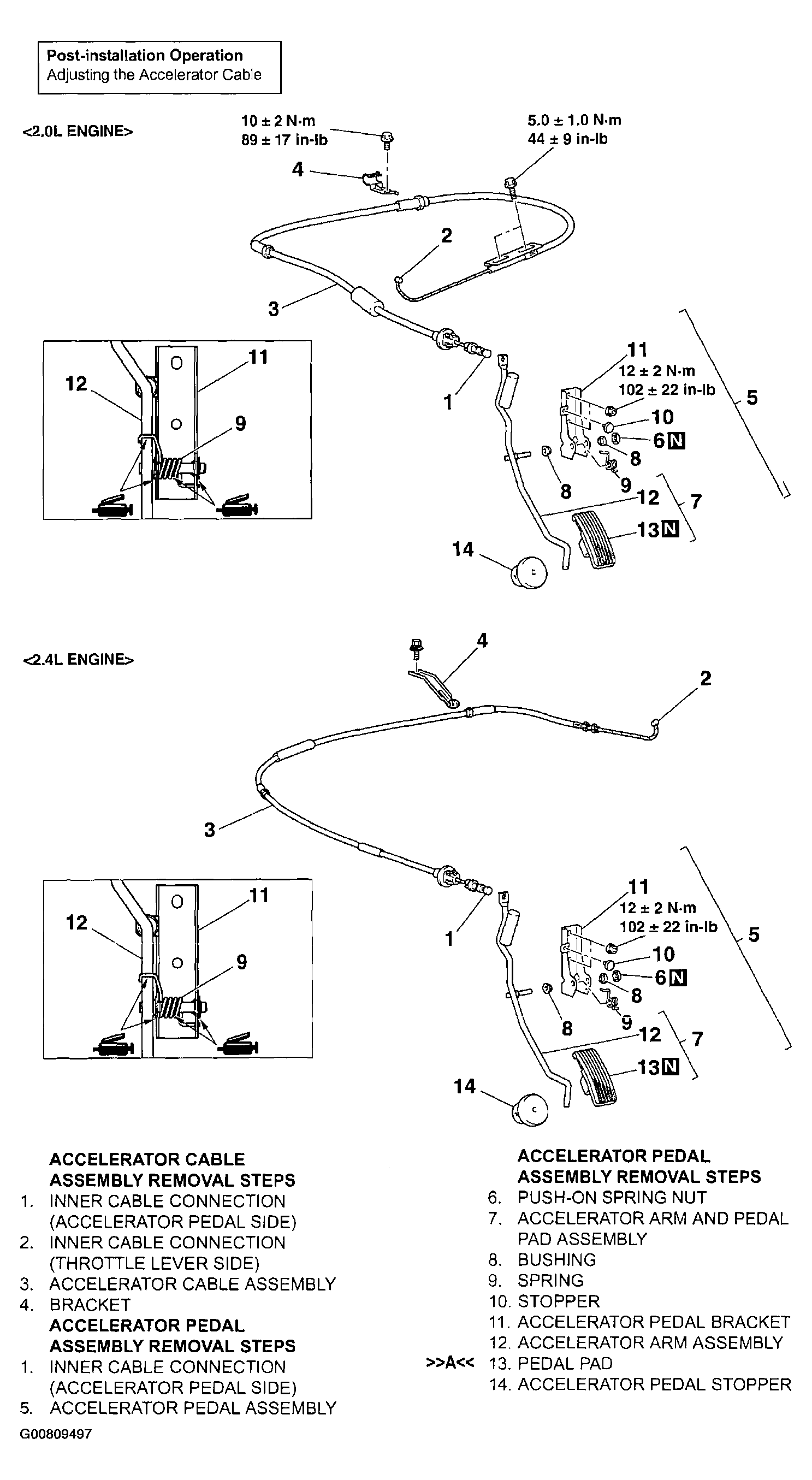

Fig 1: Removing And Installing Accelerator Cable And Pedal Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
