Section 46 (Front Floor Console Assembly - Evolution)
›
Front Floor Console Assembly
›
Removal And Installation
Removal And Installation
WARNING:
This page is about a different variant/trim than selected.

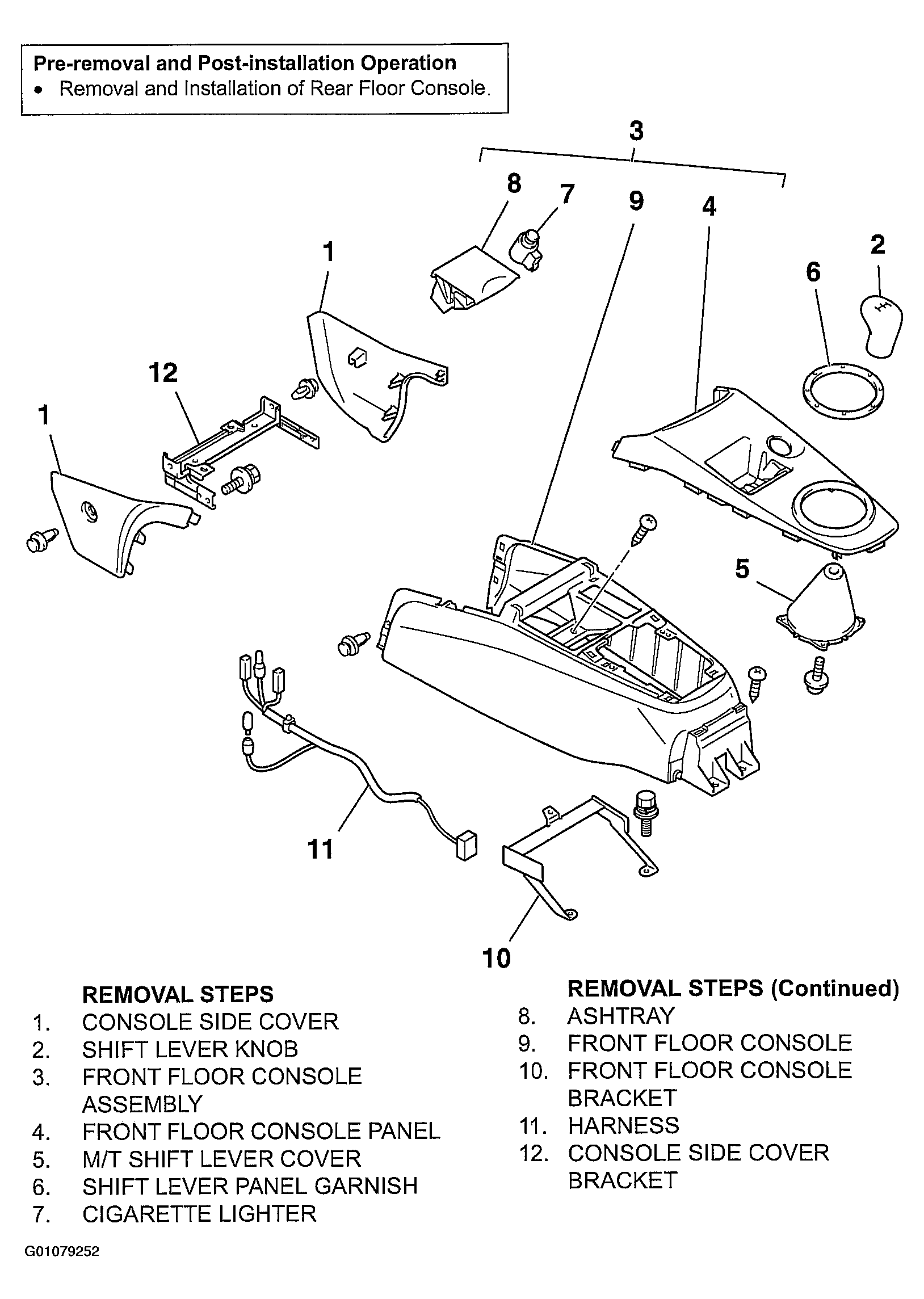

Fig 1: Identifying Removal And Installation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
