Removal And Installation: Notes

CAUTION:

Before removing the steering wheel and air bag assembly, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING . Also, put the front wheels in straight-ahead position. Failure to do so may damage the SRS clock spring and render the SRS air bag inoperative, which results serious driver injury.
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

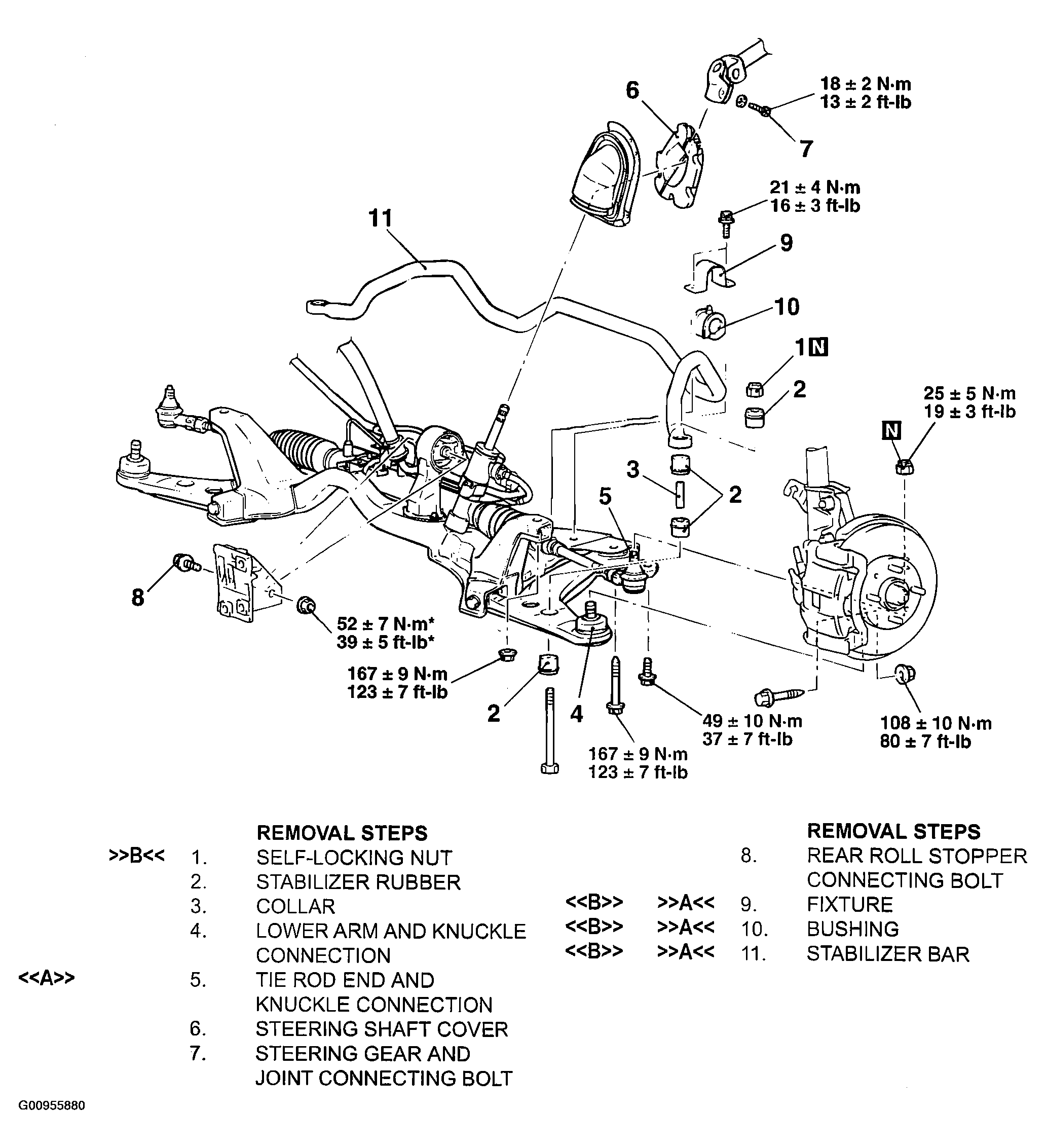

Fig 1: Removing & Installing Stabilizer Bar (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing & Installing Stabilizer Bar (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
