DTC 15: Auto-cruise Control Switch System: Notes

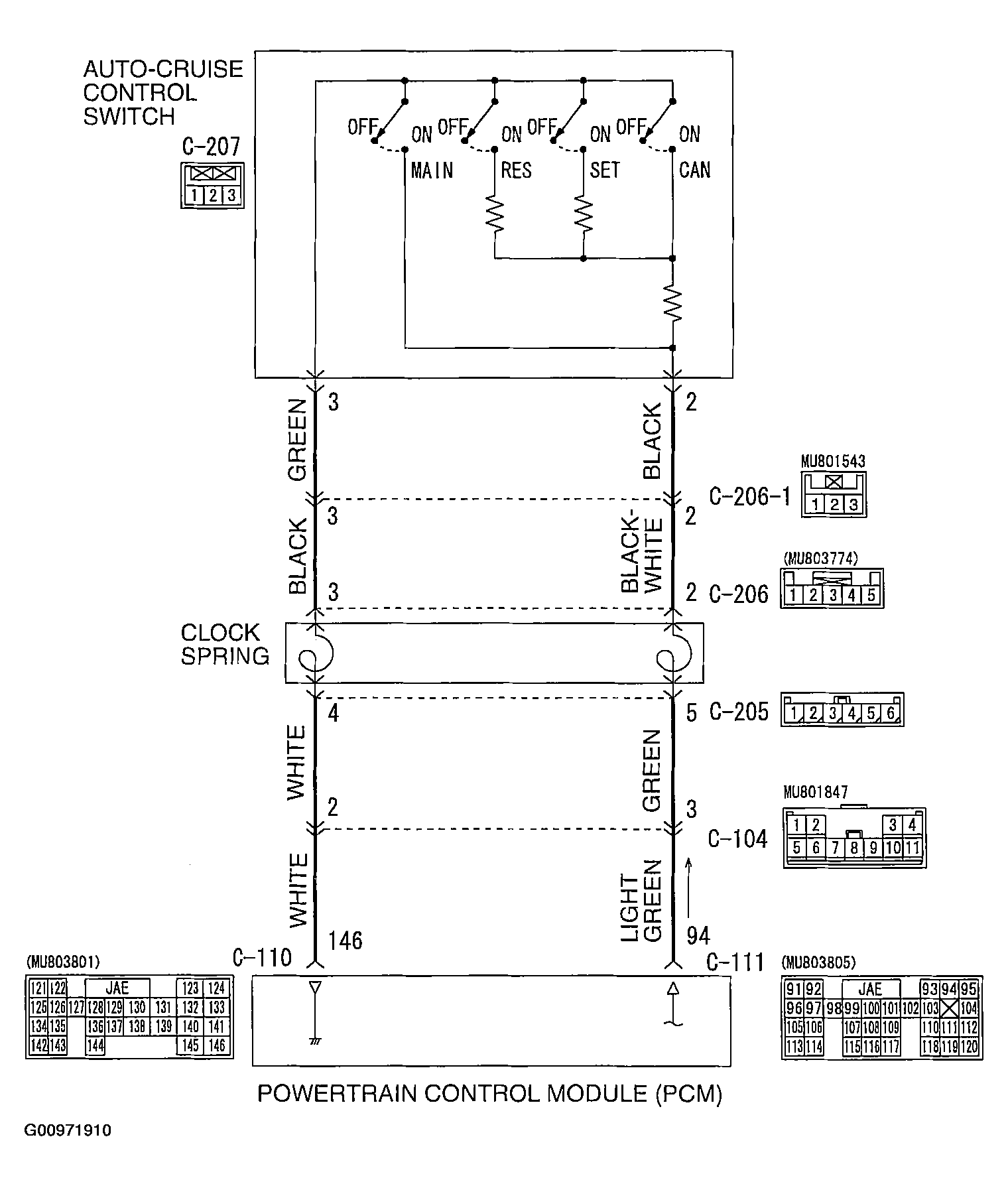

Fig 1: Identifying Auto-Cruise Control Switch System Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

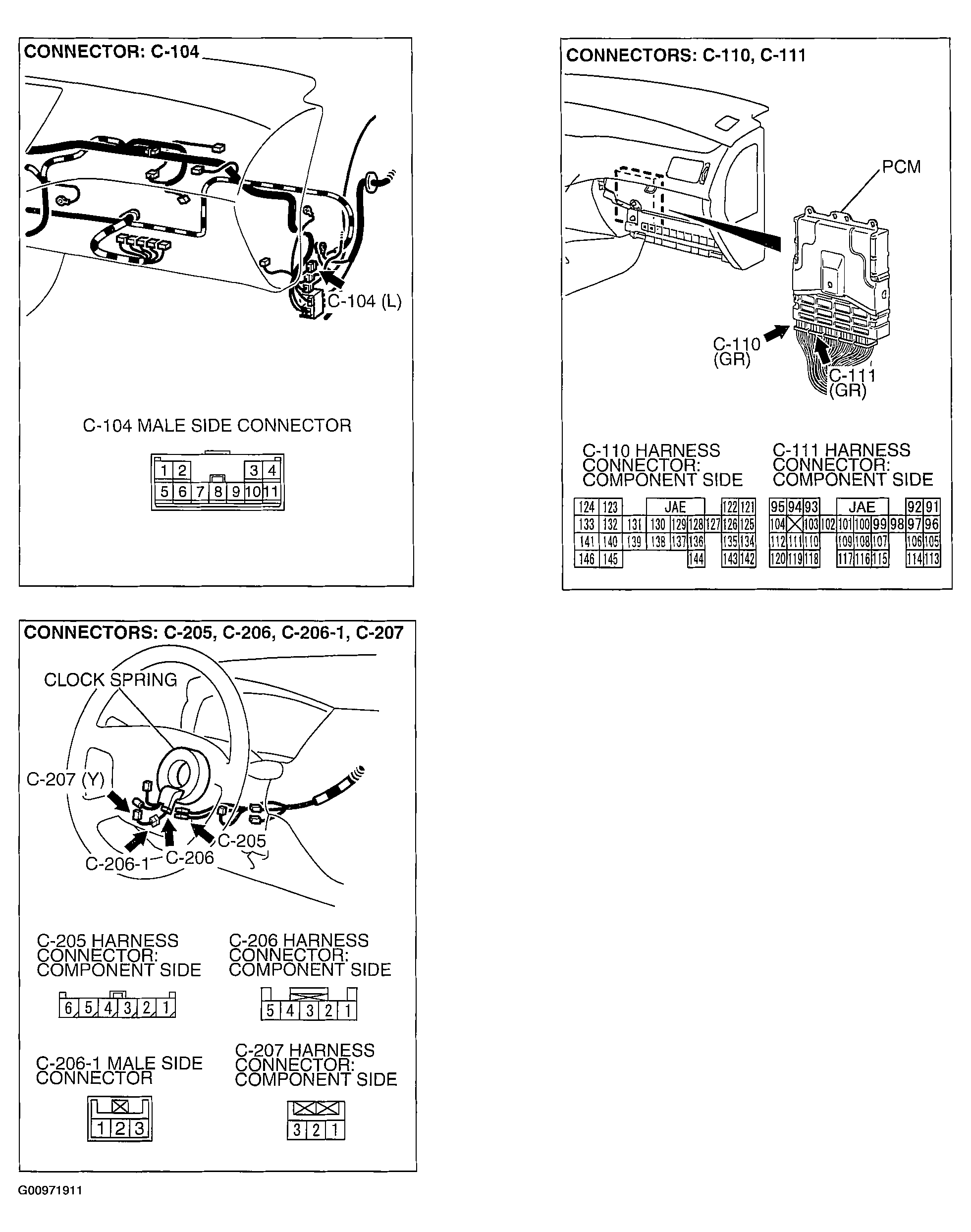

Fig 2: Identifying Connectors: C-014, C-110, C-111, C-205, C-206, C-206-1, C-207,

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
