Auto-Cruise Control Switch Check

Remove the auto-cruise control switch. (Refer to AUTO-CRUISE CONTROL ).
Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

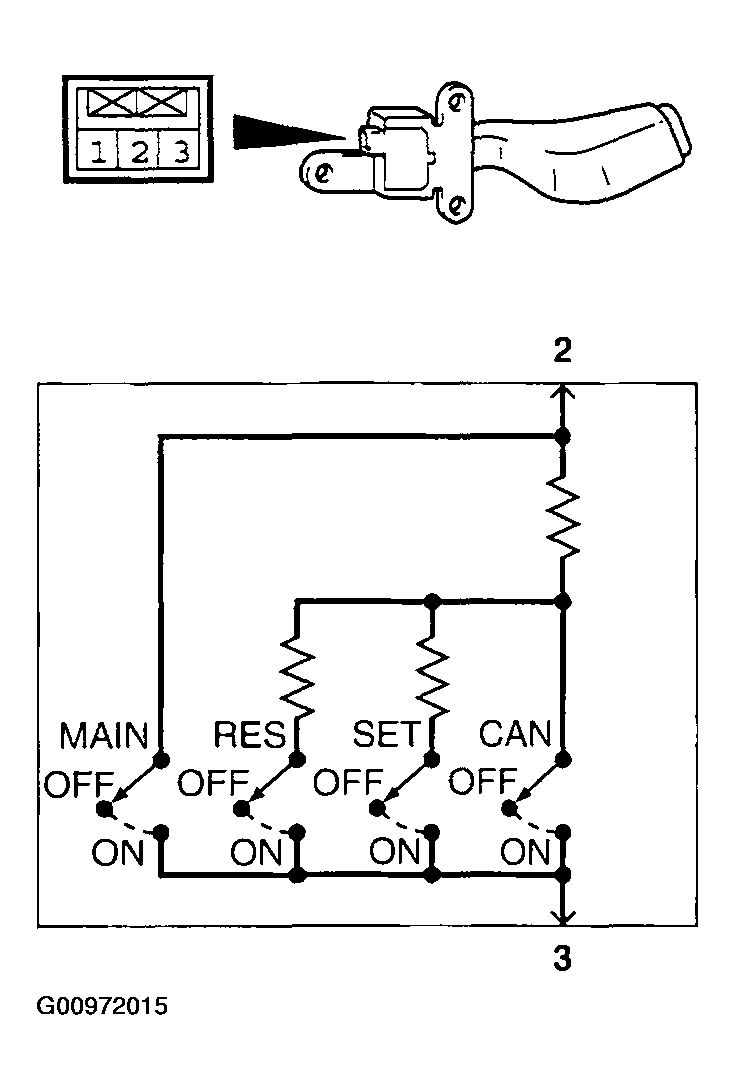

Fig 1: Measuring Resistance Between Terminal 2 And Terminal 3
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

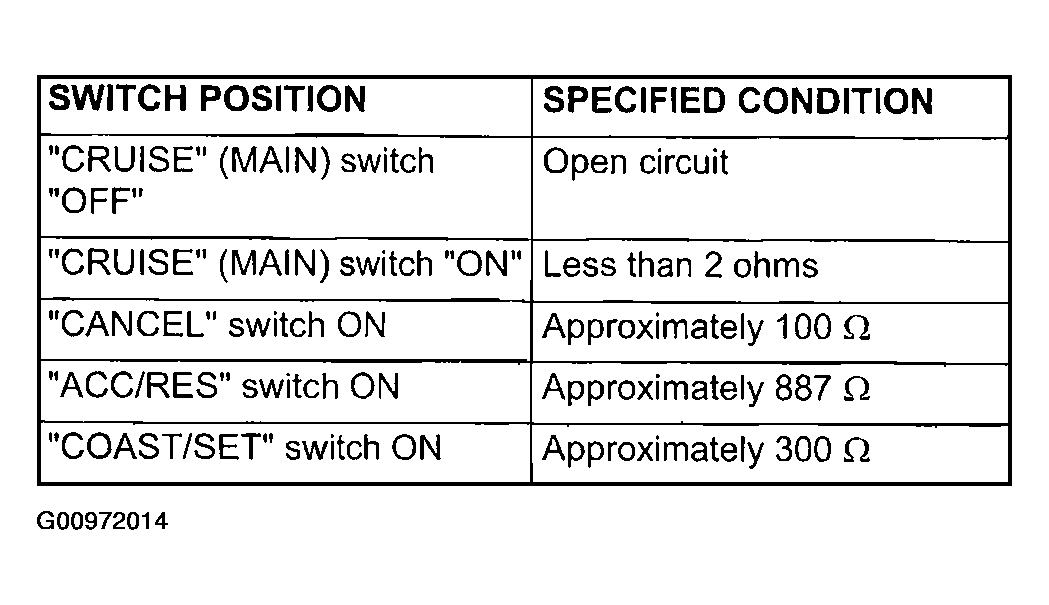

Fig 2: Identifying Switch Condition And Specified Condition Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
