Disassembly And Assembly: Notes

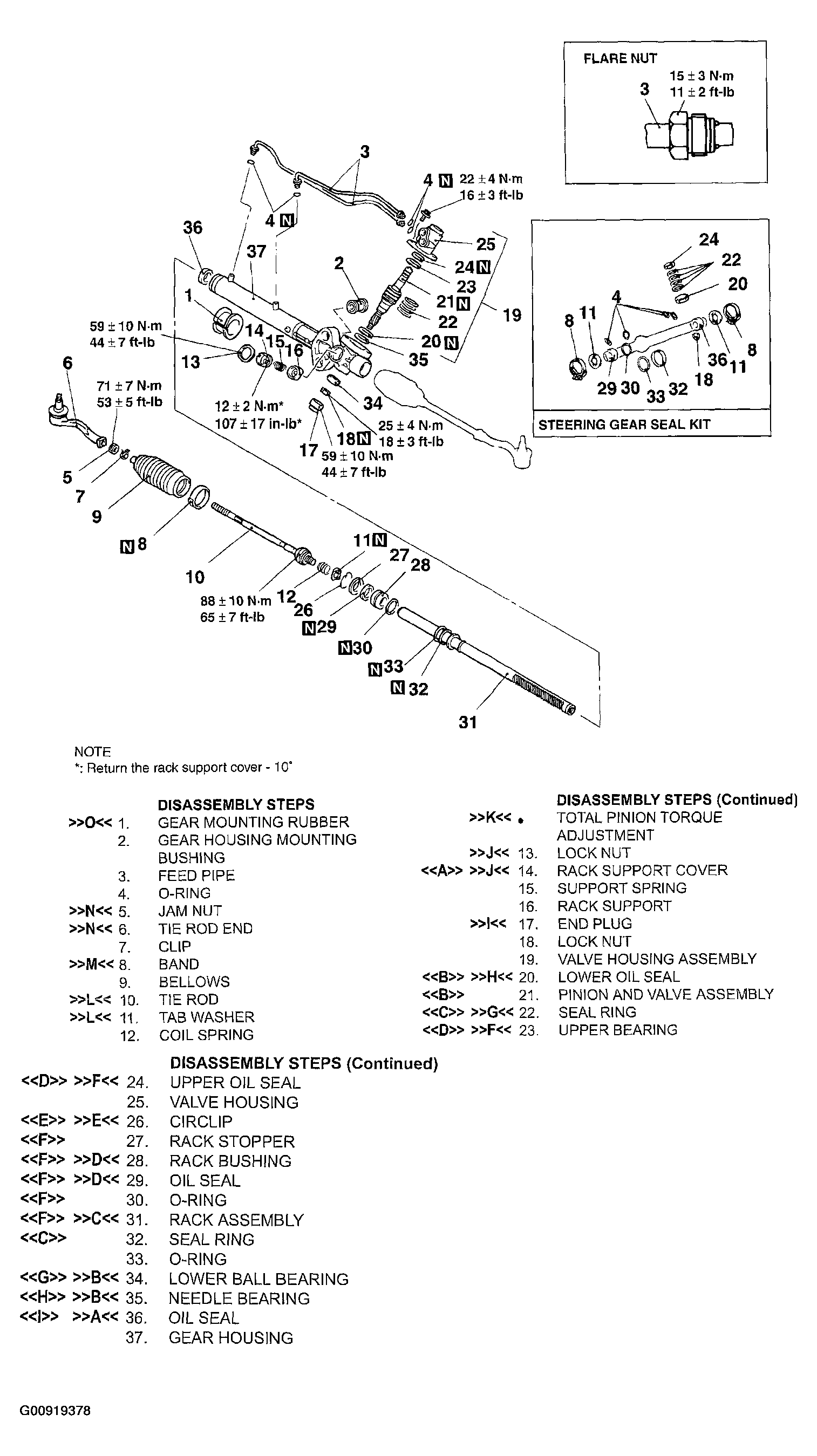

Fig 1: Exploded View Of Steering Gear

G00919378

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
