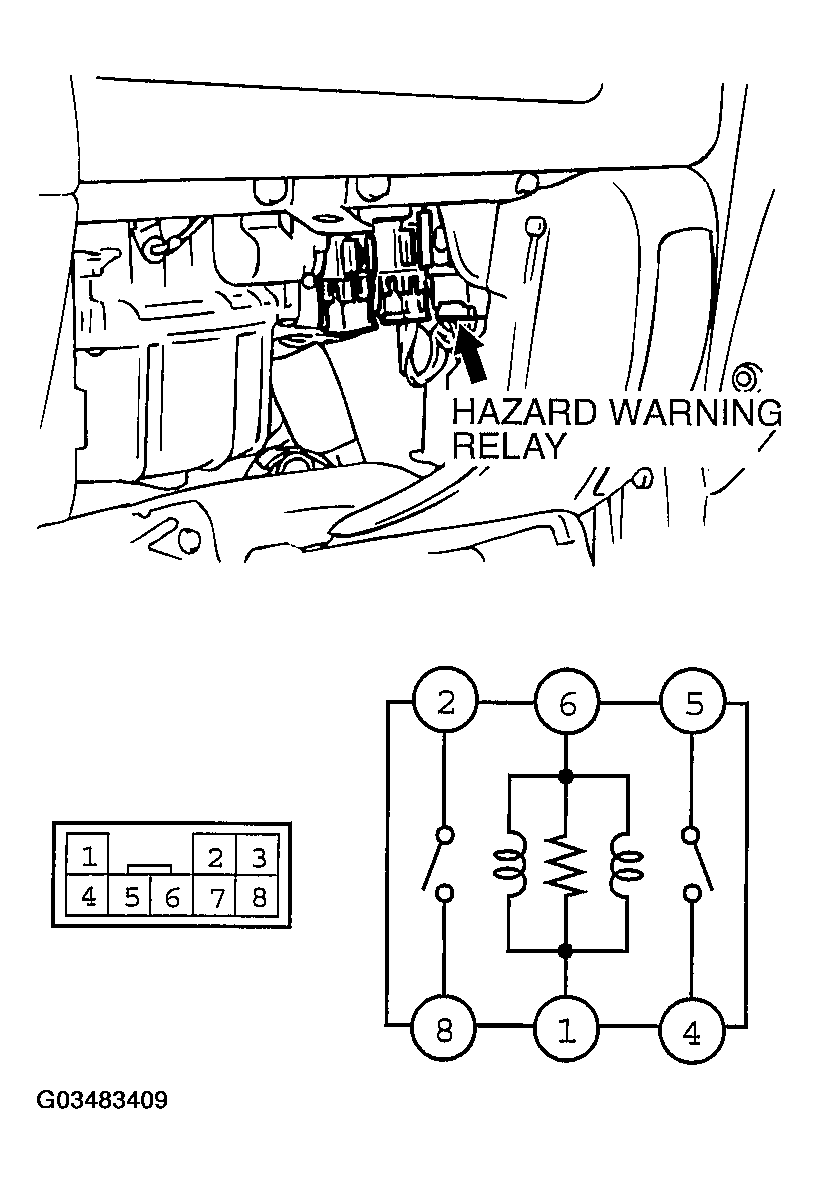

Hazard Warning Relay Continuity Check
RELAY CONTINUITY SPECIFICATIONS
| BATTERY VOLTAGE |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Not applied |
2-8 4-5 |
Open circuit |
- Connect terminal 6 to the positive battery terminal
- Connect terminal 1 to the negative battery terminal
|
2-8 4-5 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
