Accelerator Cable And Pedal
›
Removal And Installation
Removal And Installation

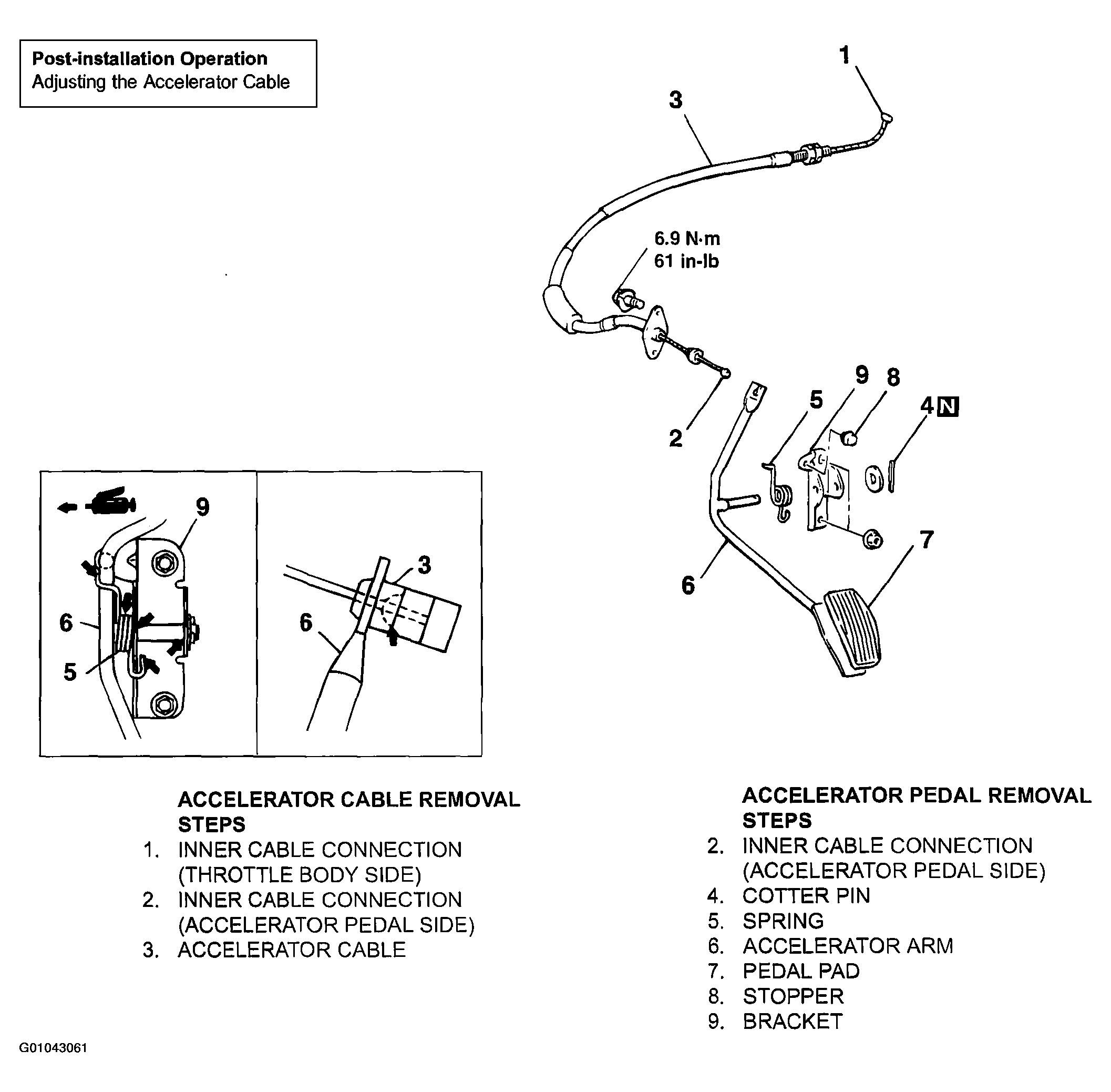

Fig 1: Identifying Accelerator Cable And Pedal Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
