Disassembly And Assembly: Notes

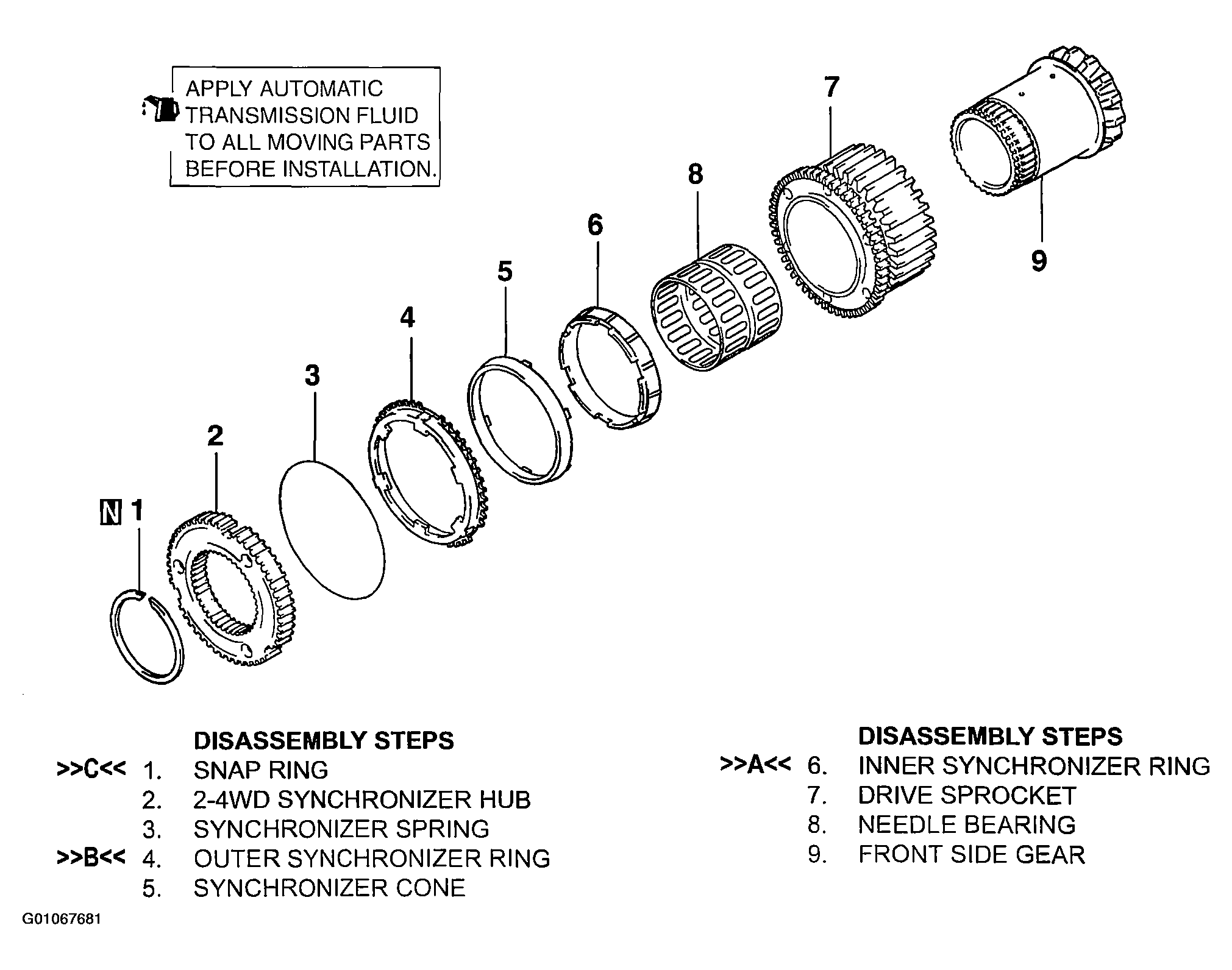

Fig 1: Disassembly And Assembly Of 2-4Wd Synchronizer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
