Disassembly And Assembly: Notes

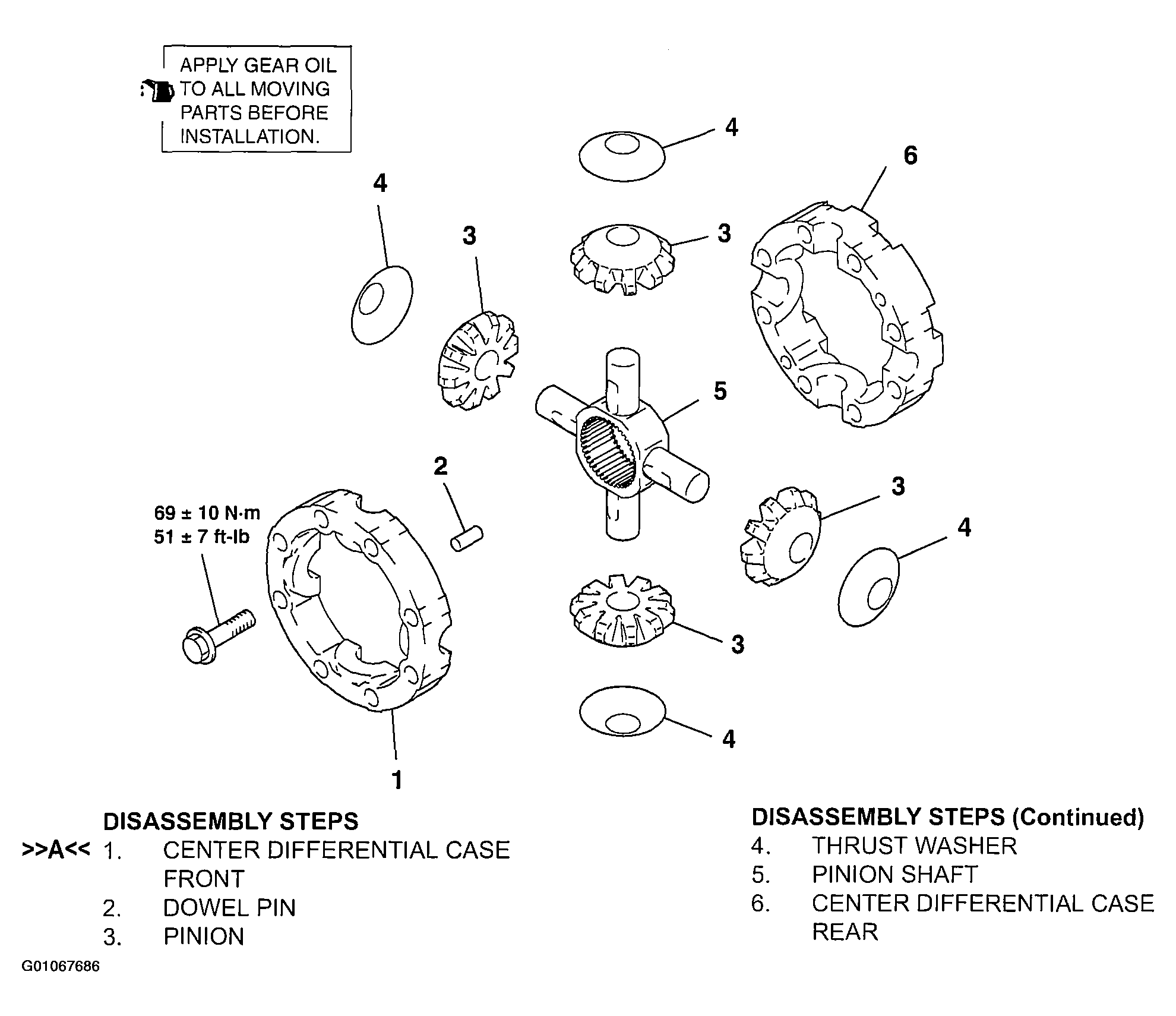

Fig 1: Disassembly And Assembly Of Center Differential Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
