Disassembly And Assembly: Notes

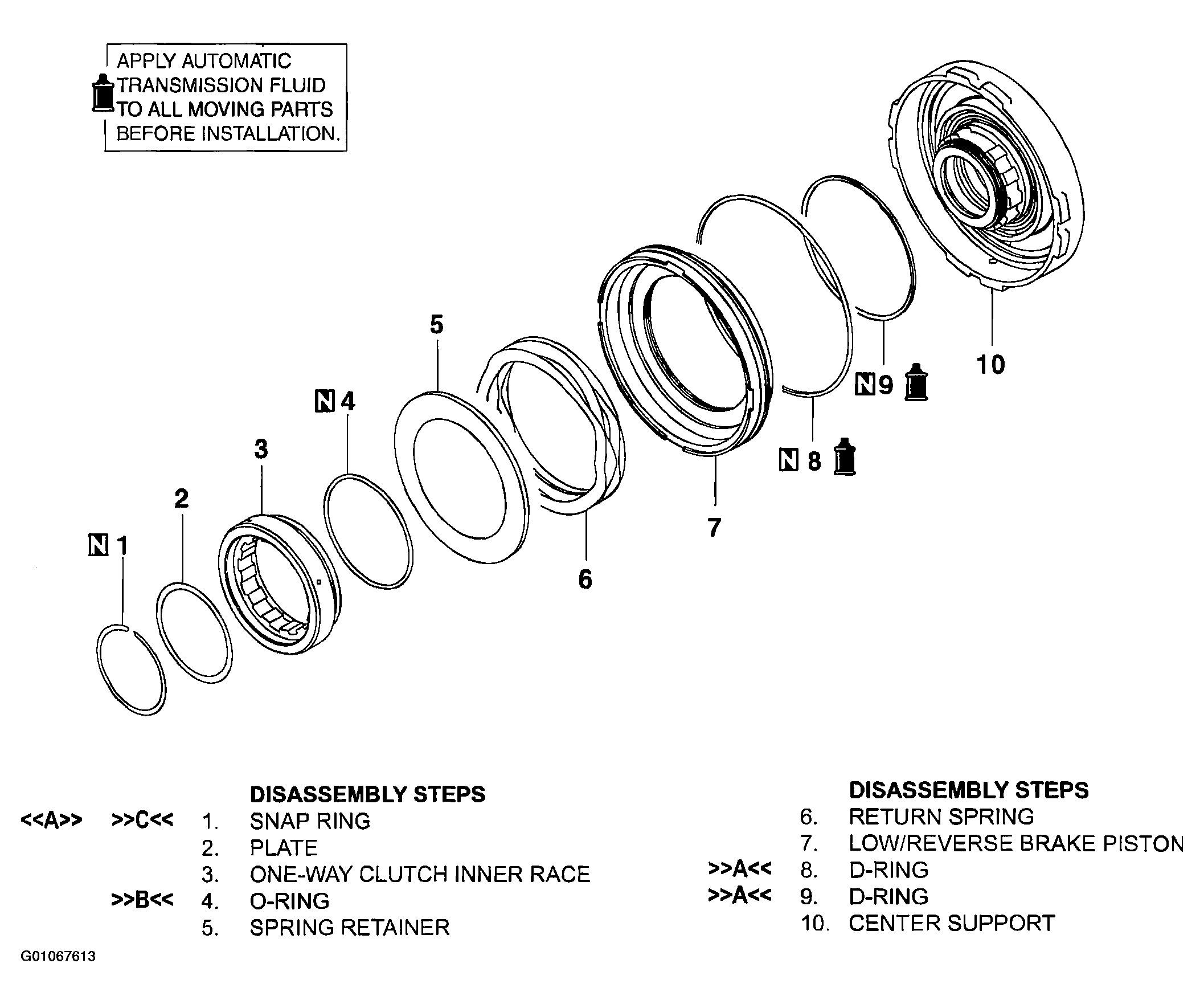

Fig 1: Disassembly And Assembly Of Center Support

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991630:Spring Compressor
• MD998924:Spring Compressor Retainer
