Disassembly And Assembly: Notes

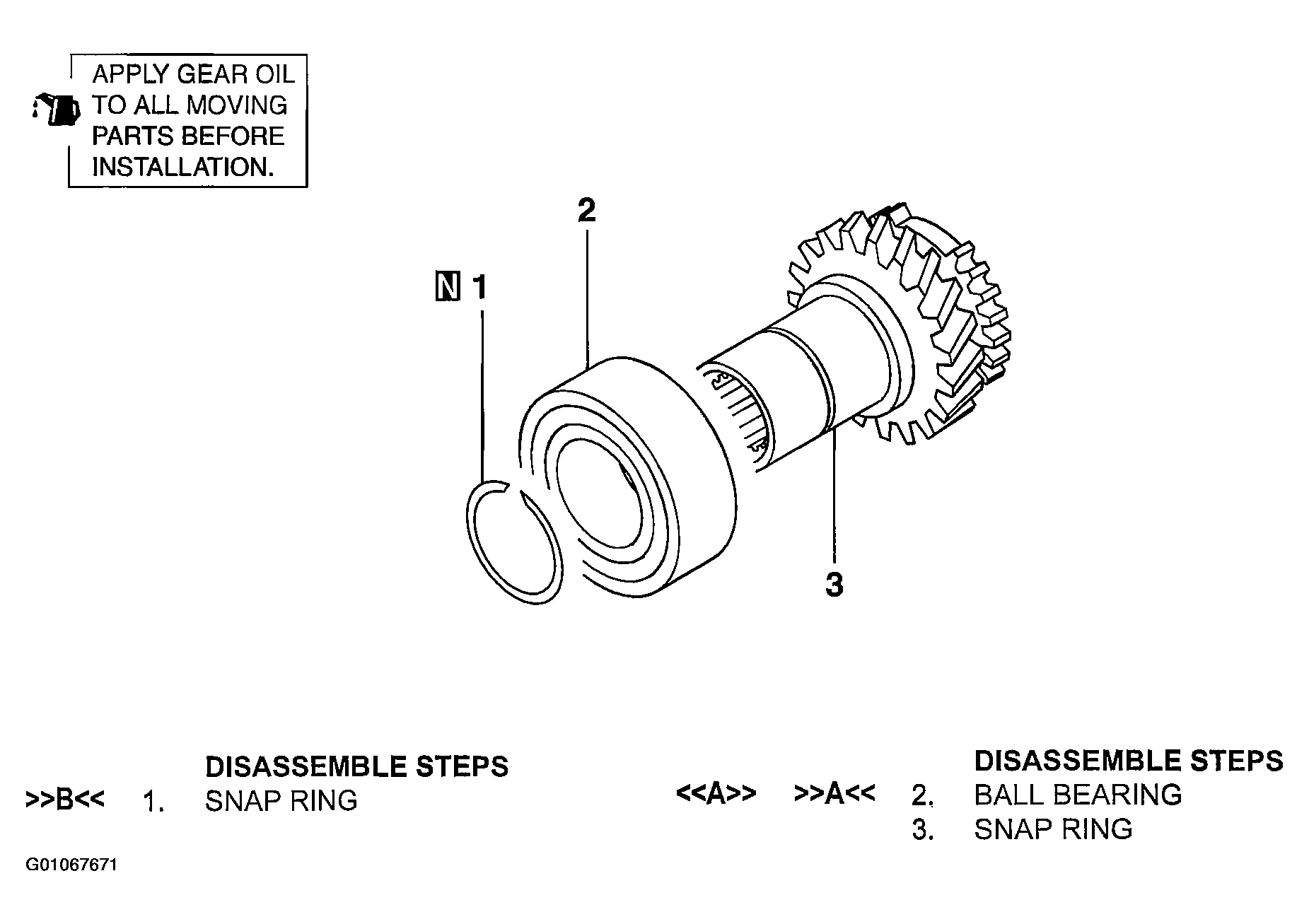

Fig 1: Disassembly And Assembly Of Input Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998826: Installer Adapter
