Disassembly And Assembly: Notes

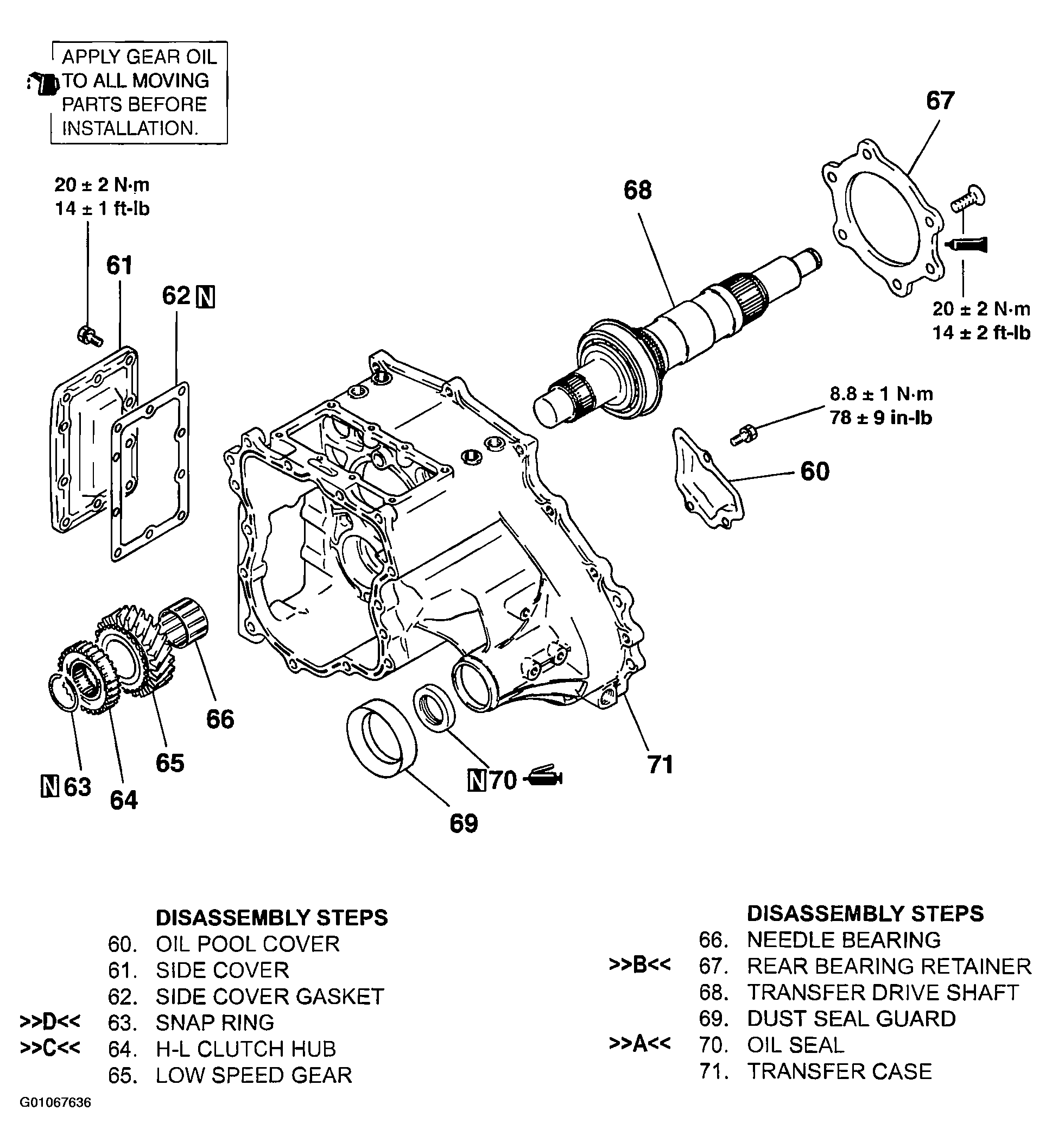

Fig 1: Disassembly And Assembly Of Transfer (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

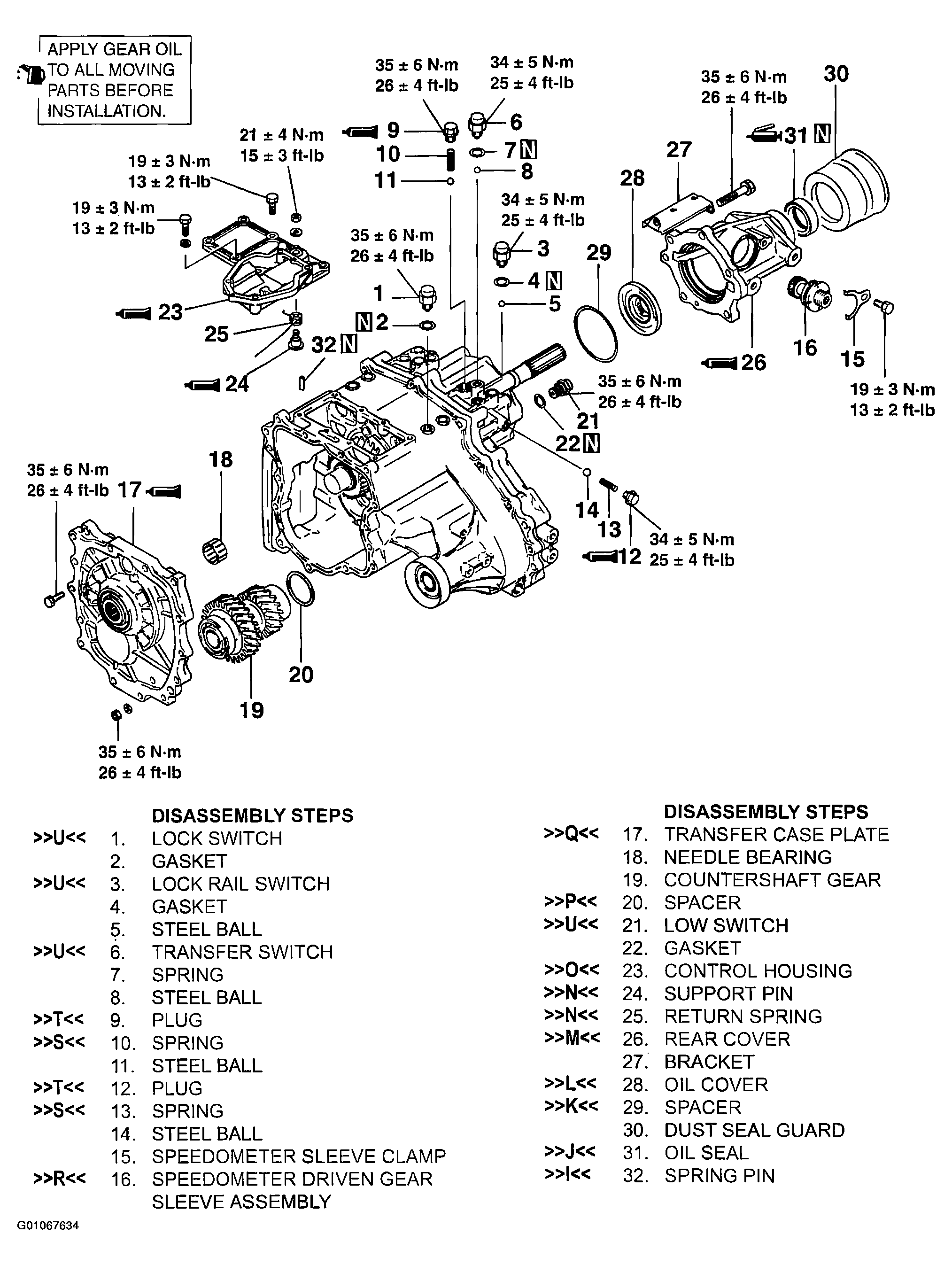

Fig 2: Disassembly And Assembly Of Transfer (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

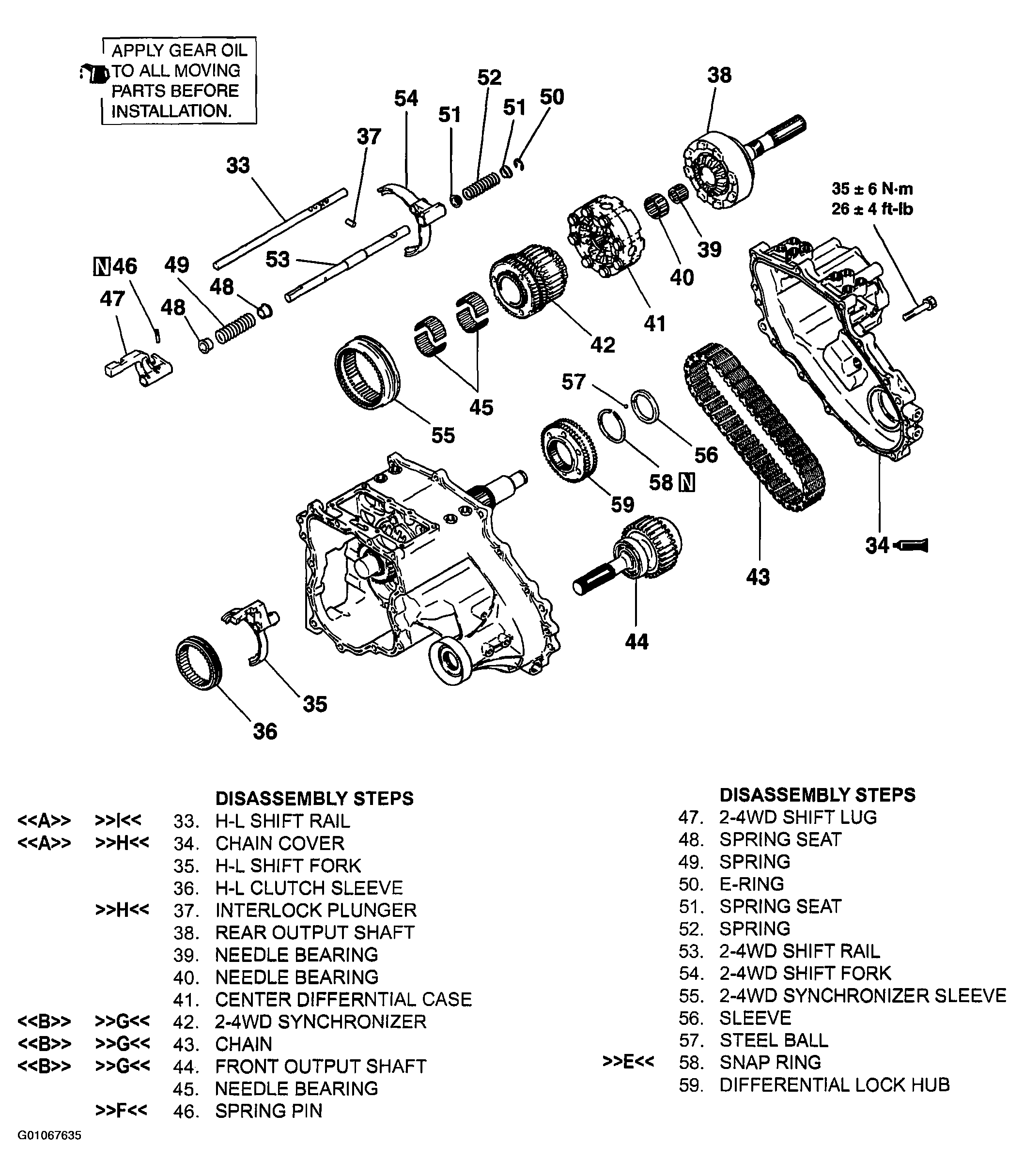

Fig 3: Disassembly And Assembly Of Transfer (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
