Auto-Cruise Control Switch Check

Measure the resistance between terminal 2 and terminal 3 when each of the "SET," "RESUME," "CANCEL" and MAIN switches is pressed. If the values measured at the time correspond to those in the figure Fig 1 below, the resistance values are correct.

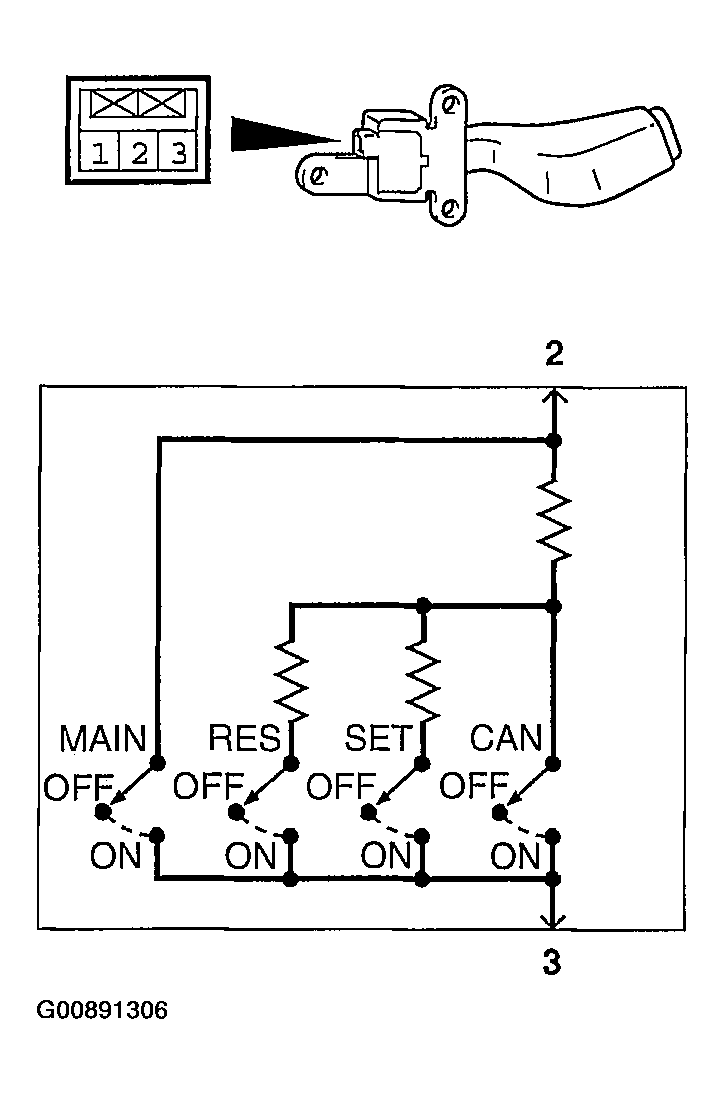

Fig 1: Measuring Resistance Terminal 2 And 3

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

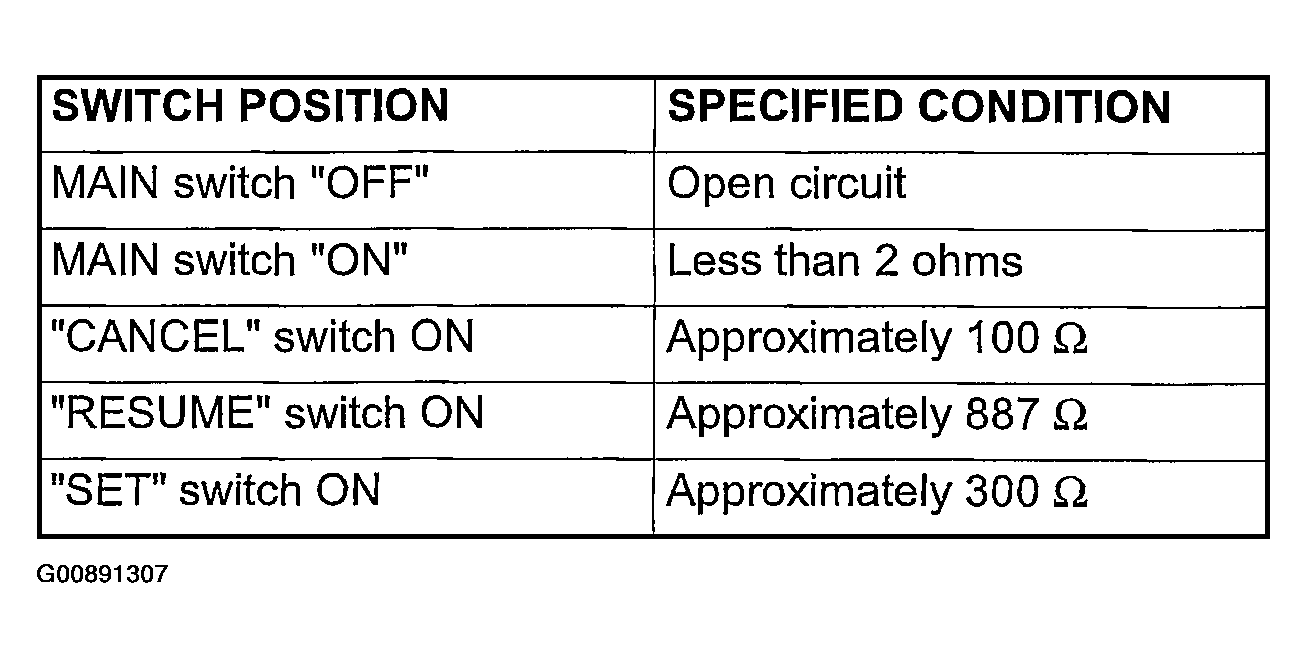

Fig 2: Identifying Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
