Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.
    Fig 1: Checking Continuity Terminals Switch
    G00891304Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

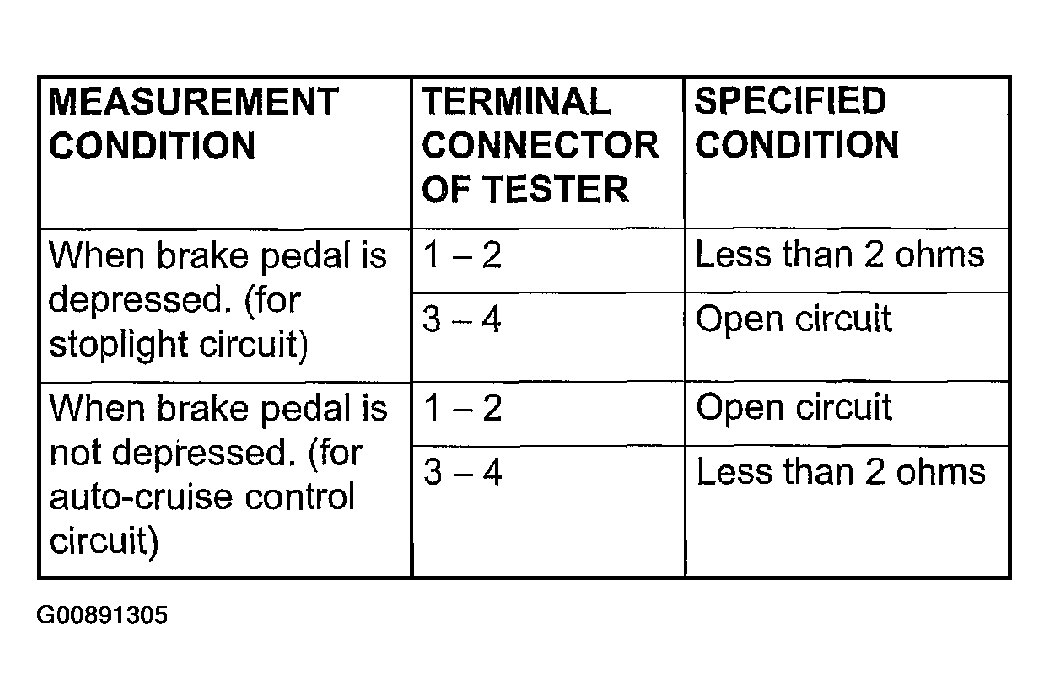

    Fig 2: Measuring Condition Table
    G00891305Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
