Montero XLS
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Braking System (Abs)
›
Diagnostic Trouble Code Procedures
›
DTC 33: Stoplight Switch System
›
Stoplight Switch Circuit
Stoplight Switch Circuit

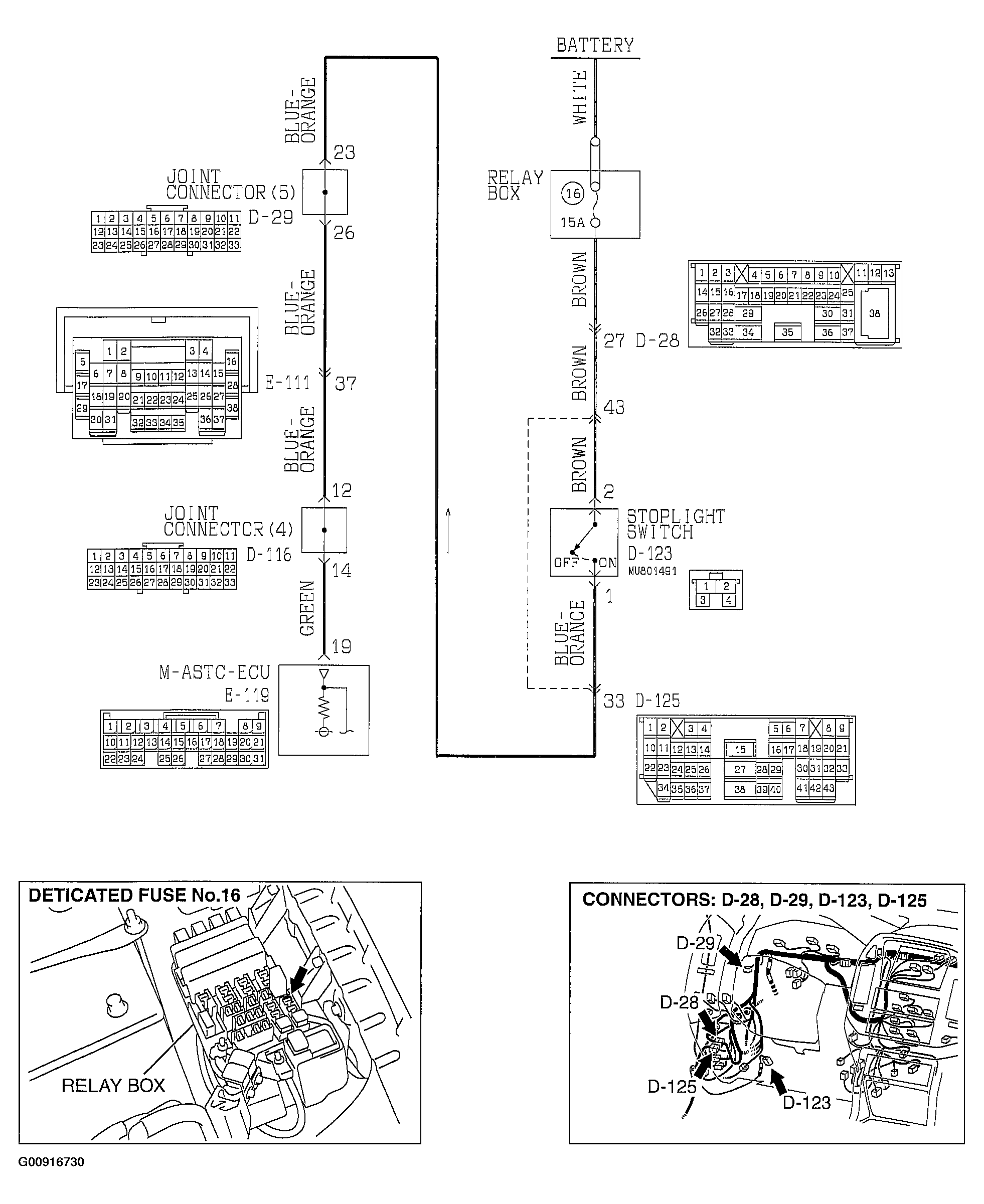

Fig 1: Stop Light Switch Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

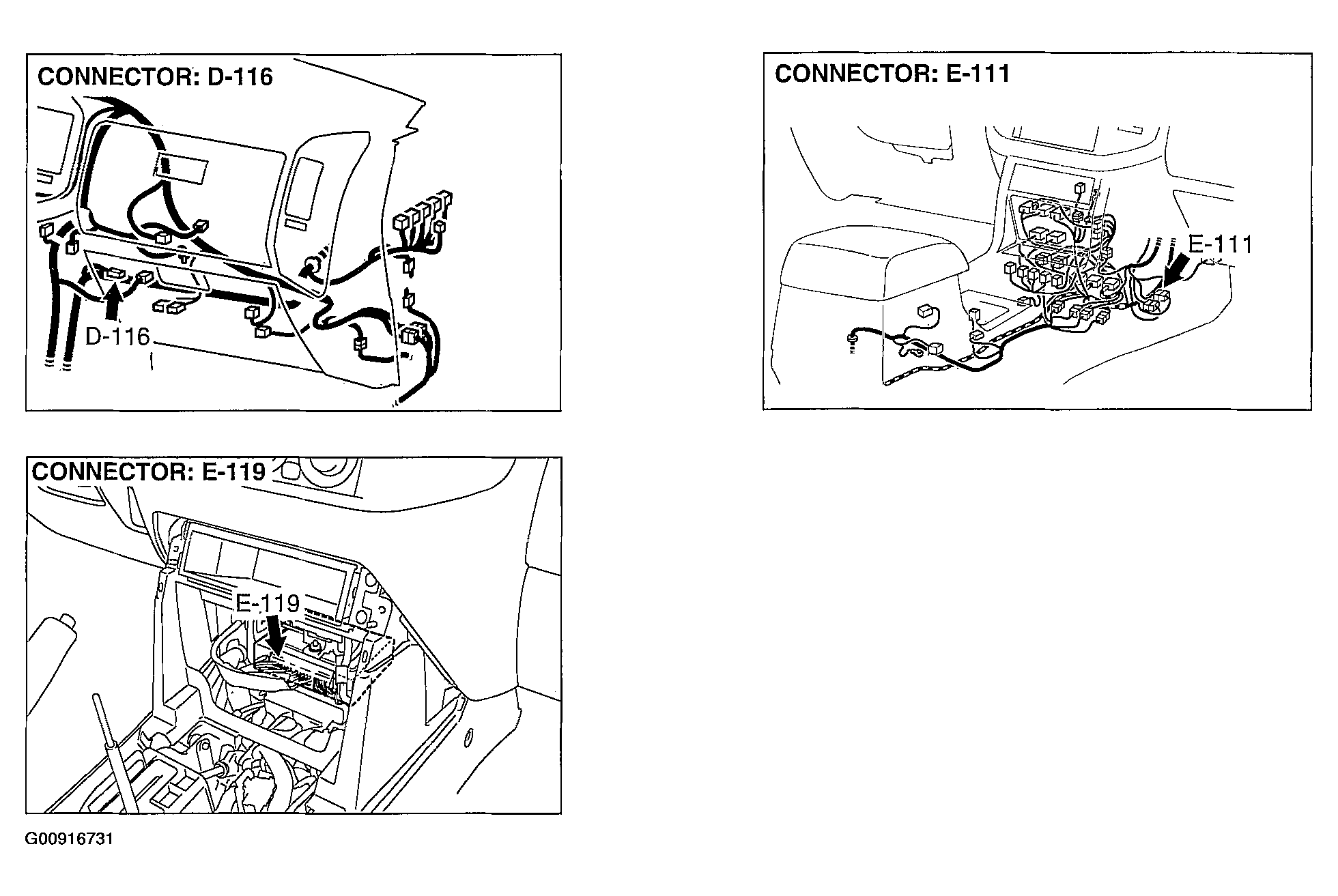

Fig 2: Identifying Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
