Actuator Test Specifications

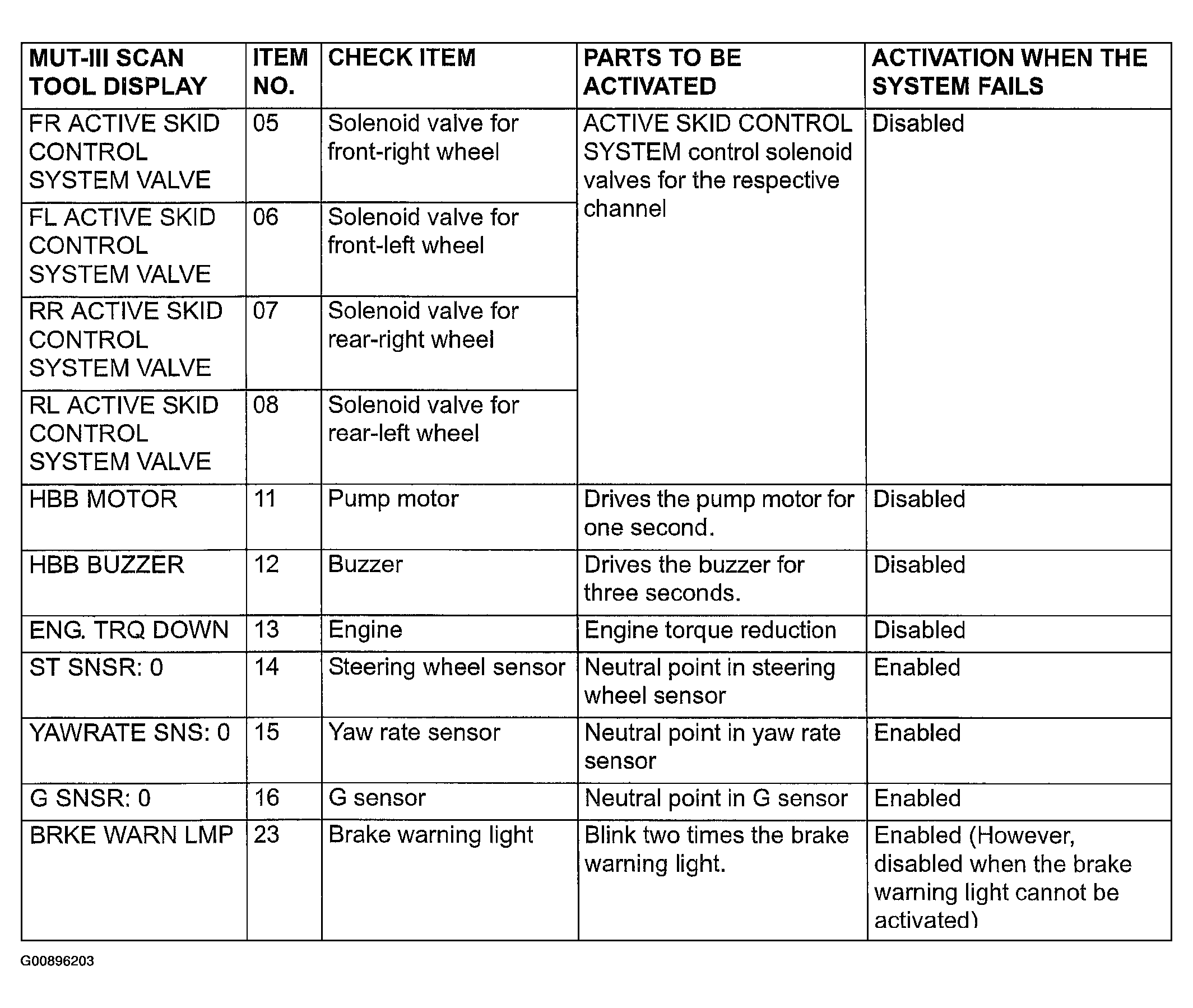

Fig 1: Actuator Test Specifications Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

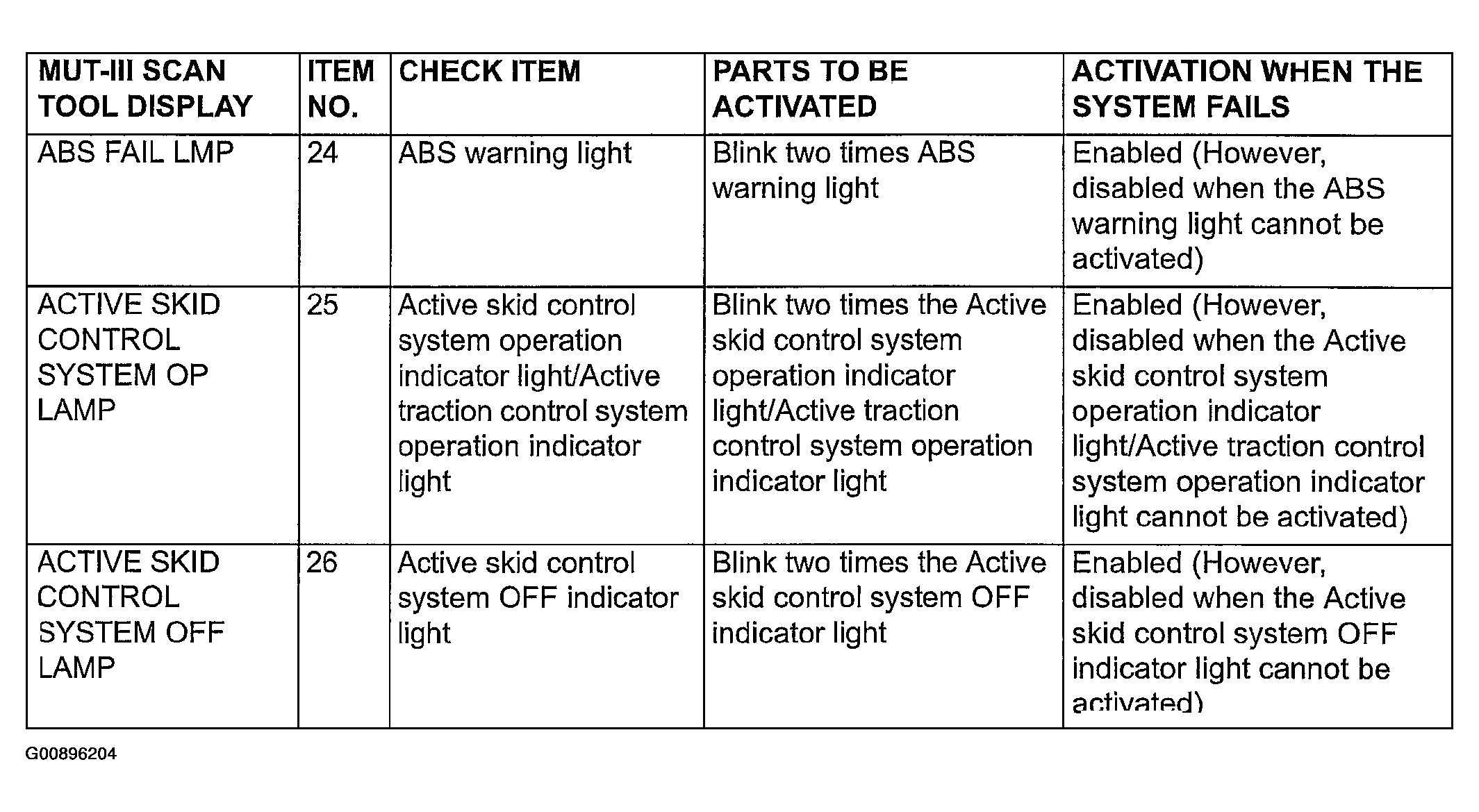

Fig 2: Actuator Test Specifications Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

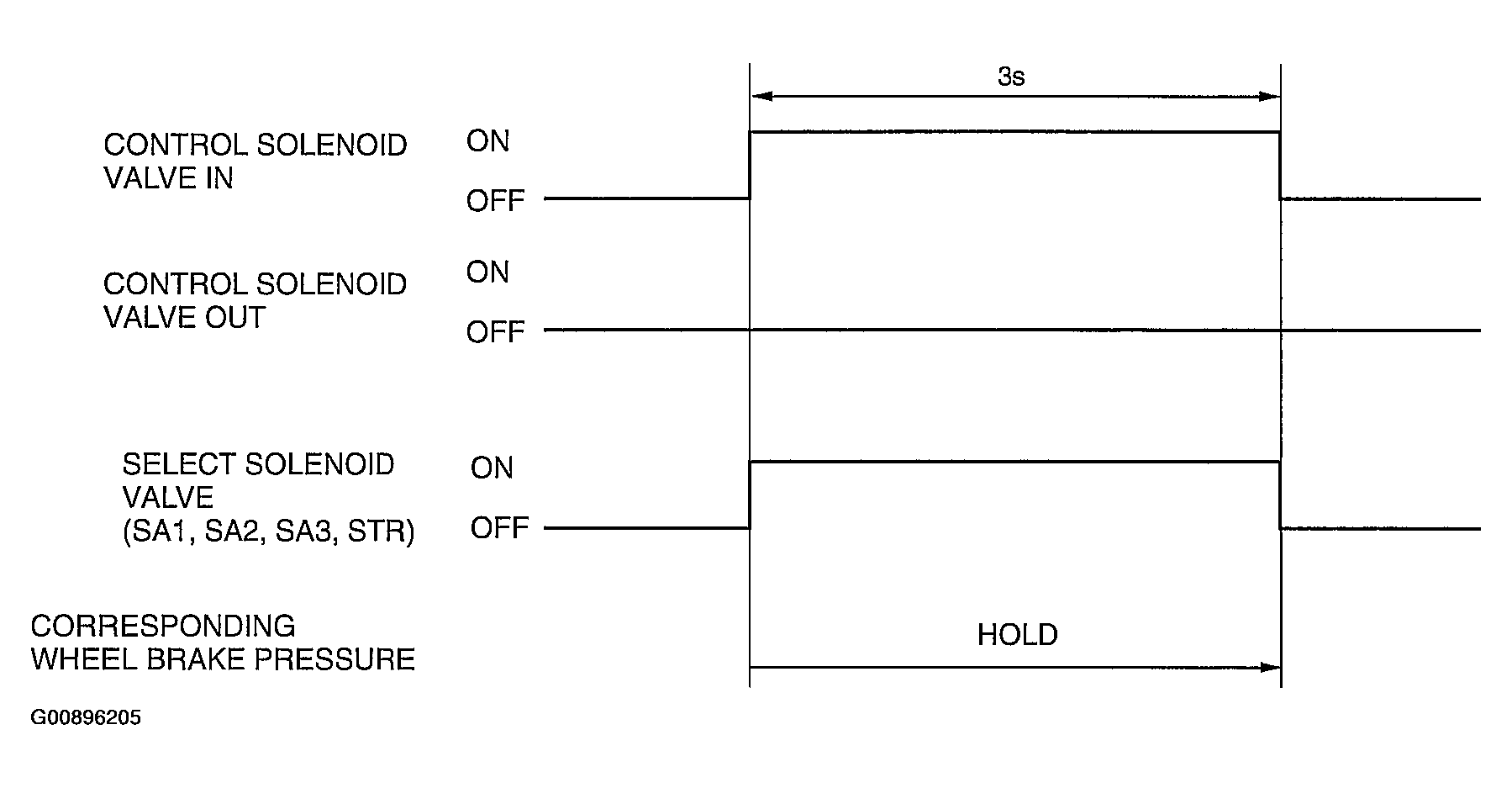

ITEM No. 05 - 08 DRIVE PATTERN

Fig 3: Identifying Drive Pattern Graph

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
