Removal And Installation: Notes
CAUTION:
Do not drop or shock the G and yaw rate sensor.

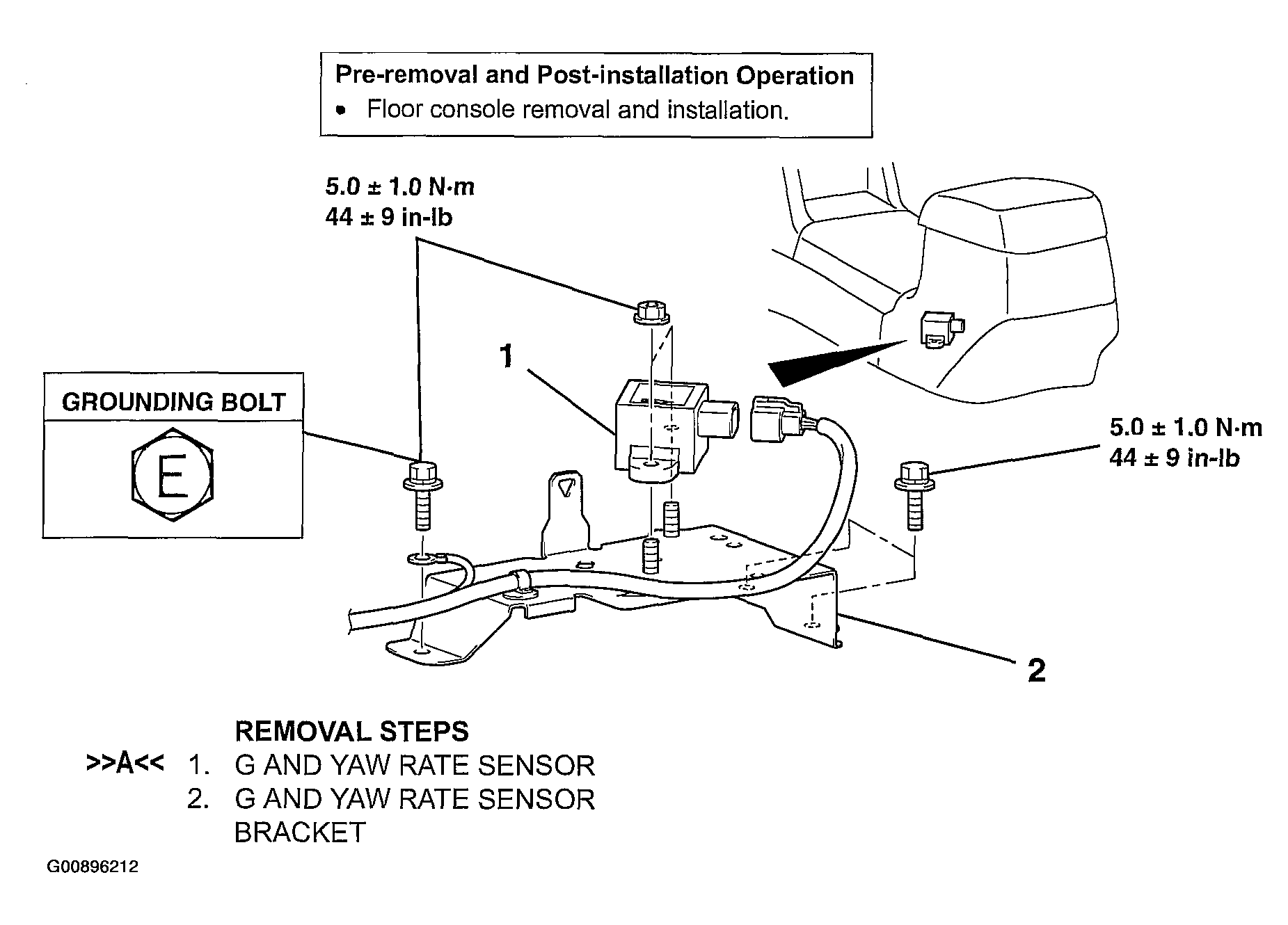

Fig 1: Identifying G And Yaw Rate Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
