Removal And Installation: Notes

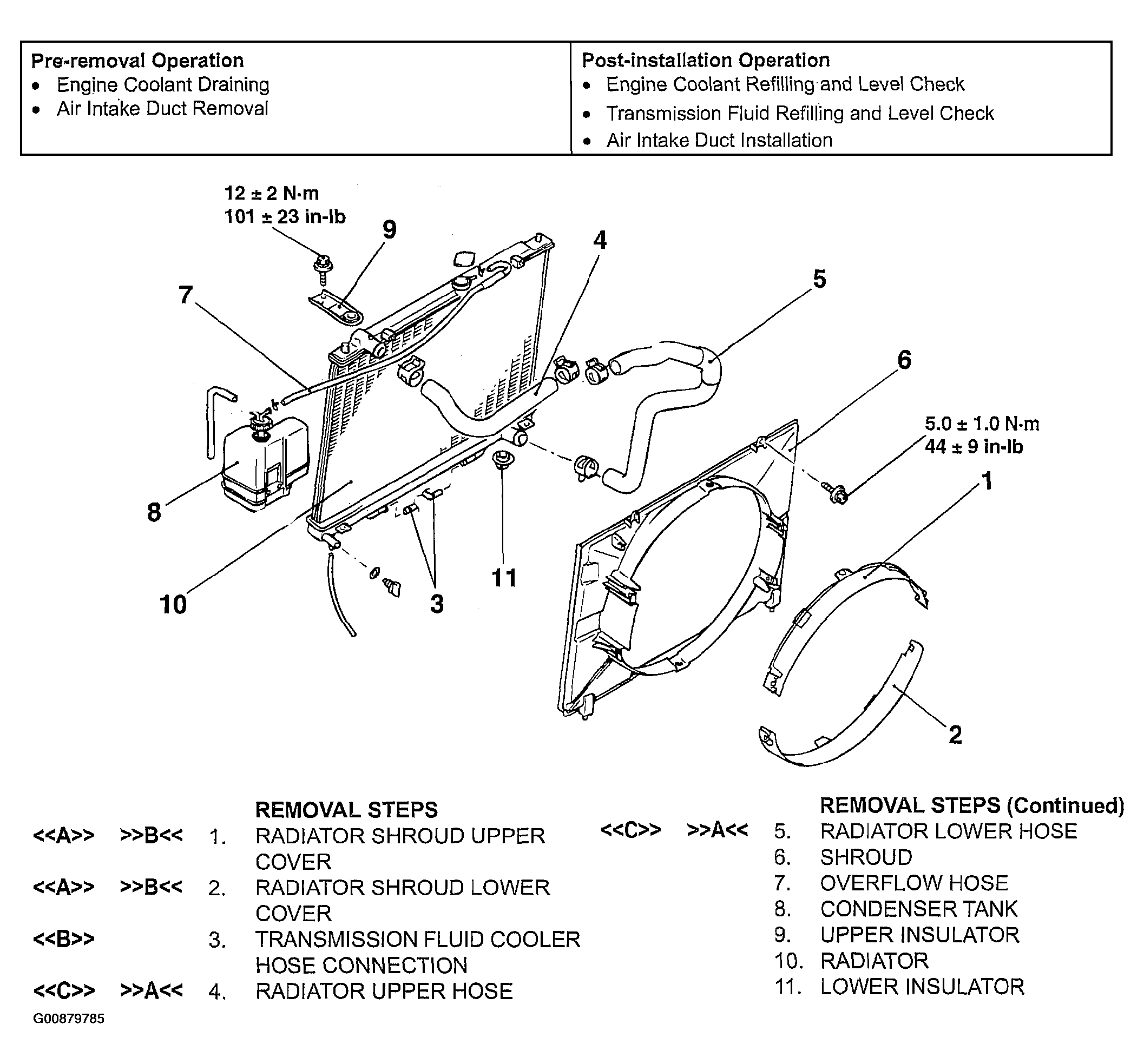

Fig 1: Exploded View Of Radiator Component

G00879785

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
