Removal And Installation: Notes

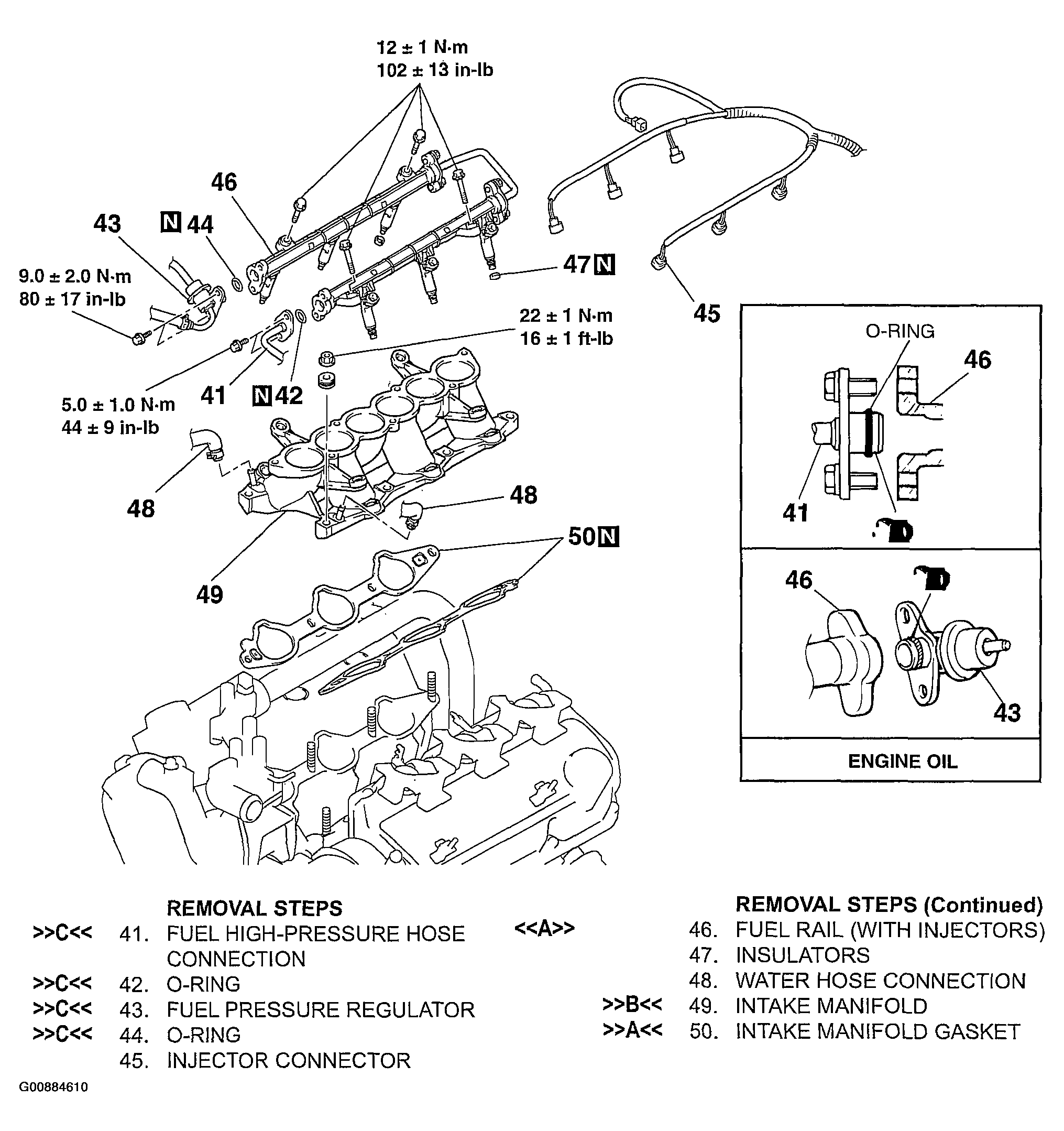

Fig 1: Identifying Intake Manifold Component (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Intake Manifold Component (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Intake Manifold Component (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
