Repair and Diagnosis
›
Steering
›
Power Steering
›
Power Steering Hoses
›
Removal And Installation
›
Notes
Removal And Installation: Notes

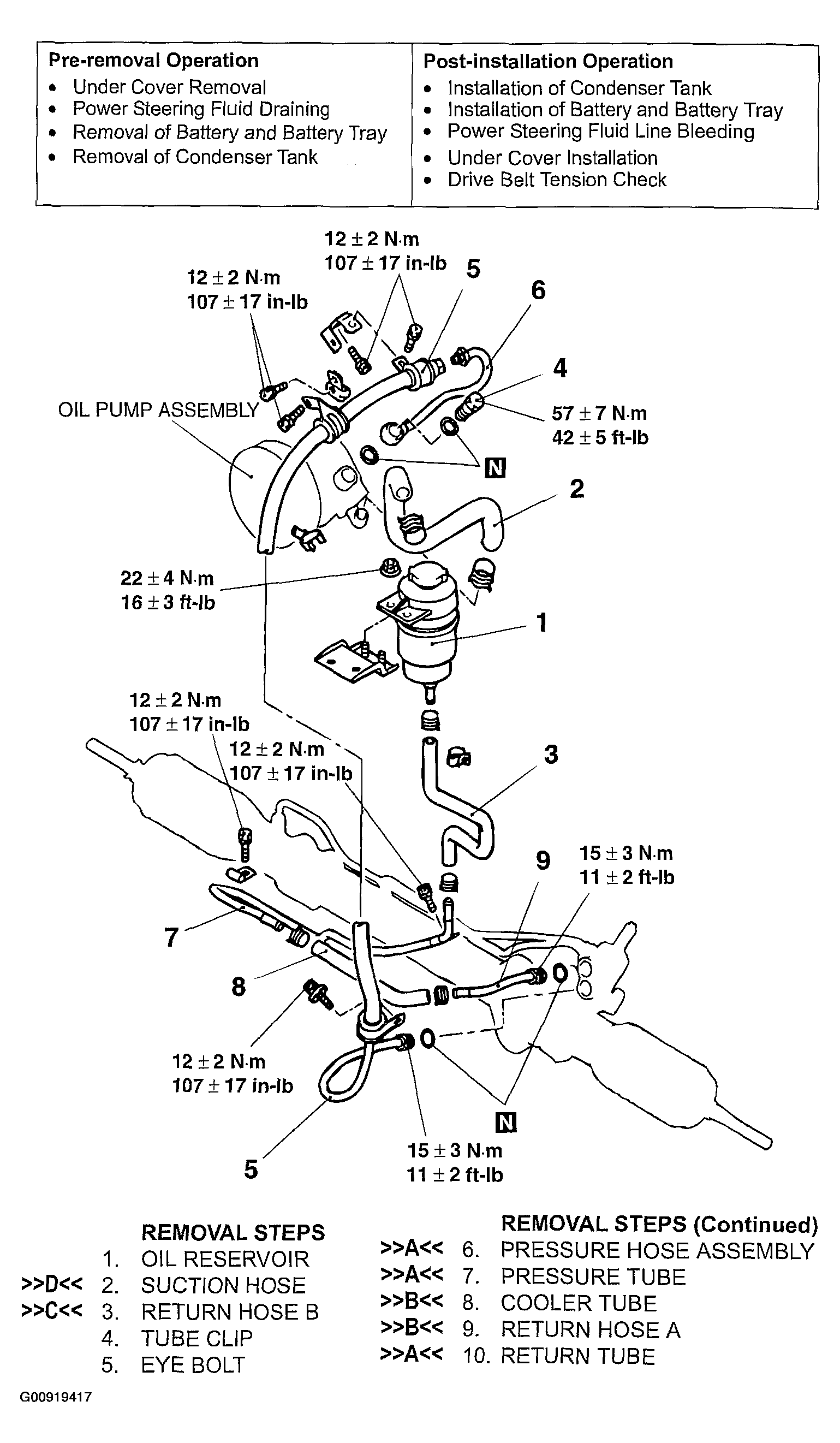

Fig 1: Exploded View Of Power Steering Hoses
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
